1 IN 4 OUT HDMI 4K SPLITTER BOX

1 IN 4 OUT HDMI 4K SPLITTER BOX  - 1IN4OUTHDMI

This 1x4HDMI Splitter use a Single HDMI Source, Accessing to Multiple HDMI Sinks .

It Allows one HDMI Device to be Split Easily to Four HDMI Compatible Monitors or Projectors. In Addition

It Can also be Placed at the End of a Long HDMI Cable to Regenerate the HDMI Signal.

The Resolution of this HDMI Splitter can be up to 3840X2160/30HZ.

Features :

Support HDMI 1.4b Version

Support 3D Video format

Support High Resolution up to 3840X2160/30HZ

Support Highest rate of 3.2 G and TMDS clock can be up to 320 MHz

Support 8/10/12 bit Deep Color

Support AWG26 HDMI Standard Cable: Input up to 15 Meters, Output up to 25 Meters.

(When the Resolution is 4K, Input up to 12 Meters, Output Up to 15 Meters.)

Support one Single HDMI Source

Accessing to Multiple HDMI Sinks, the Source can be DVD Player, A/V Receiver, set Top Box and etc.

5V/2A power adapter

Specifications:

HDMI Version:HDMI 1.4b

HDMI Resolution: up to 3840 x2160/30Hz

Support Video Format :8/10/12 bit deep color

Support Audio Format: DTS-HD/Dolby-true HD/DTS/Dolby-AC3/DSD

Max BandWidth:320MHz

Max Baud Rate:3.2Gbps

Input Cable Distance:(1080p Resolution) =15m,(4K Resolution)=12m AWG26 HDMI Standard Cable

Output Cable Distance:(1080p Resolution) =25m,(4K Resolution)=15m AWG26 HDMI Standard Cable

Max Working Current:500mA

Power Adapter Format:

Input AC: (50HZ, 60HZ) 100V-240V

Output: DC5V/2A

Operating Temperature Range: (-15 to +55?)

Dimension (L x W x H0:178x66x20 (mm)

Weight:220g

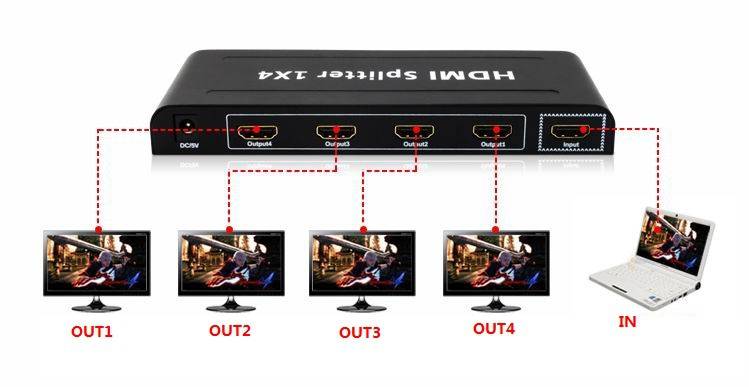

Connection and Operation:

Connect the HD Source to the Splitter Input with one HDMI Cable

Connect the Splitter Output to the Displays with 4 HDMI Cables

Connect 5V/2A Power Adapter to the Splitter

Package include :

HDMI Splitter

Power Adapter

User Manual
