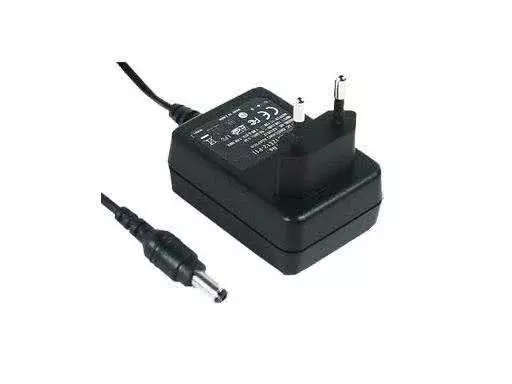

12 Volt, 2A AC/DC PSU | Power Supply for Router, External Hard Drive Enclosures or CCTV Cameras

12 Volt, 2A AC/DC PSU | Power Supply for Router, External Hard Drive Enclosures or CCTV Cameras

Please check diameter on DC input on device and compare with adapter specs below. 12 Volt is normally used on Internet Routers, Access Points, External Solid State or Hard Drive Enclosures

SPECIAL FEATURES

• Universal AC input
• Low output ripple
• Short circuit protection
• High efficiency
• Built-in EMI filter
• Over load protection

INPUT

• Input range : 85 ~ 264 VAC
• Input frequency : 47 ~ 63 Hz
• Inrush current : 15A at 115VAC; 30A at 230VAC; cold start at 25
• Input current : 1.5A Max
• Leakage current : 0.5 mA at 50/60 Hz 264VAC input

OUTPUT

• Rated output power : 24 Watts
• DC Connector : 5.5mm OD & 2.1mm ID (Check DC Input size same on device but most 12 Volt devices uses this diameter on DC Power connector)
• Output voltage : 12V± 4%
• Output current : 2A
• Output load efficiency 80% at 100VAC full load; 80% at 264VAC full load
• Max power : 24 Watts for convection
• Adjustment range fixed
• Hold-up time 30 ms at full load and 230 VAC nominal line
• OL protection 96% to 104% above peak rating
• Ripple & noise 200mV at rated load
• Short current 100mA at 250 VAC rated load

ISOLATION

• Input to output AC3.0 KV/1 min.
• SAFETY APPROVAL
• UL CCC CE

ENVIRONMENTAL

• Operating temp : 0 to 50 ambient derate each output at 4.0% per degree from 50 to 60
• Storage temp. - 40 to 85
• Operating humidity 5% to 95% (non-condensing)
• MTBF 100,000 hours at full load and 25 ambient conditions (demonstrated)
