12V to MicroUSB Converter 5V 3A | DC-DC suitable for Gates

DC to DC converter from 12V DC to 5v DC via a Micro USB cable.

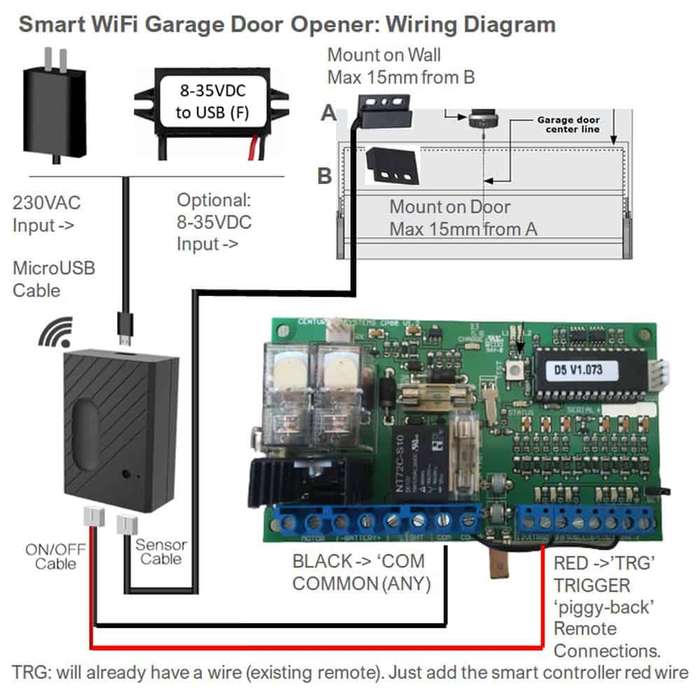

This unit is recommended to Power our 'Smart Gate Garage Door Opener Switch' via the 5V micro USB port. This option provides 'backup during loadshedding' due to the fact it connects to your garage doors batteries (as opposed to 230V mains).

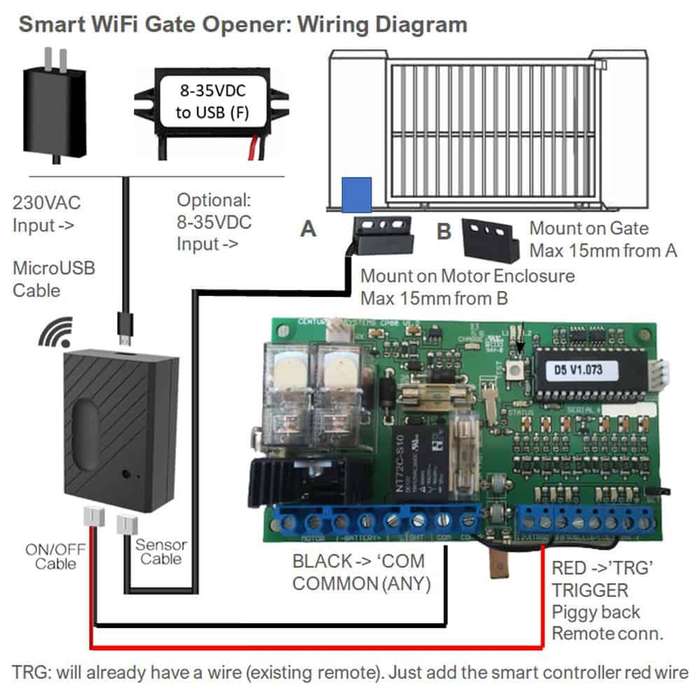

Connect to the 12V DC available on the Gate control board.

Note: Gate motors normally need 12V DC check your control board model to check if it has 12 or 24V DC outputs.

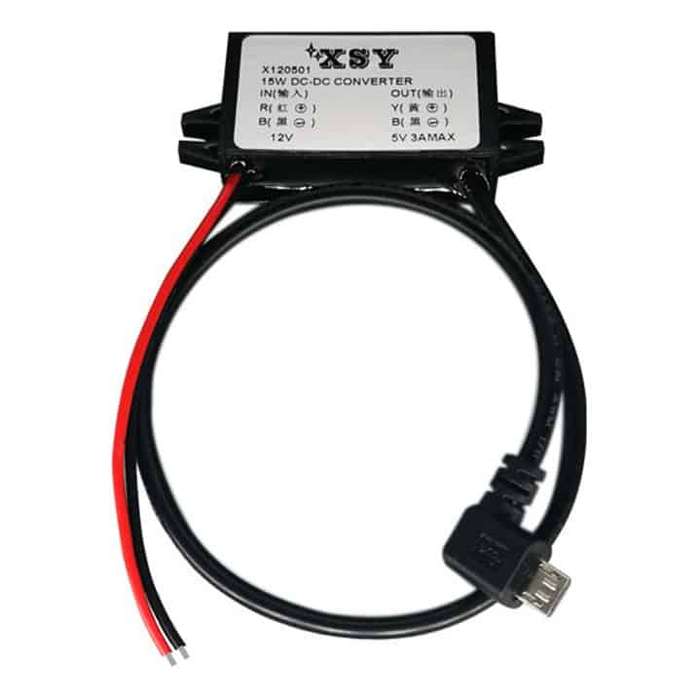

12VDC to 5VDC via MicroUSB male connector with an enclosed splashproof housing
Input Voltage: 12V DC (via red=positive, black=negative, leads)
Output Voltage : 5V (Volts) via lead with USB female
Output Current: 3A (Amperes)
Output Power:15W (Watts)
Efficiency 97%
Voltage regulation rate: Operating temperature: -20 to +80 (degrees Celsius)
Dimensions Housing: L 63mm x W 27mm x H 14mm

When using our Smart Gate Garage Door Opener Switch check if you have a 12Vfor:

1. Garage Door Motors : normally have 24V DC (could be 1x 24V or 12V batteries) - for 24V version [click here].
2. Gate Motors: normally have 12VDC but please check first - 12V to 5V MicroUSB - this unit you are viewing now.
3. Note for example the new Centurion D5 EVO Smart Gate Motor is 24V = 2x 12V batteries

What's in the box?
1 x 12V to USB Converter
