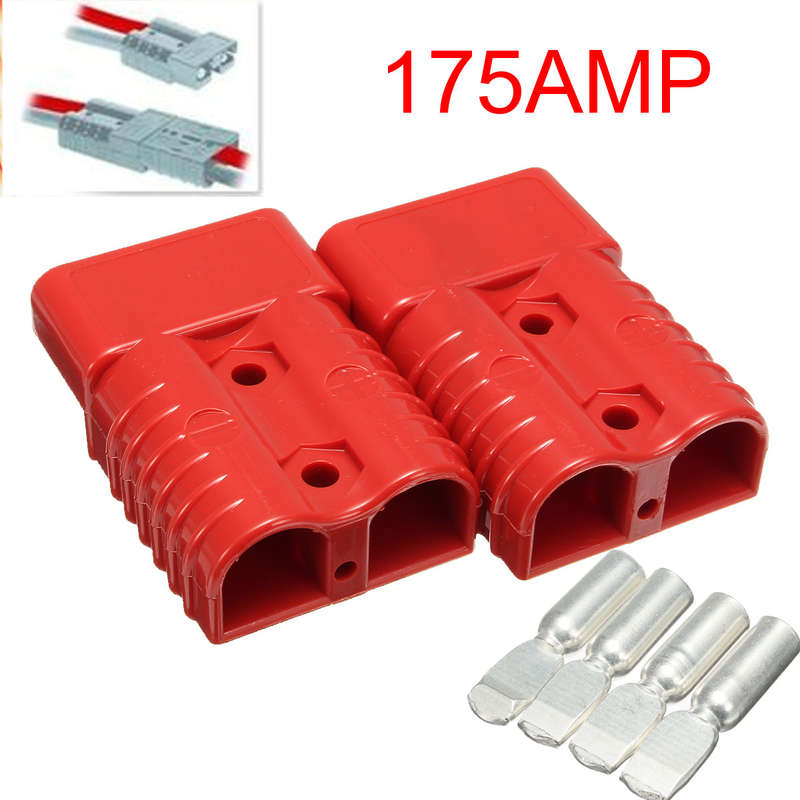

175 AMP Battery Connector Jump Start Slave Assist Pair RED

Description:
Color: Red
Housing Material: Nylon
Contact material: Pure copper silver plating
Current: 175 amps
Voltage: 600 Volts (Max)
Suitable for cables up to 25mm2 (4 AWG)
Terminals can either be crimped or soldered to the cables
Housing dimensions: 79 x55 mm

Features:

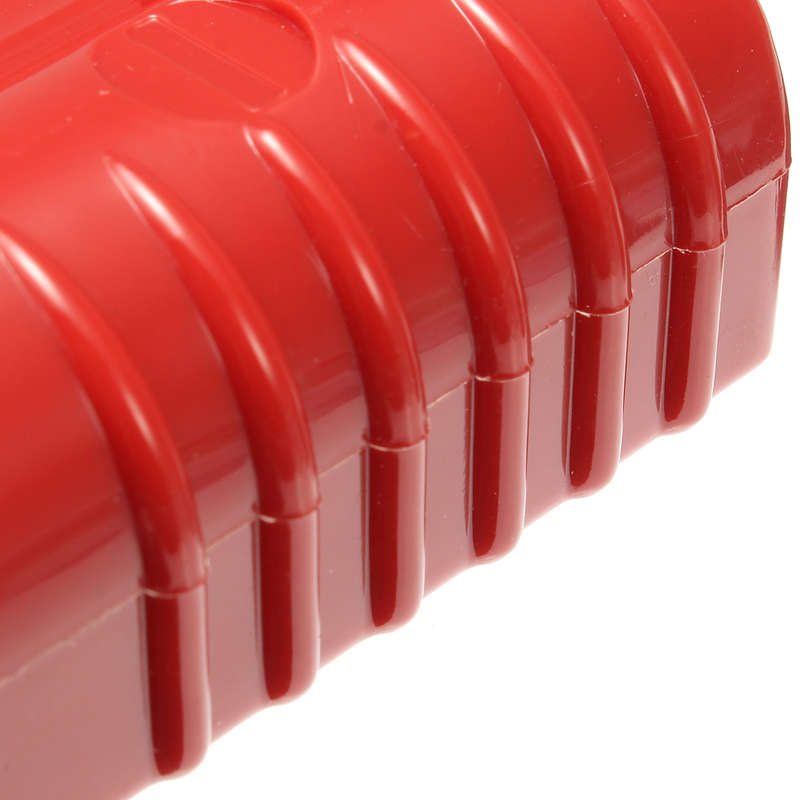

a Light and durable nylon housing.

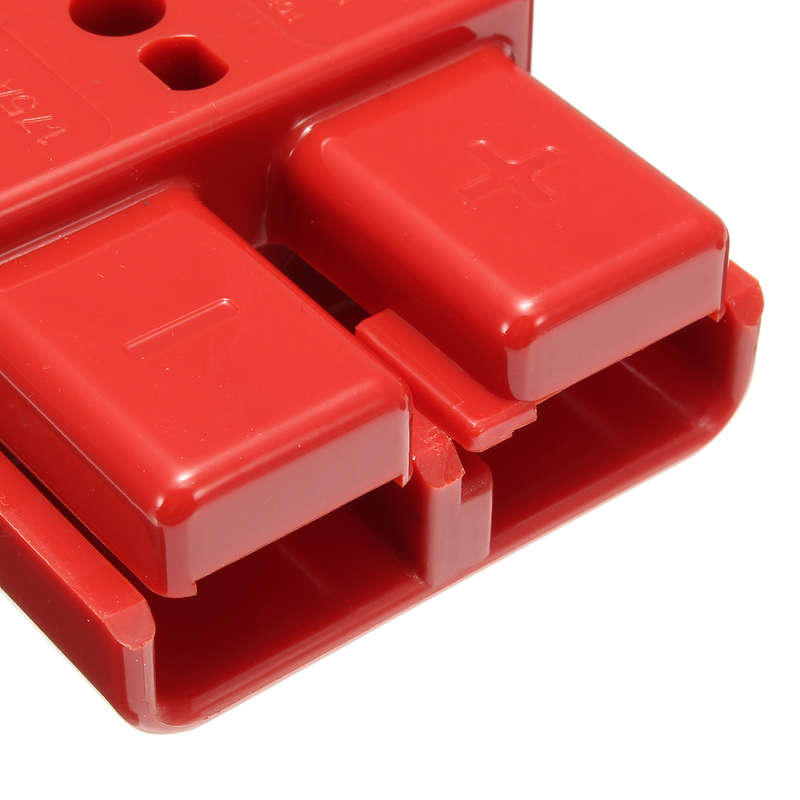

a Mechanical keyed housings - prevents accidental mating of components operating at different voltage levels.
a Single-piece housing and unitized construction - provides industrial quality and durability.
a Genderless design - makes assembly quick and easy and reduces number of parts stocked.
a Flat wiping contact system - Allows for minimal contact resistance at high current, wiping action cleans contact surface during disconnection.
a Silver plated contacts - offers greater longevity when using high power, elevated temperature applications.

Applications:
Jump starting or Slave/Auxiliary batteries - Motorsports, Forklift trucks, Mobility scooters, Motorcycles, Winches, UPS systems, Telecommunication, Wheelchairs, Electric Vehicles, Power Electronics, etc

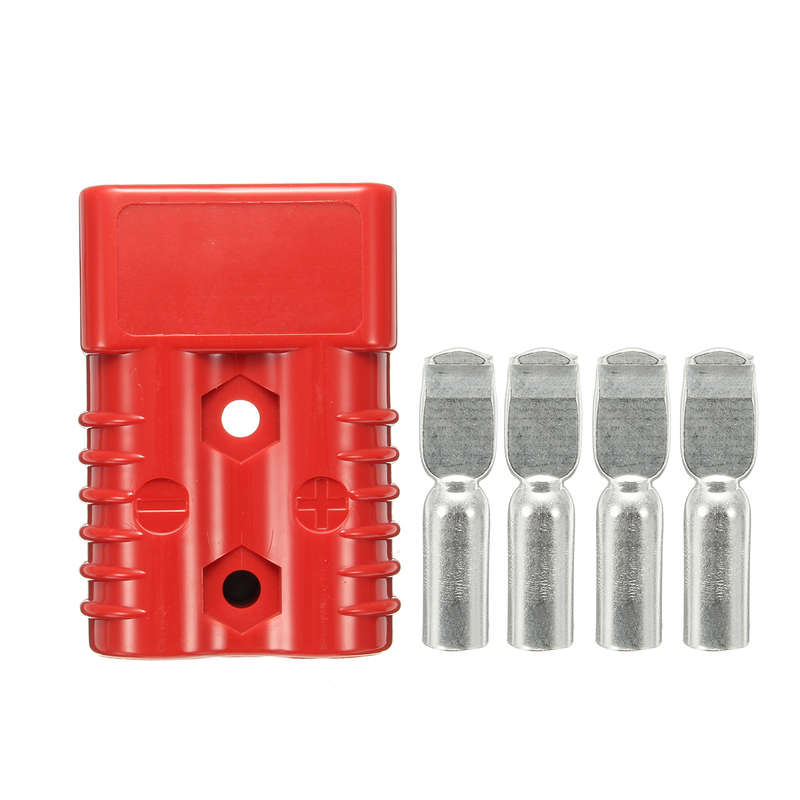

Package Included:
2 x Plugs

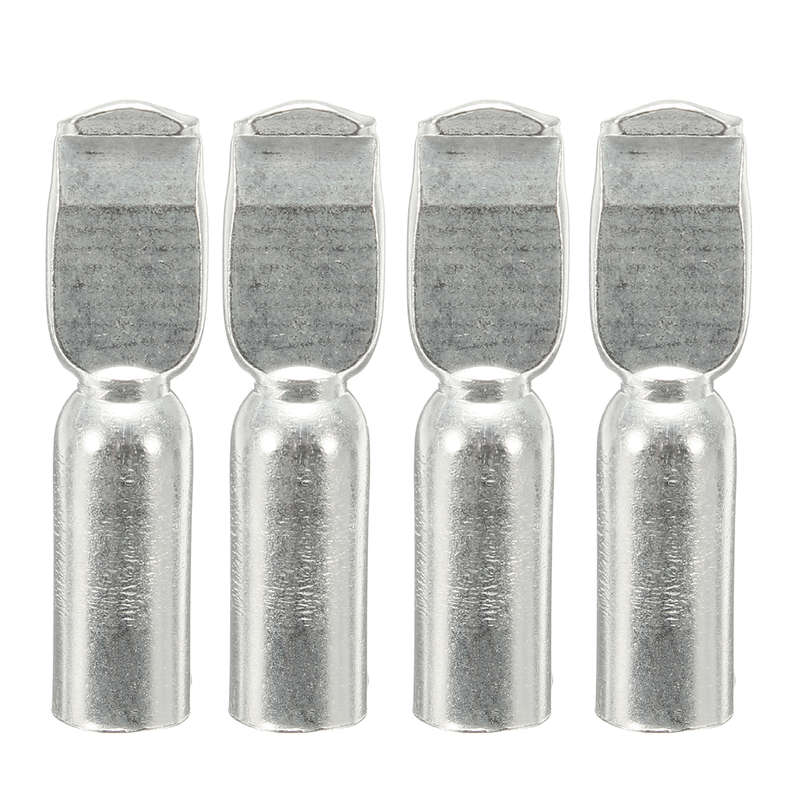

4 x Terminals
