Name: 220V AC 5-80Amp Single-Phase Mini Electricity Meter
SKU: 7204622223
Price: 195.00 ZAR
Availability: InStock

220V AC 5-80Amp Single-Phase Mini Electricity Meter

1 available / new

Shipping

Standard courier shipping from R30

R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate

Ready to ship in

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Get it now, pay later

Condition

New

Location

South Africa

Product code

7204622223

Bob Shop ID

619155701

220V Single-Phase Mini Electricity Meter - High-Resolution LCD Display, Accurate Watt Hour Measurement, Rail Type Installation, Intelligent Digital Display - Ideal for Household Energy Management and Air Conditioning Monitoring

Monitor your household energy consumption and air conditioning usage with the 220V Single-Phase Mini Electricity Meter. Featuring a high-resolution LCD display, accurate watt hour measurement, and intelligent digital display, this meter is easy to install on a rail type system. Stay informed and in control of your energy usage with this efficient and effective device.

USER MANUAL

Product features:

1. Using microelectronics and digital processing technology to measure electric energy, accurate and reliable.

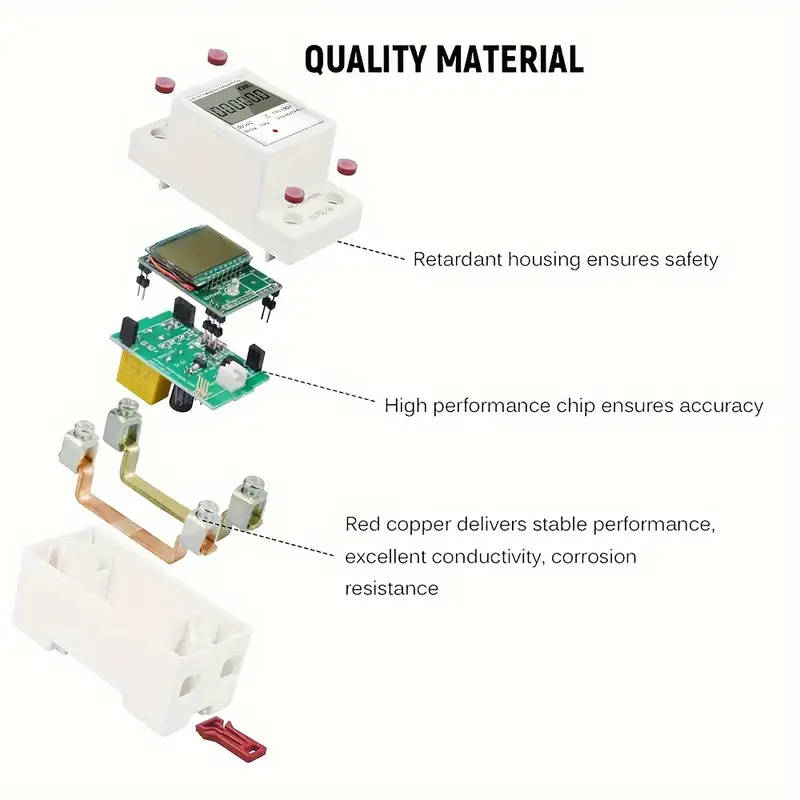

2. The internal integrated circuit is manufactured by precision SMT technology, which has good anti electromagnetic interference performance and stable performance.

3. The electric energy meter can measure the positive active electric energy in the electric energy and clearly display it through the LCD backlight screen.

4. Cycle display voltage, current, power and electric energy kwh.

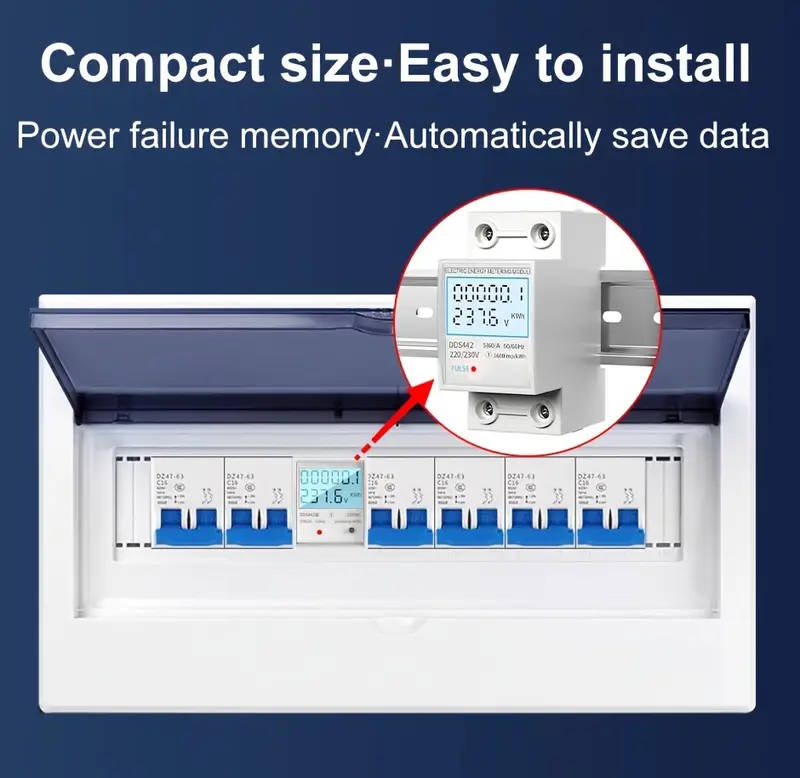

5. Small volume, light weight, 35mm DIN rail installation.

6. Low power consumption, high precision, high overload and anti electric theft.

Rated voltage: 220-230V AC

Rated current: 5-60a

Load capacity: 0.05ib IMAX (direct access type) or 0.02ib IMAX (access through transformer)

Data display: LCD

Power supply indication: green light

Electric energy pulse indication: red light (lit for about 80ms when there is a sampling signal)

Installation method: 35mm DIN rail

Working environment: - 25 ~ 55 , 95% RH

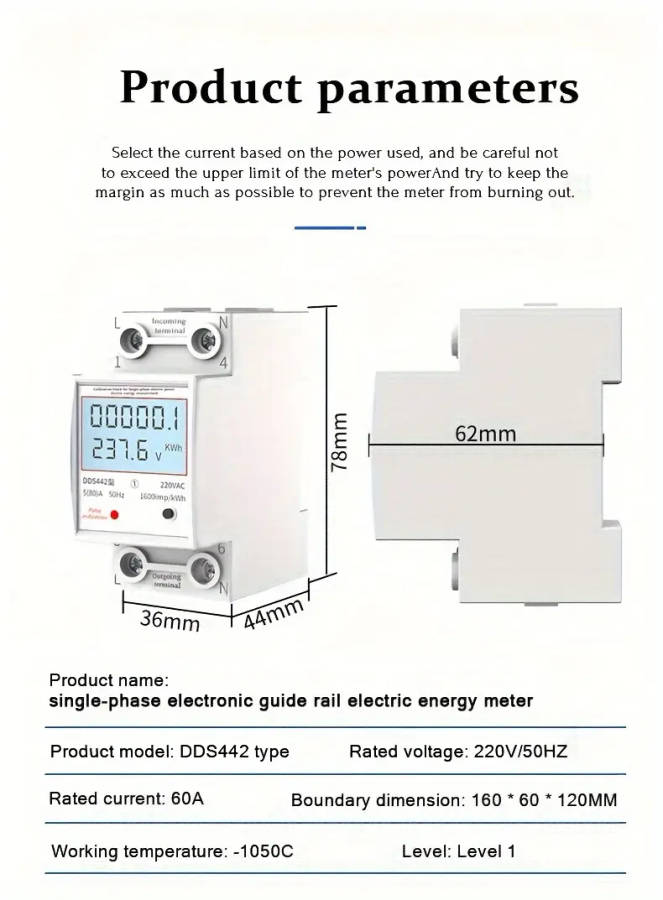

Size: 78.5 * 36.5mm
