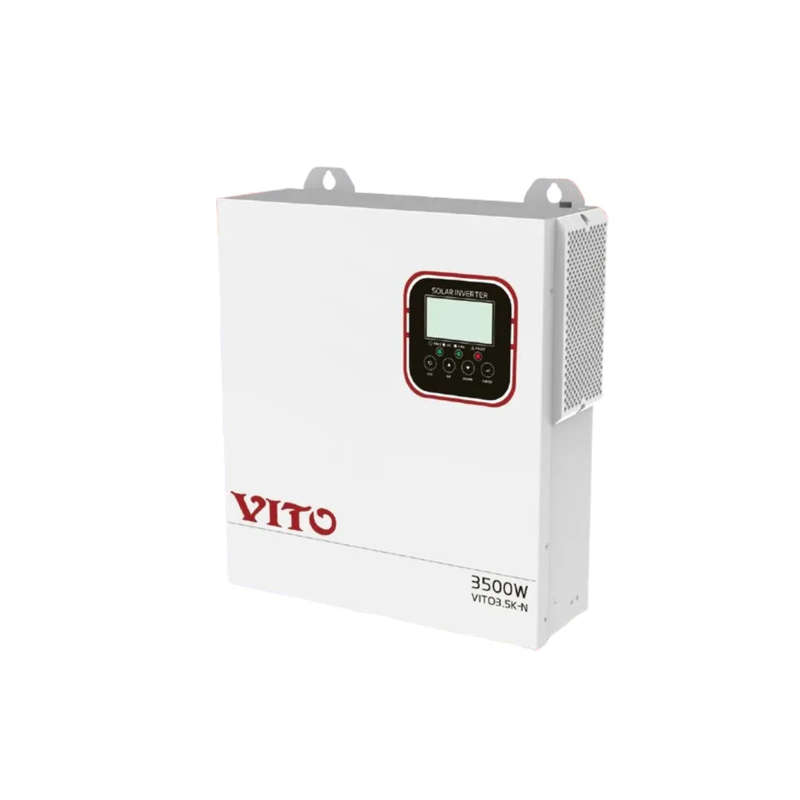

3.5KVA / 3500W VITO Pure Sine Wave MPPT Hybrid Inverter 24V

Advanced 3.5kVA Hybrid Inverter for Professional Solar Installations

The VITO SH3.5K24 is a compact, high-efficiency inverter engineered for dependable backup power, standalone solar systems, and hybrid energy setups. It integrates three essential functionspure sine wave inversion, 100A MPPT solar charging, and smart battery managementinto one all-in-one solution.

Designed to support diverse photovoltaic configurations, it accommodates a maximum PV input of 500V with an MPPT operating range of 30500V, ensuring optimal solar harvesting. With its configurable LCD display and built-in EQ feature for battery performance tuning, it provides fine-tuned control ideal for complex energy environments.

Key Features:

• Pure sine wave output ensures stable, clean power delivery

• Integrated 100A MPPT controller supports up to 500Vdc solar input

• Supports multiple output modes: UTL, SOL, SBU, SUB for system flexibility

• EQ charging mode helps extend battery life and improve efficiency

• Compatible with solar arrays up to 4000W total capacity

• Optional Wi-Fi monitoring via RJ45 interface

• Detachable dust cover provides added protection in tough environments

Battery & Charging:

• Rated Battery Voltage: 24V

• Charging Method: Constant Current / Constant Voltage (CC/CV)

• Floating Charge Voltage: 27V

• Overcharge Protection Threshold: 28.2V

• Max AC Charging Current: 60A

• Combined Max Charging Current (AC + PV): 100A

Technical Specifications:

• PV Input Voltage Range: 30500Vdc

• Max Open Circuit PV Voltage: 500V

• Maximum PV Array Power: 4000W

• Physical Dimensions: 330 x 278 x 98 mm

• Package Dimensions: 400 x 365 x 174 mm

• Net Weight: 4.4kg

• Communication Interface: RJ45 port (Wi-Fi module optional)

Warranty & Compliance:

This unit comes with a 2-year repair warranty. Installation must be carried out by a qualified electrical wireman or master electrician and must comply with all applicable standards under SANS 10142. All warranty claims require a valid Certificate of Compliance (COC), installer credentials, and photographic documentation of the installation.
