37567 EVE 4-16X44Pi (MRAD-G4A12)
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details

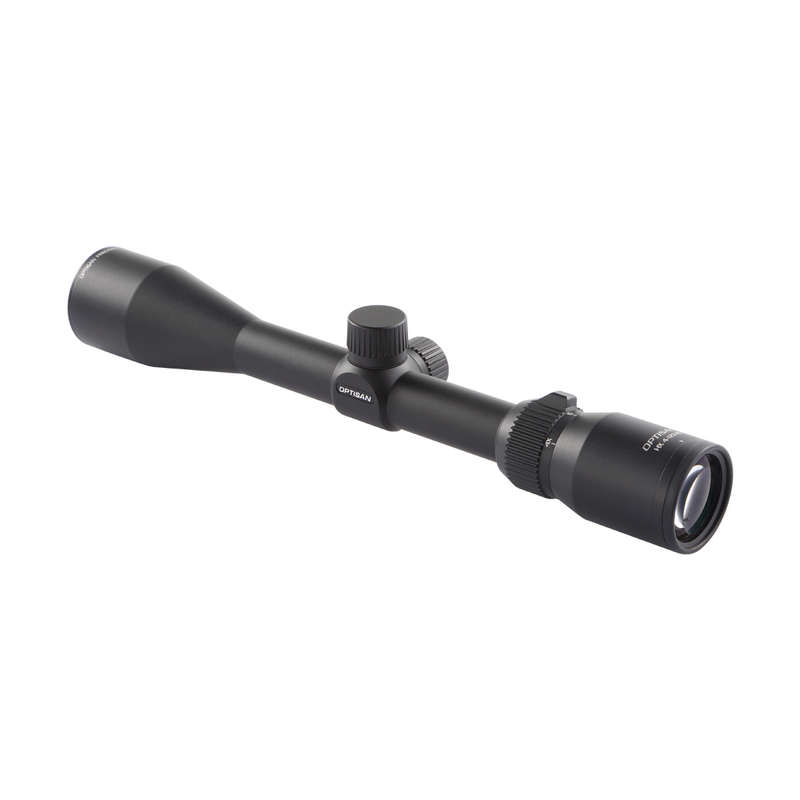

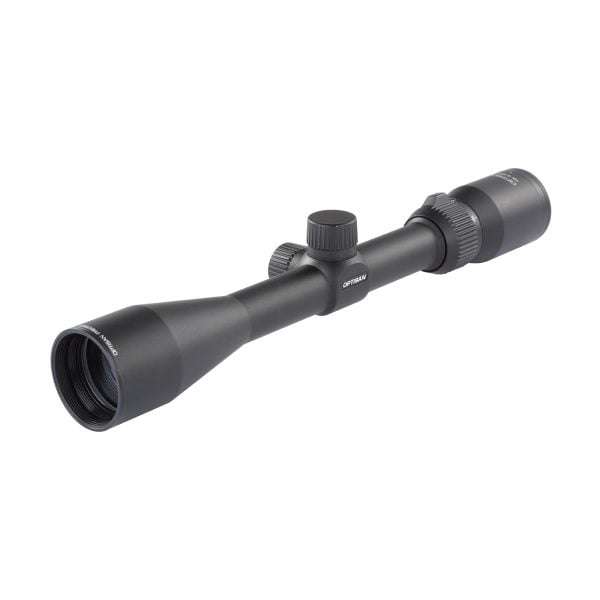

The EVE line from Optisan is designed and engineered with rugged precision for hunters to take on every challenge.
For those who just want a simple clean German No.4 reticle with the minimal target block possible, reticle MIL-G4A is the one to go for.
OPTICAL DATA | |||
Magnification (High) | 16X | ||
Magnification (Low) | 4X | ||
Objective Diameter (mm) | 44mm | ||
Outer dia. Objective (mm) | 53mm | ||
FOV (min.mag - max.mag) (ft@100yds) | 27.2ft - 6.8ft | ||
FOV (min.mag - max.mag) (m@100m) | 9.06 mm - 2.26mm |
|
|
FOV (min.mag - max.mag) (degree) | 5.18 - 1.3 | ||
Eye relief (min.mag - max.mag) (in) | 3.8'' - 3.5'' | ||
Eye relief (min.mag - max.mag) (mm) | 96.52mm - 88.9mm |
|
|
Exit Pupil (min.mag - max.mag) (mm) | 11mm - 2.75mm | ||
Diopter Range (dpt) | +/- 2.0 dpt | ||
Parallax Adjustment | 10 yds - infinity | ||
Coating | Fully multi-coated | ||
MECHANICAL DATA | |||
Tube Construction | One-piece tube, aircraft aluminum | One-piece tube, aircraft aluminum | One-piece tube, aircraft aluminum |
Elevation Adjustment (value per click) | 0.1 MRAD | 0.1 MRAD | 0.1 MRAD |
