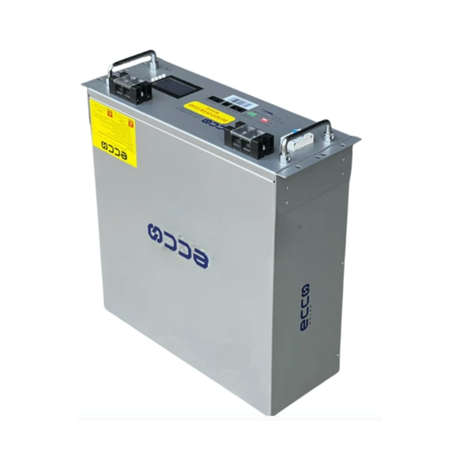

5.12kWh Ecco 51.2V 100AH Lithium Battery LifePo4 (Rack Mount)

ECCO 5.12kWh 51.2V 100Ah LiFePO4 Rack-Mounted Lithium Battery Scalable Energy Storage

Description:

The ECCO 5.12kWh 51.2V 100Ah LiFePO4 Battery is a high-performance, rack-mounted energy storage solution designed for solar, backup power, and off-grid applications. Featuring advanced Lithium Iron Phosphate (LiFePO4) technology, this battery delivers long-lasting efficiency, enhanced safety, and seamless scalability, making it an ideal replacement for traditional lead-acid batteries.

Key Features:

• High-Capacity Storage: 5.12kWh energy output with 100Ah rated capacity for reliable power.
• Rack-Mount & Wall-Mount Compatible: Designed for easy installation in 19-inch standard cabinets or as a wall-mounted unit.
• Longer Lifespan: Provides over 3,500 cycles at 100% Depth of Discharge (DoD), with a design life of 20+ years.
• Advanced Battery Management System (BMS):
  • Built-in protection against overcharging, over-discharging, and overheating.
  • Supports intra-system balancing for optimized battery health.
• Lightweight & Compact: Approximately 40% lighter than comparable lead-acid batteries.
• High Efficiency:
  • Low self-discharge rate, with up to 2 years of storage before recharging is needed.
  • Twice the power output of a lead-acid battery while maintaining high energy capacity.
• Wide Operating Temperature Range: Functions in extreme conditions from -20°C to 60°C.
• Enhanced Safety Features: Flame-retardant casing meets UL94V-0 standards, and LiFePO4 chemistry minimizes explosion and combustion risks.
• Parallel Expandability: Supports up to 15 parallel connections for scalable energy storage solutions.
• Compatible Charging: Can be used with most standard VRLA chargers.

Technical Specifications:

• Battery Type: Lithium Iron Phosphate (LiFePO4)
• Nominal Voltage: 51.2V
• Rated Capacity: 100Ah
• Max Charging Current: 100A
• Max Continuous Discharge Current: 100A
• Charging Voltage: 57.6V
• Discharge Cut-Off Voltage: 43.2V
• Cycle Life: 3,500+ cycles at 100% DoD
• Communication Protocols: CANBUS / MODBUS
• Enclosure Protection Rating: IP31
• Dimensions: 442mm x 431mm x 177mm
• Weight: Approx. 43kg

What's in the Box?

• 1 x ECCO 5.12kWh 51.2V 100Ah Lithium Iron Phosphate Battery
• Battery Cables Included

Warranty & Installation Requirements:

• 5-Year Warranty included.
• Installation must be performed by a qualified electrical wireman or master electrician registered with the Department of Labour.
• A valid Certificate of Compliance (COC) must be issued upon installation to ensure compliance with SANS 10142 standards.
• Warranty claims must include installation photos, a valid COC, and proof of installation by a certified professional. Failure to comply may result in a voided warranty
