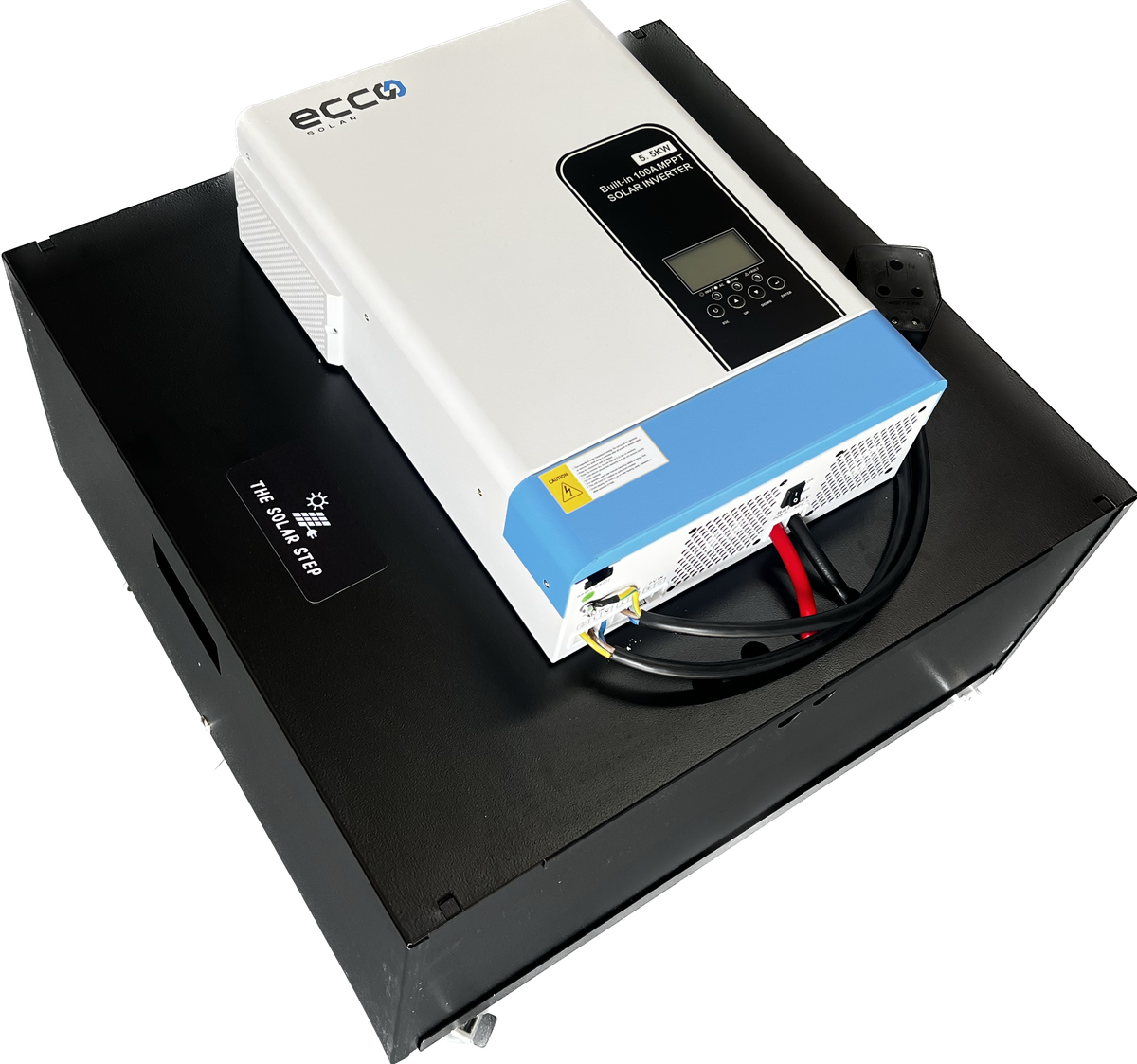

 5.5KVA / 5500W 48V ECCO Hybrid Inverter Plug & Play System + 5.12kWh ECCO Lithium Battery (SOLAR READY)

Description:

The all-in-one portable hybrid inverter and lithium battery system provides reliable power backup during load shedding. Designed for residential and commercial use, this heavy-duty power solution includes a 5.5kW pure sine wave inverter and a 51.2V 100Ah lithium battery for high efficiency and long-term energy storage.

With solar-ready compatibility, users can integrate solar panels for extended off-grid operation, making it a versatile and future-proof power solution. The wall-mounted battery design ensures space efficiency and easy installation.

Key Features:

Seamless Power Backup

• Instant transfer to battery power during load shedding
• Auto-recharges when grid power is restored
• Powers essential appliances (Wi-Fi, TVs, lights, computers) for extended backup time
• Solar-ready: Compatible with solar panels for off-grid energy independence

Hybrid Inverter (5.5kVA / 5500W)

• Pure sine wave output for stable and efficient power
• Output Power Factor 1 for optimized energy conversion
• High PV Input Voltage Range: 120VDC - 500VDC
• Built-in MPPT solar charge controller (100A) for enhanced solar performance
• Supports multiple output priorities (UTL, SOL, SBU, SUB)
• Parallel operation with up to 12 units (single-phase/three-phase)
• Wireless parallel operation (no extra sharing cable needed)
• Wi-Fi monitoring & RS485 communication for BMS
• Battery equalization function to extend battery life

ECCO 51.2V 100Ah Lithium-Ion Battery (5.12kWh) Wall-Mounted

• Wall-mounted, space-saving design
• Long cycle life: Up to 20x longer than lead-acid
• Lightweight: ~40% lighter than comparable lead-acid batteries
• High power output: Delivers 2x the power of lead-acid batteries
• Wider temperature range: Operates from -20°C to 60°C
• Advanced safety: No risk of explosion, overheating, or short circuits
• Supports up to 16 parallel connections for increased capacity
• Compliant with UL & EU TUV standards

Technical Specifications:

Inverter Mode:

• Rated Power: 5500VA / 5500W
• DC Input: 48VDC, 127A
• AC Output: 230V, 50/60Hz, 23.9A

AC Charger Mode:

• AC Input: 230V, 50/60Hz, 40A
• DC Output: 54VDC
• Max Charge Current (AC): 60A (default 30A)
• Max Charge Current (PV + AC): 100A
• AC Output: 230V, 50/60Hz, 23.9A

Solar Charge Mode:

• Max PV Array Power: 5500W
• MPPT Solar Voltage Range: 120VDC - 500VDC
• Max MPPT Charge Current: 100A

ECCO 51.2V 100Ah Lithium Battery Wall-Mounted

• Nominal Voltage: 51.2V
• Nominal Capacity: 100Ah
• Total Energy: 5.12kWh
• Operating Voltage Range: 43V - 54.5V
• Max Continuous Output Power: 5500W
• Max Momentary Output Power: 7500W
• Short Circuit Protection: Yes
• Overcharge Protection: 63VDC
• Communication Ports: RS485, RS232, CAN
• Design Life: 15 years
• Ingress Protection: IP54
• Dimensions: 480mm × 170mm × 500mm
• Weight: 49kg

System Components:

• 1x Heavy-Duty Portable Steel Box (Lockable Wheels & Handles)
• 1x Surge Plug (1m, 2.5mm cabtyre)
• 1x Double-Sided Female Plug Socket
• 1x Fuse + Disconnector (Battery to Inverter)
• 1x 5.5kW Hybrid Inverter
• 1x ECCO 51.2V 100Ah Lithium Battery (Wall-Mounted)

System Dimensions: 60cm x 60cm x 45cm
Total System Weight: Approx. 60kg

Battery Care & Maintenance

• Keep the system plugged in to maintain full battery charge
• Avoid deep discharges to extend battery lifespan
• Use solar charging to reduce grid reliance and increase backup time

Warranty & Installation Requirements

• 5-Year Warranty on Inverter & Battery
• Installation must be performed by a qualified electrical wireman or Master Electrician
• A valid Certificate of Compliance (COC) must be issued after installation
• System must be installed in compliance with SANS 10142 regulations
• Warranty claims require:
  • Installation photos
  • Valid COC certificate
  • Proof of installation by a qualified professional
