550W Mono The Sun Pays 10BB Solar Panel - 37 pcs pallet.

550W Mono The Sun Pays 10BB Solar Panel - 37 pcs pallet.

6 available / new
Indicative market price: R61,845.00
R60,846.50
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection

Product details

Condition
New
Location
South Africa
Product code
9611103502614_48799322898710
Bob Shop ID
635729111

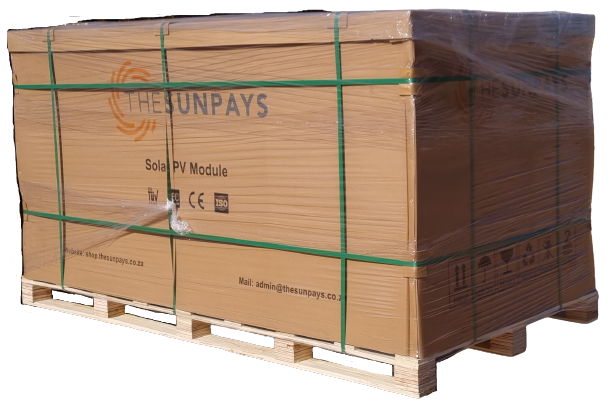

Pallet info:

37 x 550W Monocrystalline PV panel

Gross weight 1080KG

Pallet Size 2330 x 1290 x 1260mm

Collection at office only. No shipping or courier options available. Ensure the correct vehicle for collection.



Panel Specification highlights:

550W Monocrystalline PV panel.

10 Busbar design.

144 A-grade monocrystalline solar cells.

With a 12-year product warranty and a 30-year design life warranty.

Certifications include: German (TUV) certified, IEC61215, IEC 62716, IEC61701, IEC61730, IEC62804, and CE

ISO 9001:2015, ISO14001:2015, ISO45001:2018



Panel Electrical specifications @ STC:

Module efficiency: 21.3%

Maximum power (Pmax): 550W

Maximum power voltage (Vmp): 41.96V

Maximum power current (Imp): 13.11A

Open circuit voltage (Voc): 49.9V

Short circuit current (Isc): 14A

Maximum system voltage: 1500VDC (IEC)

Maximum series fuse rating: 25A



Panel Mechanical specifications:

Cell size: 182 x 91mm

Cell type: A-grade monocrystalline solar cell

Number of cells: 144(6 x 24)

Weight: 28.6KG

Dimensions: 2279 x 1134 x 30mm

Max load: 5400 Pascal

Wind load: 2400 Pascal

Junction box: IP68 rated, 3 Diodes

Connector: MC4

Cables: Photovoltaic technology cable 4.0 mm2, 300mm length

Max series fuse rating : 25A

Warranty:

Product warranty: 12 years

Design life warranty: 30 years

Efficiency warranty: 88% in 12 years, 80% in 30 years**

**Take note that initial (0-year) output is based on the maximum drop of 70W due to defects.

Specifications:
