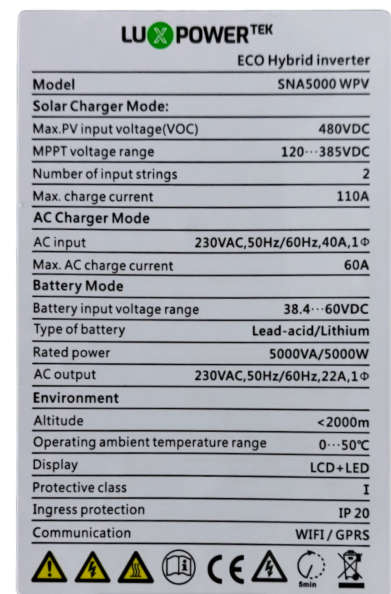

Model: SNA 5000 WPV
Battery voltage: 48VDC.
Inverter Output
Waveform: Pure Sine-Wave.
Rated Power: 5000VA/5000W.
Parallel Capability: Yes, 9 units.
AC Voltage Regulation (Battery Mode): 230VAC ± 5% @ 50/60Hz.
Surge Power: 10000VA.
Efficiency (Peak): 93%.
Transfer Time: 10 ms (For Personal Computers); 20 ms (For Home Appliances).
Solar Charger
Maximum PV Array Power: 6000W.
2 MPPT Controllers
MPPT Range @ Operating Voltage: 100VDC ~385 VDC.
Maximum PV Array Open Circuit Voltage: 480VDC.
Maximum Efficiency: 98%.
Maximum Solar Charge Current: 100A.
AC Charger
Charge Current: 60A.
AC Input Voltage: 230 VAC.
Selectable Voltage Range: 110-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances).
Frequency Range: 50Hz/60Hz (Auto sensing)
Build in BMS(Battery management System)
BMS Compatible with
Pylon
Dyness
BYD
Shoto
Revov
UZ Energy
Wifi Remote Monitoring
Flexible Working Modes with settable charge an dload power supply priority
Support Solar and AC take the load jointly
What's in the box

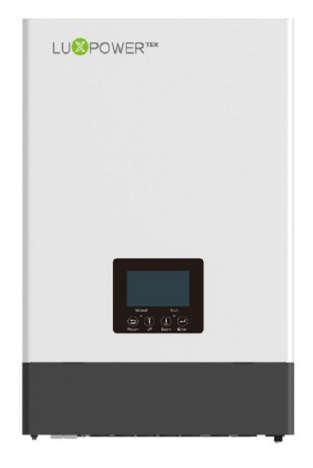

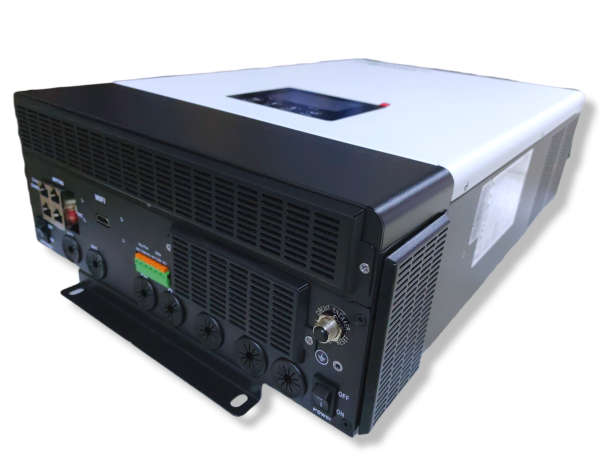

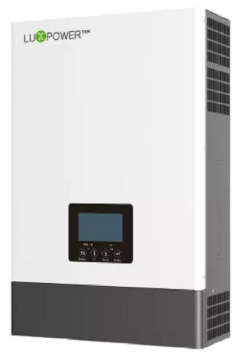

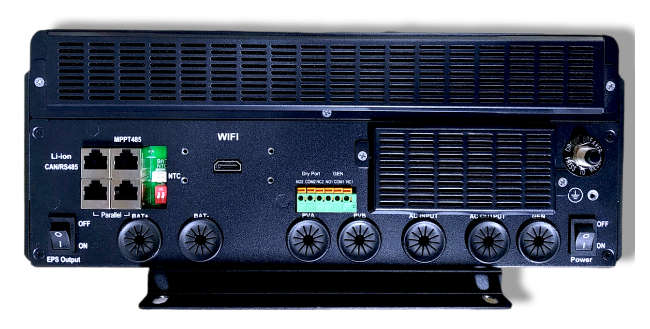

1 x Luxpower SNA5000 WPV 5KW 48V Eco Hybrid Inverter
1 x user manual
1 x Wi-Fi 4G dongle and manual
5 x Cross Head screw
4 x Expansion Screw and tube
2 x Nut
Warranty: 5 Years Repair Warranty
Warranty Condition:
A certified electrical wireman or master electrician with a current Department of Labor registration is required to install all inverters and batteries. Once installed, a current electrical certificate of compliance (COC) for the installation of the solar or backup system is required. The installation needs to adhere to SANS 10142 in its entirety. If a warranty claim is filed without installation images, a current COC, and documentation that the item was installed by a licensed wireman or master electrician, it may be denied and become void.
