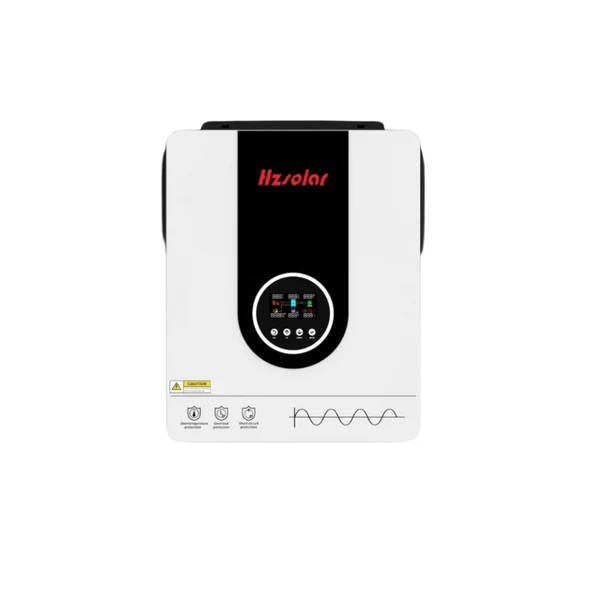

6.2KVA HZ Solar Pure Sine Wave Hybrid Inverter MPPT

GridSolutions 6.5kW Hybrid Inverter | 120A MPPT | Dual Load | 500V PV Input

Description:
Advanced Power Management for Commercial & Large-Scale Residential Systems

Engineered for high-demand applications, the GridSolutions HZ SOLAR 6.5kW Hybrid Inverter is built to deliver reliable, efficient, and scalable energy performance. Designed for seamless integration into complex solar energy systems, it supports dual load outputs and high-capacity MPPT tracking ensuring optimal energy conversion even under heavy loads.

Key Features:

• High Solar Input Capacity: Handles up to 6500W PV input with 120A solar charger current.

• Smart MPPT Range: Full load MPPT operation from 240450VDC for peak solar performance.

• Dual Load Output: Supports main (6200W) and secondary (2066W) loads for prioritized energy routing.

• Heavy-Duty Performance: Up to 12400VA surge power to handle start-up spikes.

• Robust Grid Compatibility: Works across 220/230/240VAC outputs and feeds into the grid with >0.99 power factor.

• High AC Charging Current: Supports up to 100A from grid input for fast battery recharging.

• Advanced Safety: Includes built-in protection systems, surge resilience, and Class 1 grounding compliance.

Specifications:

• PV Voltage Range: 60450VDC (Max 500VDC)

• Nominal PV Voltage: 240VDC

• Max PV Input Current: 22A

• AC Output Voltage: 220/230/240VAC

• Grid Frequency Range: 4951+1Hz

• Nominal Output Current: 27.0A

• Dual Load Power: 6200W (Main), 2066W (Secondary)

• Surge Power: 12400VA

• Max AC Charge Current: 100A

Warranty & Installation:
Includes a 5-year warranty, valid only with installation by a qualified electrician registered with the Department of Labour. Installations must meet SANS 10142 standards and be supported by a valid COC and installation photos for any warranty claim.
