Ajax 12v PSU for Hub & Rex

Ajax 12v PSU for Hub (1), Hub Plus (1) & Rex(1) | 8-20v Input Voltage

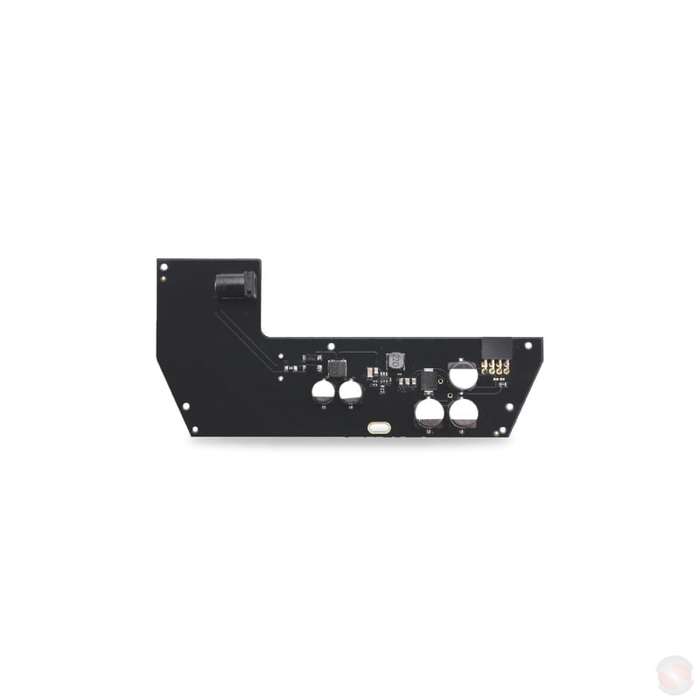

The Ajax 12v PSU is a power supply unit used to connect the Hub, Hub Plus and ReX units to low-voltage power sources such as a 12V power supply or portable battery. An ideal solution for premises with no electricity, unstable power, mobile homes or boats.

The 12v PSU replaces the on-board 220v PSU.

• Input voltage: 8 20 VDC
• Output voltage: 4.65 VDC ± 3%
• Switch on voltage: 8 VDC ± 2.5%
• Switch off voltage: 6.9 7.5 VDC (depending on load)
• Max input current: < 1 A
• Max output current: 1.5 A
• DC jack: (Female) 6.5 × 2 mm | (Male) 5.5 × 2.1 mm
• Dimensions: 138 × 64 × 13 mm

Ajax 12v PSU for Hub (1), Hub Plus (1) & Rex (1)

A power supply unit used for connecting the Hub, Hub Plus control panels and ReX radio signal range extender to low-voltage power sources.

In Warehouses, Building Sites etc:

Use Ajax in premises lacking electricity or having an unstable power supply. A 12 V power supply unit allows connecting hubs and radio signal extenders to low-voltage networks or use a portable battery.

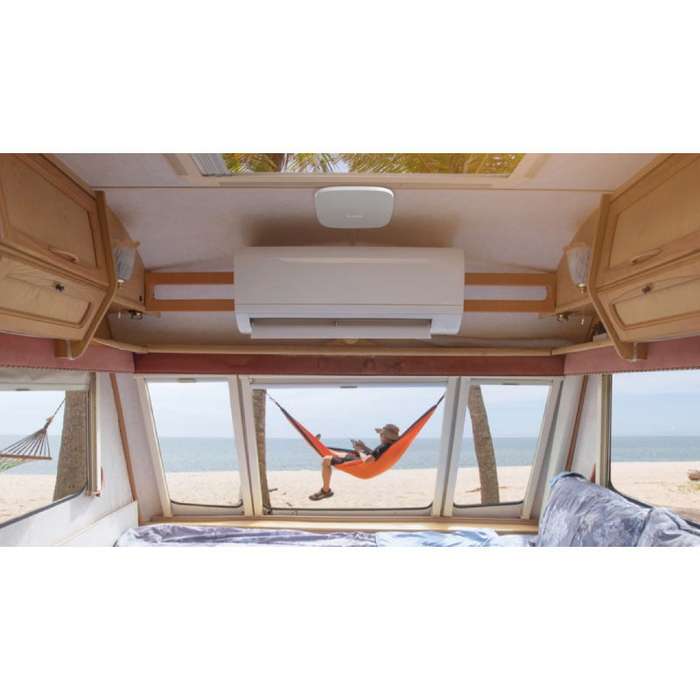

In Campervans and Caravans:

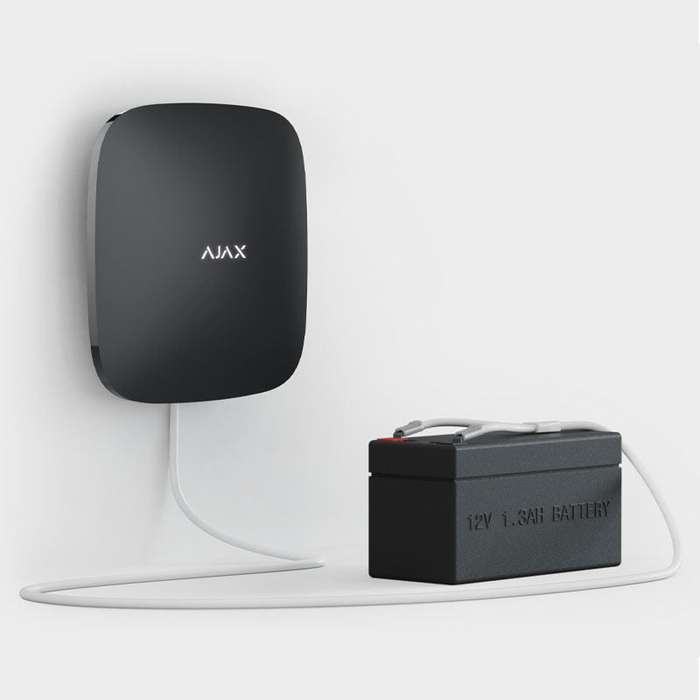

Ajax protects your home, even if it goes on wheels. Connect the hub to a car or portable battery and let the security system travel with you.

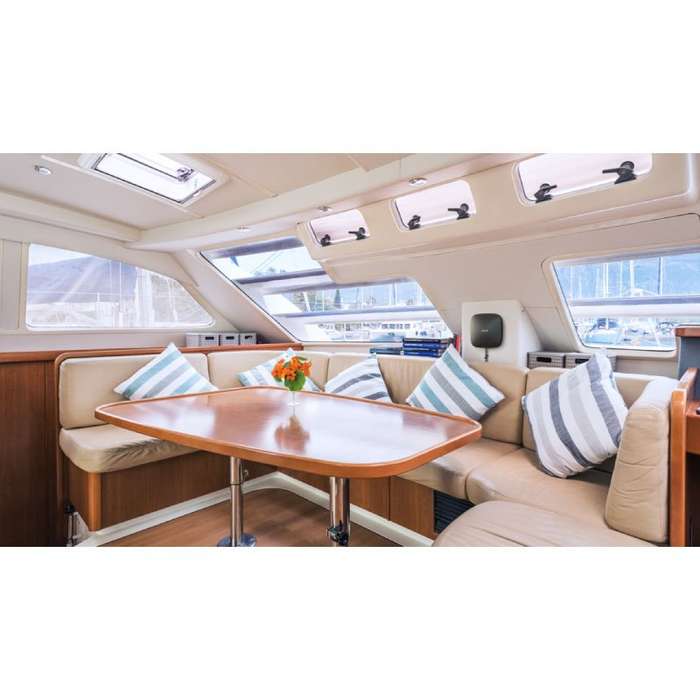

On Yachts:

Insert a SIM card and connect the hub to the on-board network or battery so that Ajax always guards your boat at the pier.

Compatibility:

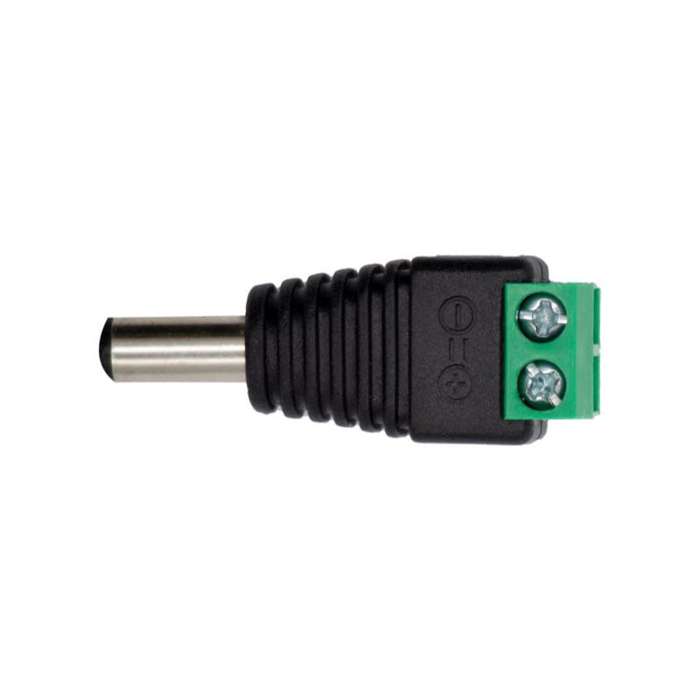

The power supply unit is compatible with Hub, Hub Plus, and ReX. It features a standard socket for connecting the power jack plug and has a bundled terminal adapter.

Installation:

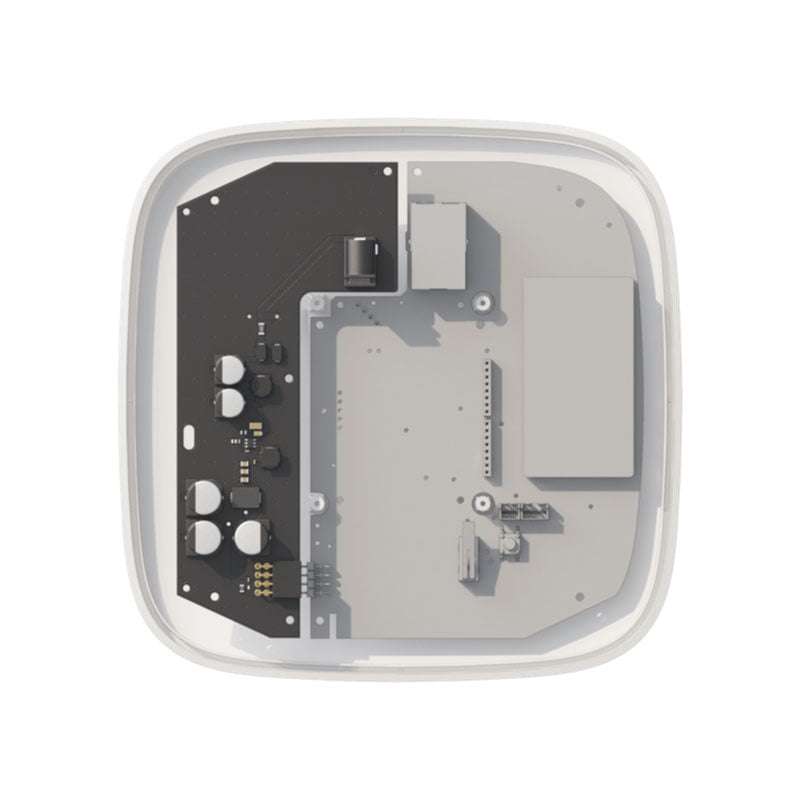

12V PSU is installed into the device body replacing the pre-installed 110/230 V power supply unit.

Ajax 12v PSU for Hub User Manual and Tech Specs

User Manual

Tech Specs

Control Panel power consumption when operating from 12 V
