Features:
-Pure Sine Wave Inverter
-Built-In MPPT solar charge controller
-Configurable input voltage range for home appliances and personal computers via LCD setting
-Configurable battery charging current based on applications via LCD setting
-Configurable AC/Solar Charger priority via LCD setting
-Compatible to mains voltage or generator power
-Auto restart while AC is recovering
-Overload/Over Temperature/Short circuit protection
-Smart battery charger design for optimized battery performance
-Cold start function
Specifications:
Inverter Mode:
-Rated Power: 3200VA/3200W
-DC Input:24VDC,150A
-AC Output:230VAC,50/60Hz,13.9A
AC Charger Mode:
-AC Input: 230VAC, 50/60Hz, 24.3A
-DC Output; 27VDC, Max. 60A. Default 30A
-AC Output:230VAC,50/60Hz,13.9A
Solar Charger Mode:
-Rated Power 4000W
-Normal Operating Voltage:360VDC
-Max. Solar Voltage (VOC): 500VDC
-MPPT Voltage Range 120~450VDC
NB: Please note that the inverter needs to be connected to 2x12V Batteries.
- Installation must be done by a qualified professional.
What's in the box

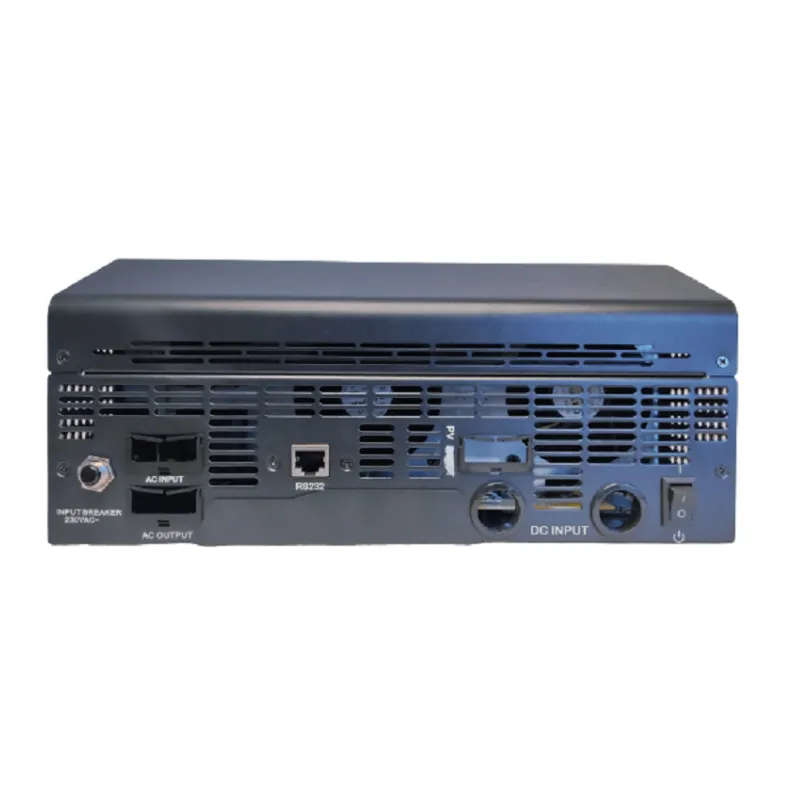

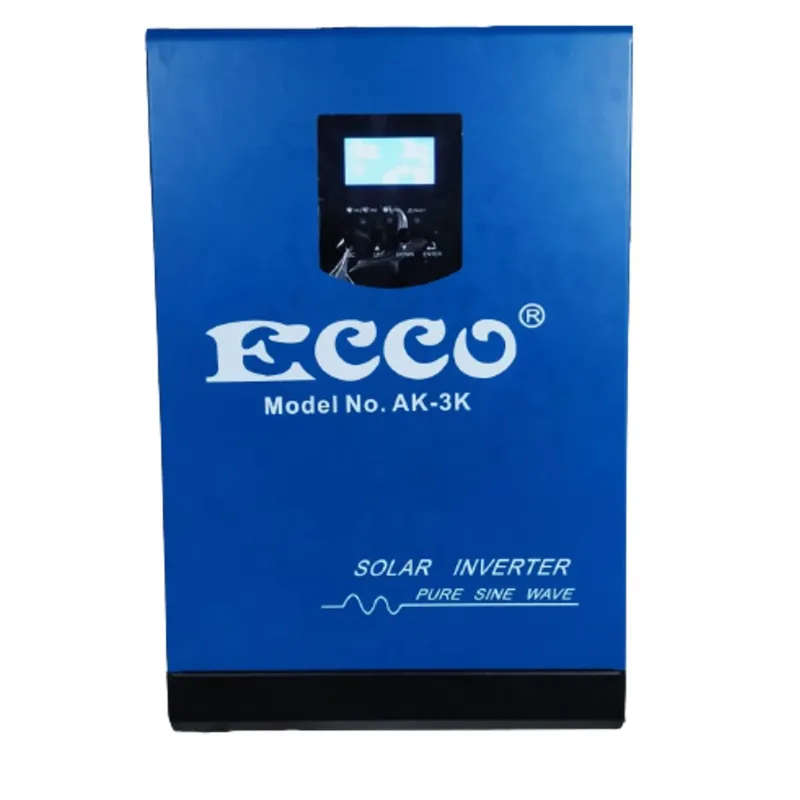

1 x ECCO AK-3KVA 24V/150A Hybrid Pure Sine Wave Inverter
1 x User Manual
