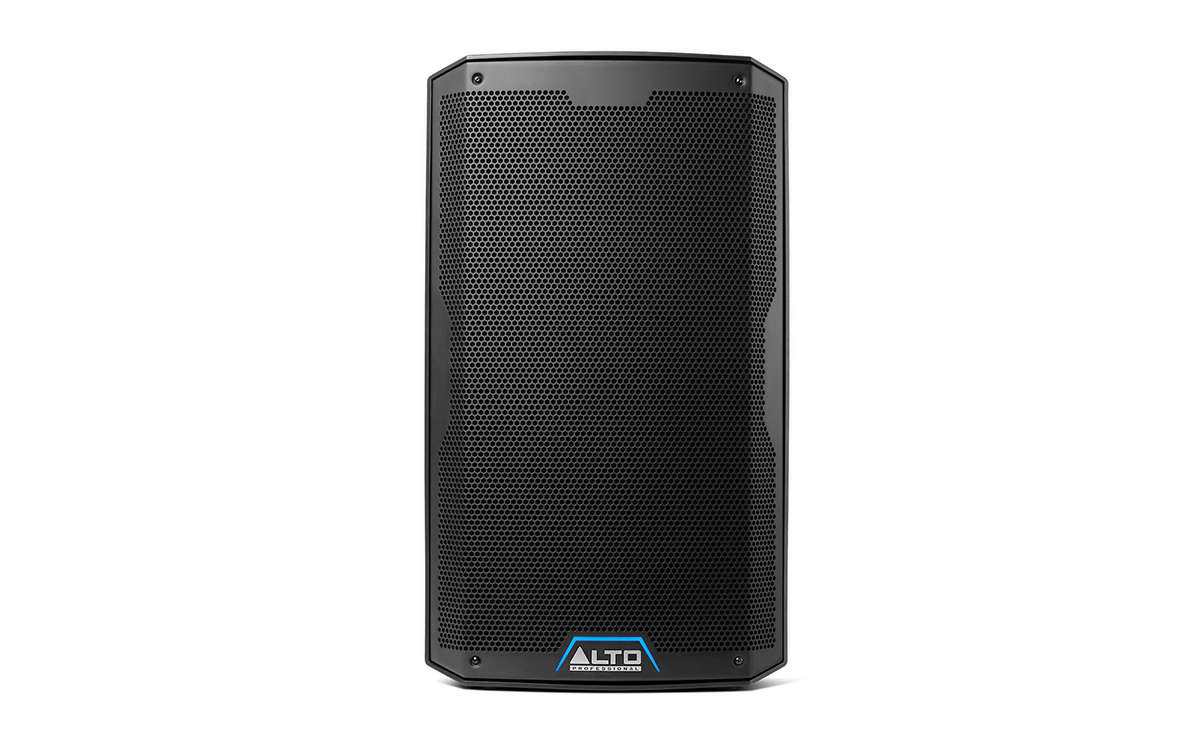

Alto TS415 - 15" 2500W 2-Way Active Speaker w/ Bluetooth

TS415 - 2500-WATT 15-INCH 2-WAY POWERED LOUDSPEAKER WITH BLUETOOTH, DSP & APP CONTROL

Whether you need a powerful vocal PA or club-shaking bass performance for a DJ set, TS4 speakers deliver loud, clear, room-filling sound for any application.  With a 15-inch woofer, and a 1.4-inch compression driver, TS415 delivers 2500W of class-leading power and clarity in equal measure.  Compact, lightweight, and designed for reliability, the new TS4 Series makes it simple to get great live sound at every event.

Features

• 2500 W peak (1600 LF + 900 HF) 1250 W continuous RMS (800 LF + 450 HF)
• FREE Alto App (iOS/Android) for remote configuration and control
• Bluetooth® audio streaming direct from device
• On-board DSP with 4 Speaker Use modes (inc. Custom EQ via App)
• True Wireless Stereo speaker linking via Bluetooth®
• Integrated 3-channel mixer with dual XLR ¼-inch combo inputs, mic/line switches and independent level controls
• XLR Mix output, Speaker Use, and Sub Size Controls
• 15" driver, 2.5" (63 mm) high-temperature voice coil
• 1" exit ceramic driver with 1.4" (35 mm) coil
• Lightweight enclosure for easy transport, set up and installation
• Versatile design - pole-mountable, wedge monitor or flown application with integral M10 suspension points
• Powerful and efficient class D amplifiers with fanless cooling design to run cleaner, quieter and with greater long-term reliability
• Designed and tuned in the USA

Specifications

• Output Power 2500 W peak (1600 LF + 900 HF) 1250 W continuous RMS (800 LF + 450 HF)
• Low-Frequency Driver: 15.0" driver, 2.5" (63 mm) high-temperature voice coil. 1 x 800 W RMS @ 2 .
• High-Frequency Driver: 1.0" exit ceramic driver with 1.4" (35 mm) coil. 1 x 450 W @ 4 .
• Crossover Frequency: 2 kHz
• Maximum SPL: 135 dB (peak), 132 dB (continuous) (dB-SPL @ 1 m)
• Frequency Response: 44 Hz — 20 kHz (+/- 3 dB)
• Frequency Range: 33 Hz — 20 kHz (-10 dB)
• Horn Coverage: 90° horizontal x 60° vertical (nominal)
• Connectors: (2) XLR+1/4" (6.35 mm) TRS combo inputs (Balanced), (1) XLR output (Link), (1) IEC power cable input
• Input Impedance Line: 10 K balanced, 20 K unbalanced, Mic: 1.2K
• Line Gain/Volume Control Range: - to 0 dB, +4 dBu nominal, +10 dBu for max output
• Mic/Inst. Gain/Volume Control Range: - to +50 dB
• USB Charging Port: 5V 2.1A

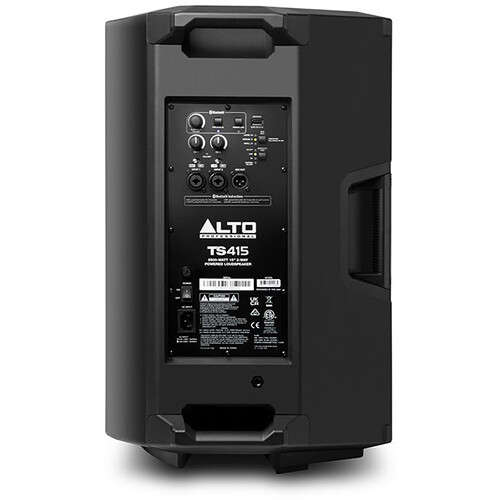

• Controls: Power switch, (2) gain control knobs (1 per input), (2) Mic/Line switches, Bluetooth volume control encoder, Pairing button, Stereo Link button, Sub Size button, Speaker Use button
• Power Connection: IEC
• Voltage: 100-120V, 50/60Hz; 220-240V, 50-60Hz
• Consumption: 1100W
• Fuse: 100-120V T15AL AC250V; 220-240V T6.3AL AC250V
• Protection: Electronic clip, thermal, and transducer overdrive protection
• Enclosure: Injected Molded Enclosure and Perforated Metal Grille
• Mounting/Installation: Standard 36 mm pole socket, flown application with integral M10 suspension points, or in a wedge monitor position
• Operating Temperature: -10°C to 45°C (14°F to 113°F)
• Dimensions: (height x width x depth) 25.3" x 16.4" x 15.8" / 643 x 417.5 x 402 mm
• Weight: 38.0 lbs. / 17.2 kg
• Indicators:(1) Input Channel Signal/Limit/Clip LED (Green = Ch1/2 Signal) (Yellow = Ch1/2 Limiter) (Red = Ch1/2 Output Clipped), (1) Bluetooth LED (Blue), (1) Link LED (Orange), (4) DSP Presets LED (Green), (3) HPF LED (Green)
