SPECIFICATIONS
General
Name

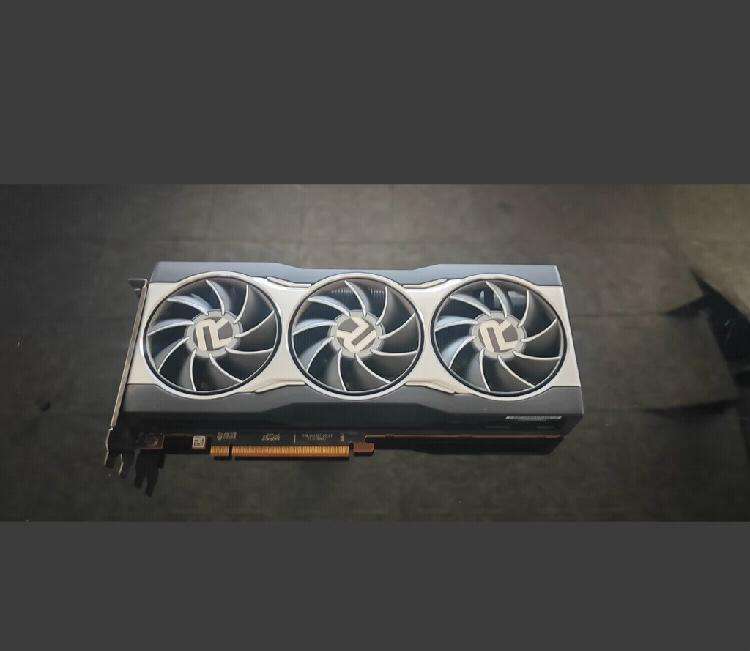

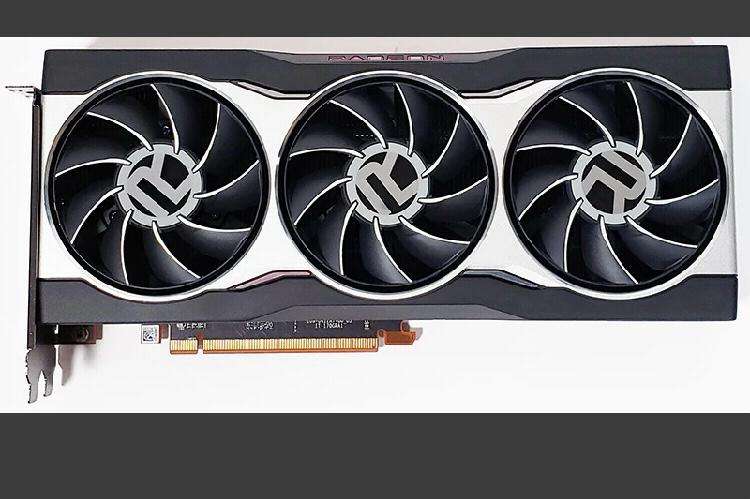

AMD Radeon RX 6800
Family
Radeon RX
Series
Radeon RX 6000 Series
Board Type
Component
Launch Date
11/18/2020
OS Support
Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , Linux x86 64-Bit
Additional Power Connector
2x8-Pin
GPU
Compute Units
60
Boost Frequency
Up to 2105 MHz
Game Frequency
1815 MHz
Ray Accelerators
60
Peak Pixel Fill-Rate
Up to 202.1 GP/s
Peak Texture Fill-Rate
Up to 505.2 GT/s
Peak Half Precision Compute Performance
32.33 TFLOPs
Peak Single Precision Compute Performance
16.17 TFLOPs
ROPs
96
Stream Processors
3840
Texture Units
240
Transistor Count
26.8 B
Requirements
Typical Board Power (Desktop)
250 W
Minimum PSU Recommendation
650W
GPU Memory
AMD Infinity Cache Technology
128 MB
Memory Speed
Up to 16 Gbps
Max Memory Size
16 GB
Memory Type
GDDR6
Memory Interface
256-bit
Memory Bandwidth
Up to 512 GB/s
Supported Rendering Format
HDMI 4K Support
Yes
4K H264 Decode
Yes
4K H264 Encode
Yes
H265/HEVC Decode
Yes
H265/HEVC Encode
Yes
AV1 Decode
Yes
Connectivity
DisplayPort
1.4a
HDMI
HDMI 2.1 VRR and FRL
USB Type-C
Yes
Dimensions
Length
267 mm
Slots
2
Features
Supported Technologies
AMD Software Adrenalin Edition , AMD FidelityFX Super Resolution , AMD Noise Suppression , AMD Radeon Super Resolution , AMD Smart Access Memory , VSR(4K) , AMD Privacy View , AMD Radeon Boost , AMD Radeon Anti-Lag , AMD Radeon Image Sharpening , AMD Enhanced Sync Technology , AMD FreeSync Technology , AMD Radeon Chill , TrueAudio Next , The Vulkan® APISlot Width Dual Slot
Dimensions 266.7 x 119.8 x 39.8 mm (LxWxH)
NB: PRODUCT NOT IN ITS ORIGINAL BOX
