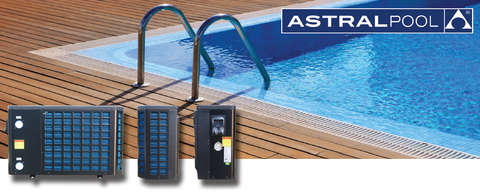

Astral Standard Swimming Pool Heat Pump

Brand:  Astral

Models:  COMFORT HP20; COMFORT HP35; COMFORT HP40

The following is our guidelines for sizing of the heat pump for use with outdoor in full sun:

• Recommended use in South Africa, only during 9 warmest months of the year:


• • COMFORT HP20 for up to 20 000L
  • COMFORT HP35 for up to 35 000L
  • COMFORT HP40 for up to 40 000L

Operating range:

• Ambient temperature: - 7°C to 43°C

• Water temperature: 9 to 40
• Water Flow Volume (Cubic Meter per Hour): 3 (HP20) / 5.3 (HP35) / 6 (HP40)


Main features of the Swimming Pool Heat Pump:

• Smart LCD touch display for easy
  operation
• Use R410A Refrigerant Gas
• Heating and cooling function
• Reverse defrosting through the four-way
  valve
• Can operate at ambient temperatures as
  low as -7°C

Installation:

• Always cover the pool with a pool blanket or solar cover when not in use
• Do not place the heat pump in an enclosed area with a limited air volume, where the units discharge air will be re-circulated
• Keep the heat pump away from plant which can block the air inlets. Not allowing the unit enough fresh air will result in reduced performance and efficiency

• It is always best to install heat pumps in full sun for maximum effectiveness
• Refer to installation manual for further guidance



Packaging dimensions:

• Box: 104cm x 42cm x 62cm (Height)


Gross Weight:

• HP20: 64kg
• HP35: 76kg
