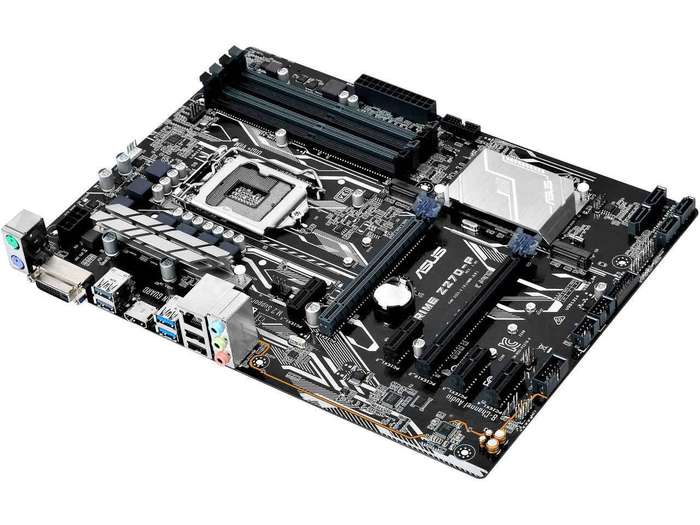

Asus PRIME Z270-P Gaming motherboard.
Second hand / used barebones motherboard.
Tested and in working condition.
Bios updated to version 1205 (2018/05/25)
Cpu socket cover in place to protect the pins.
Received as is: No manual, DVD or I/O shield included.
Supports Intel Socket 1151 for 7th/6th Generation Core i7/Core i5/Core i3/Pentium/Celeron Processors
Chipset Intel Z270
Memory: 4 x DIMM, Max. 64GB, DDR4 3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Graphic Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support : HDMI/DVI-D ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
LAN - Realtek RTL8111H
Audio - Realtek ALC887 8-Channel High Definition Audio CODEC
1 x PCIe 3.0/2.0 x16 (x16 mode)
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
4 x PCIe 3.0/2.0 x1
8 x USB 3.0 port(s) (4 at back panel, blue, Type-A, 4 at mid-board)
6 x USB 2.0 port(s) (2 at back panel, , Type-A, 4 at mid-board)
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x HDMI
1 x LAN (RJ45) port(s)
1 x 8-channel Audio I/O
2 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
4 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header
Operating System Support:
Windows 10 64-bit
Windows 8.1 64-bit *4
Windows 7 32-bit *4
Windows 7 64-bit *4
Drivers and Manual available at :
https://www.asus.com/supportonly/prime%20z270-p/helpdesk_download/
