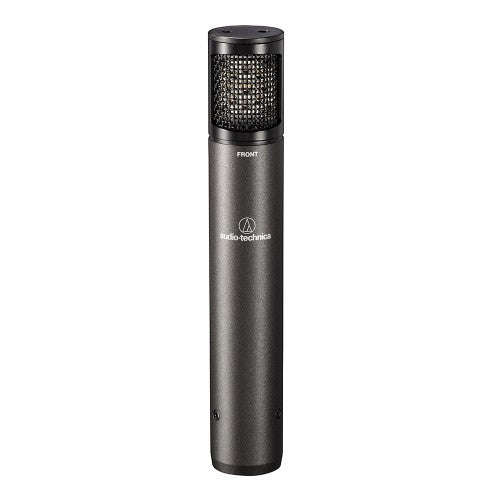

Audio-Technica ATM450 Cardioid Condenser Instrument Microphone

Audio-Technica ATM450 Cardioid Condenser Instrument Microphone

Overview:

ATM450
Unique side-address stick design maximizes placement options with minimal obstructions
Uncompromising sound quality for overheads, percussion, acoustic guitar, strings and other acoustic instruments
Integral 80 Hz HPF switch and 10 dB pad
Durable performance for professional applications
Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
Rugged, all-metal design and construction for years of trouble-free use

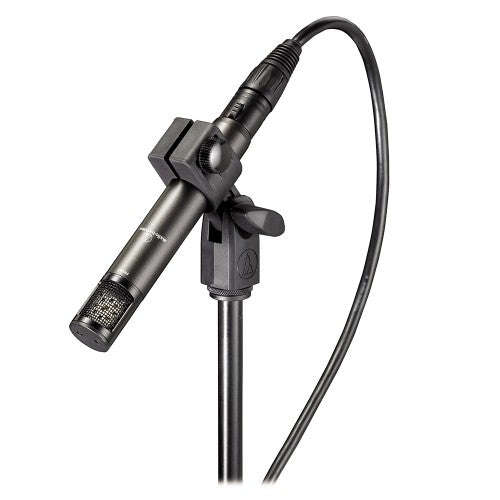

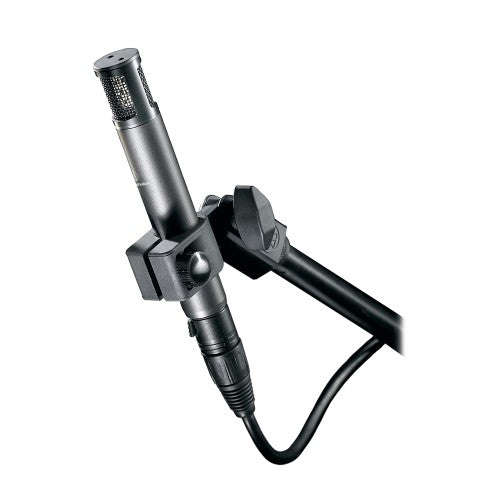

Includes isolation clamp for shock protection, secure mounting and easy positioning

Features:

One of the new stars of the Artist Series remake, the ATM450 cardioid condenser offers an innovative side-address stick design for endless placement options and minimal obstructions. The microphone is equipped with an integral 80 Hz hi-pass filter that provides easy switching from a flat frequency response to a low-end roll-off. The ATM450 also features a switchable 10 dB pad that lowers the microphone's sensitivity, providing higher SPL capability for flexible use with a wide range of performers and system configurations. The microphone's extended flat frequency response makes it ideal for high SPLs as well as for live and amplified acoustic instruments. Includes a professional isolation clamp to provide secure mounting, versatile positioning and effective dampening of unwanted mechanical noise.

Specifications:

Microphones
Element Fixed-charge back plate permanently polarized condenser
Polar Pattern Cardioid
Frequency Response 40 - 20,000 Hz
Low Frequency Roll Off 80 Hz, 12 dB/octave
Open Circuit Sensitivity -41 dB (8.9 mV) re 1V at 1 Pa
Maximum Input Sound Level 152 dB SPL, 1 kHz at 1% T.H.D.
162 dB SPL, with 10 dB pad (nominal)
Dynamic Range 127 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio 69 dB, 1 kHz at 1 Pa
Phantom Power Requirements 11-52V DC, 3.5 mA typical
Switches Flat, roll-off; 10 dB pad
Weight 98g
Dimensions 126.9 mm (5.00") long, 21.0 mm (0.83") diameter
Output Connector Integral 3-pin XLRM-type

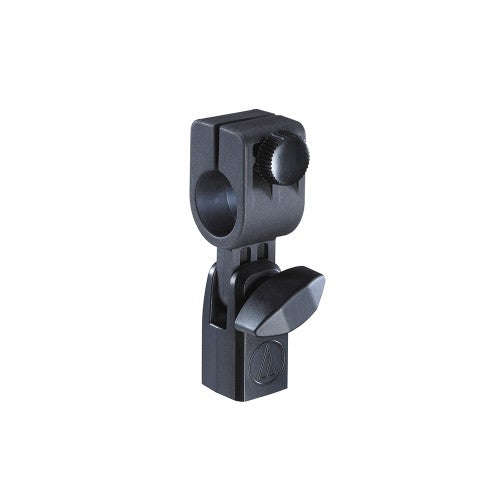

Accessories Included AT8471 isolation clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; windscreen; soft protective pouch
