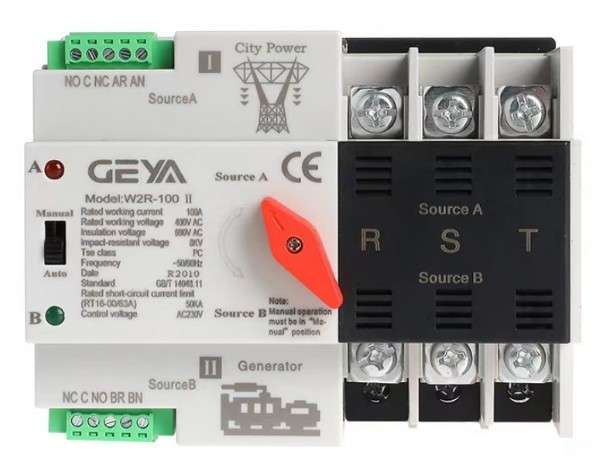

Specifications
- Rated current: 100A
- Insulation voltage: AC 690V
- Rated voltage: AC 400V
- Use category: AC-33iB
- Pole: 4P
- Weight(kg): 0.62
- Life: Electrial: 2000times, Mechanical:5000times
- Rated conditional short-circuit current: 50kA
- SCPD (fuse): RT16-00-63A
- Rated impulse withstand voltage: 8kV
- Control circuit: Rated control voltage Us: AC220V,50Hz Correct working condition 85%Us~110%Us
- Auxiliary Circuit: AC220V/AC110V 50/60Hz
- Contact transfer time: <50ms
- Operating transfer time: <50ms
- Return transfer time: <50ms
- Off-time: <50ms
- Temperature range: -5C~+40°C, average temperature not more than 35 in 24 hours
