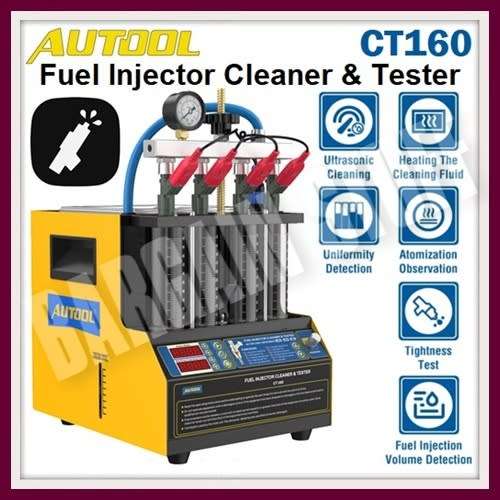

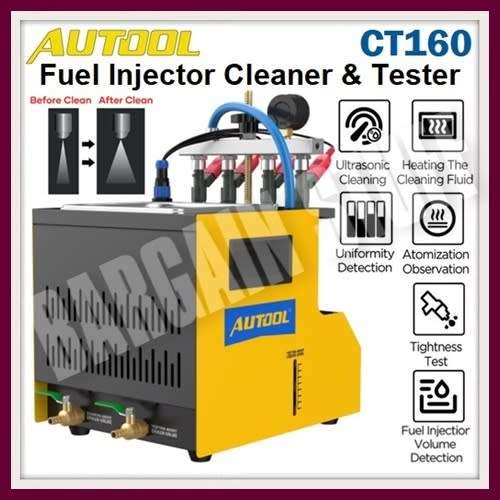

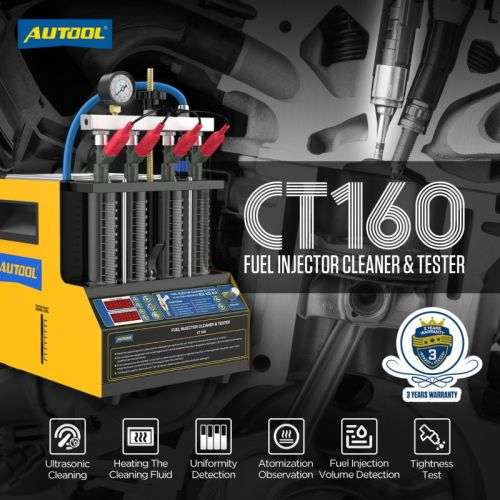

Autool CT160 Automotive Fuel Injector Cleaner & Tester

The Autool CT160 is an entry-level model for testing and cleaning of motorcycle and automobile fuel injectors. It adopts ultrasonic cleaning technology and microcomputer oil pressure closed-loop control cleaning technology, and supports simultaneous cleaning and testing of four-cylinder fuel injectors. This CT160 injector machine simulates various working conditions of the engine which can clean and test the fuel injectors of most of the automobiles and motorcycles. It is compact in size and simple to operate, making it suitable for small and medium-sized auto and motorcycle repair shops and DIY users.

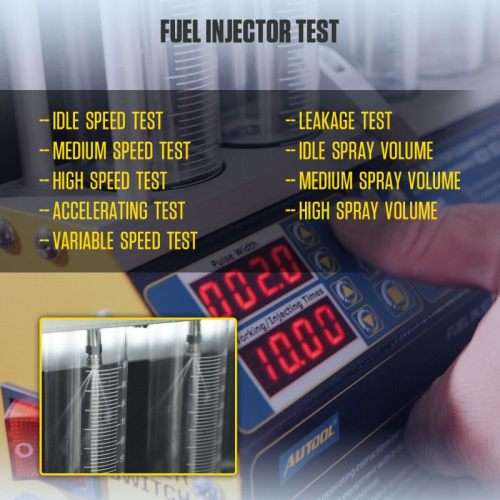

11 injector-specific functions:

1. Ultrasonic cleaning: It sends signals to the injectors through the pulse signal line, using the cleaning fluid with the ultrasonic vibration so as to completely remove the carbon and impurities inside the injectors.
2. Idle speed test (0-20ms): Simulate the engine idling speed and test the state of the fuel injector.
3. Medium speed test (0-7.5ms): simulate the engine running at medium speed and test the state of the fuel injector.
4. High-speed test (0-4ms): Simulate the high-speed performance of the engine and test the state of the fuel injector.

5. Acceleration test: Simulate the acceleration state of the car and test the performance of the fuel injector.
6. Shift speed test: Simulate the shifting state of the car and test the working performance of the fuel injector.
7. Leakage test: Test the sealing condition of the fuel injector.
8. Idle speed spray ability Test: Simulate the engine idling state and test the spraying performance of the fuel injector.
9. Medium speed spray ability test: Simulate the engine medium-speed state and test the spraying performance of the fuel injector.
10. High-speed spray ability test: Simulate the high-speed state of the engine and test the spraying performance of the fuel injector.
11. Main unit information: used to store the product number and date of manufacture of the product.

Main features:

• Using electronic pressure control technology, which makes the oil pressure stable and adjustable in a wide range.
• Equipped with high-quality oil pump to ensure long-term stable use.

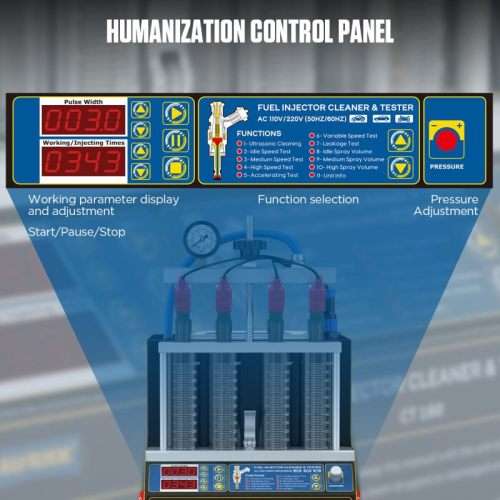

• High-definition digital tube display enables clear and easy operation.
• Liquid level can be visually displayed, and the test liquid can be recycled.
• The bright background light makes it possible to clearly view the various conditions during injector testing.
• Available with replaceable composite connectors for a wide range of vehicles.

Four core testing functions of fuel injectors:

• Uniformity test: To test the uniformity of injecting amount of each injector.

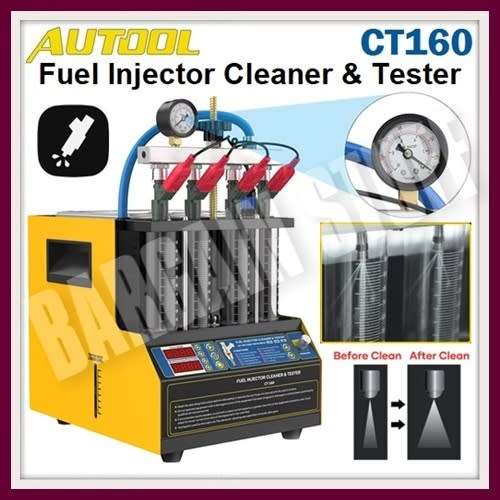

• Spray ability test: To monitor the spraying status of each injector with the help of backlight.
• Leakage test: To test the sealing and dribbling conditions of injectors under high pressure.
• Injecting flow test: To check the injecting amount of the injector of specific injection condition (eg. same time and number of times).

Ultra-large cleaning bath: The size of the ultrasonic cleaning bath is 150x136x103mm, which makes it possible to clean small car accessories in addition to fuel injectors.

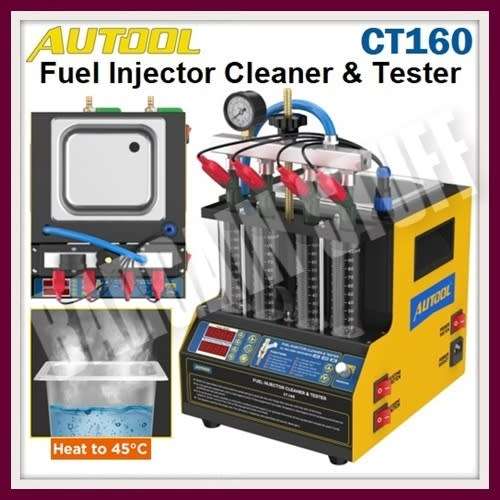

Cleaning fluid heating function: The unique cleaning fluid heating function can raise the temperature of the cleaning fluid to 40 degrees, which makes the cleaning performance even better, thus improving the cleaning effect on the injector sand accessories.

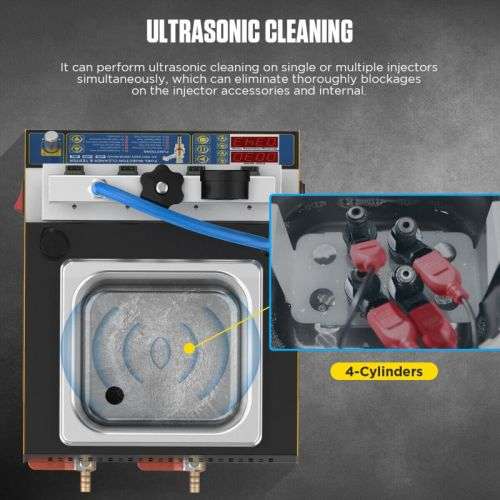

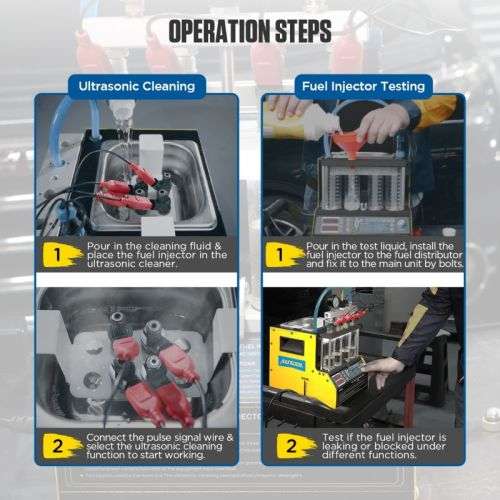

Ultrasonic Cleaning:

1. Add the cleaning fluid and put the injectors into the ultrasonic cleaning bath.
2. Connect the pulse signal lines and select the item 1 Ultrasonic Cleaning function to start.


Ultrasonic cleaning bath size: 150x136x103mm, power:70W.

Injector Testing:

1. First add the test fluid, then install the injectors on the fuel distributor, and fix them with bolts.
2. Different functions can be selected to test to see if any of the injectors are leaking or blocked.

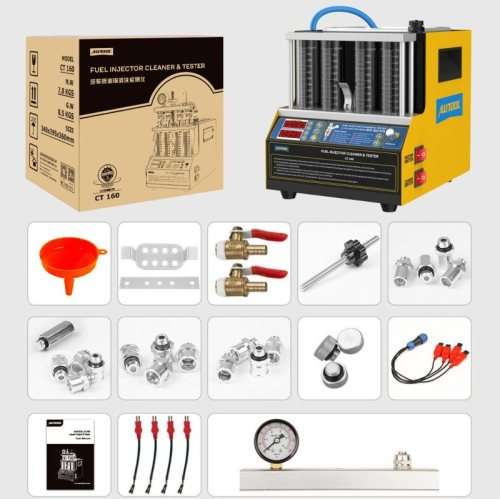

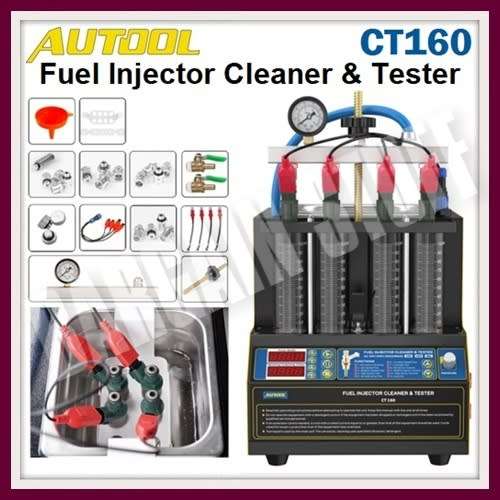

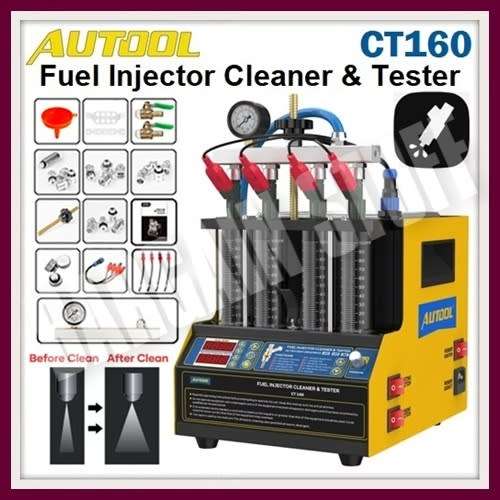

Packing list:

• Autool CT160 Main Unit.
• Funnel.
• Ultrasonic Cleaning Bracket.
• Micro gaskets.
• 2pcs * Drain Valve.
• Locking rods.

• Locking Nut.
• Extended plug.
• 4pcs * Top inlet connectors 9.8mm.
• 4pcs * Top inlet connectors 11mm.
• 4pcs * Top inlet connectors 10.6mm.
• 4pcs * Top inlet connectors 10.5mm&13.5mm.
• 3pcs * Plugs for oil separator.
• Drive signal line.
• 4pcs * Adapter cables.
• Oil Separator.
• Power Cable.
• Sealing gasket kit.
• User Manual.
