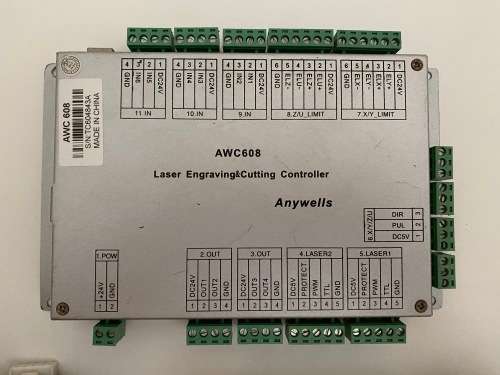

AWC608 Commercial DSP CO2 Laser Engraving/ Cutter Controller Card

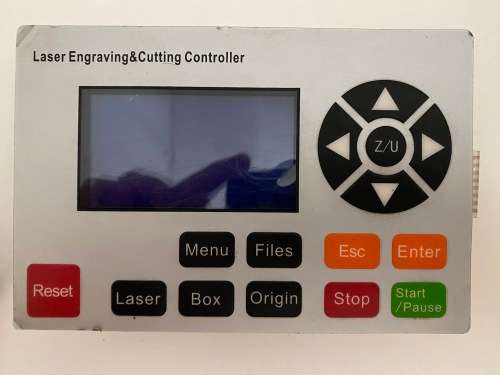

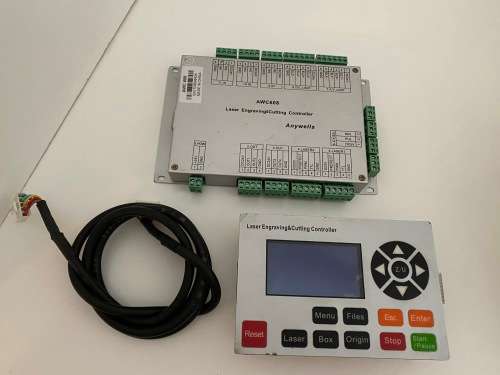

The AWC608 Commercial DSP CO2 Laser Engraving/ Cutter Controller Card Supports Auto Focus and Rotary attachments. Works well with CO2 or RF laser. DSP (Digital Signal Processing) Laser controller comes with a LCD control panel and supports dump drive (no PC required). The DSP system comes with LaserCad graphic application that works independently for simple graphic creation or file importing/exporting. It works as a control platform for the CorelDraw (v12 or higher version), and AutoCad (2004 or higher version).

"What you see on the screen is what you'll get!". Once a work file is uploaded to the card, the system will work without using a PC. A list of files supported: AI, DXF, PLT, DST, DSB, BMP, GIF, JPG, PNG, MNG, ICO CUR, TIF, TGA, PCX, JBG, JP2, JPC, PGX, RAS, PNM, SKA, RAW


Features:

• * Very adaptive to different kinds of laser machines
• * Supports memory stick (note: file name must be in 8.3 format)
• * Per layer PPI control
• * Memory recovery from electricity interruption
• * On board (LCD panel) power & speed control
• * Supports vector cutting and raster engaging
• * Works well with different brands of stepping motor drivers
• * Supports auto focus and rotary
• * Supports PWM or analog CO2 power supply
• * Supports PWM for RF laser tube
• * Dual power output control

Specification:

• * OS: Window Win10/Win8/Win7/XP/2000. Support 64bit (driver installed separately)
• * In/Out Interface port: USB or networking
• * Real time power control: PWM and analog* Support Dump drive(no PC required) for up to 200 files
• * Cad system support: CorelDraw (v12~X7) and AutoCad (2004 ~ 2008) direct output with VB plugin
• * Power: DC 12~36V,1.5A
