Bar Graph 10 Segment LED Display

Bar Graph 10 Segment LED Display

13 available / new
R82.51
Shipping
R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
DL-059
Bob Shop ID
614719030

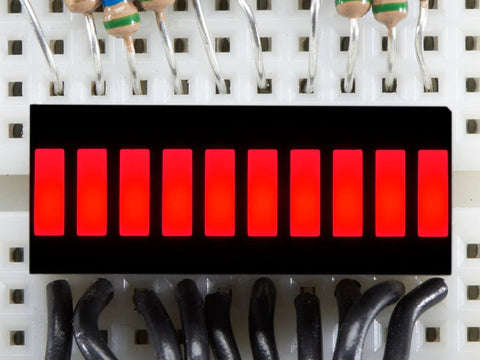

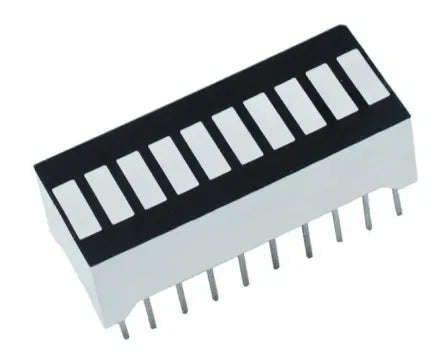

Bar Graph LED Display DIP 10SEG red

Bar graph LED displays are commonly used to indicate the level of something, like the sound volume of a sound system. Because each LED on the display has its own set of pins to operate with, it can easily be uses with a microprocessor to process the input data into data that can be used to indicate the level on the bar graph LED display.

Please note that you have to use current limiting resistors when you connect the display to the microprocessor directly.

Technical specifications:

Min input voltage 1.5V
Max input voltage 2.2V
Number of pins 20

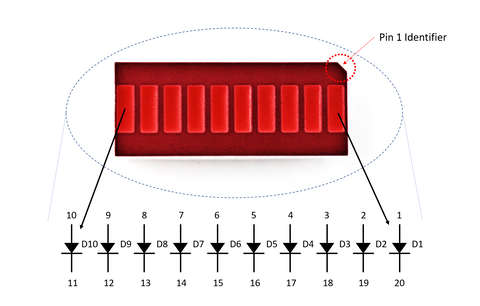

Below is a pin layout diagram of the display

LED bar graph display internal and pin layout

Resources

Here is a datasheet for the Bar graph Led display
