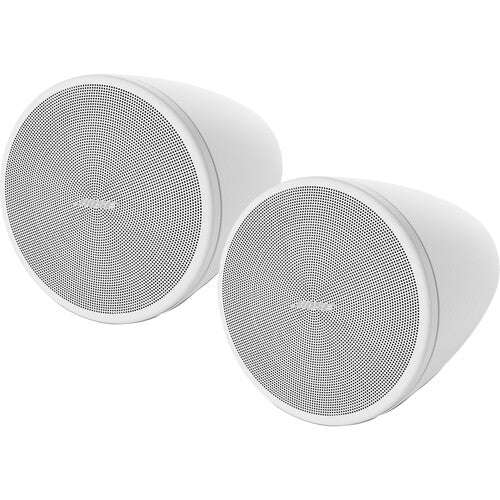

BOSE Professional DesignMax DM3P Pendant Loudspeaker - Pair - White

BOSE Professional DesignMax DM3P Pendant Loudspeaker - Pair - White

With a coaxial two-way design, the 30-watt Bose Professional DesignMax DM3P loudspeaker offers clear, intelligible highs and surprising low end for its size along with premium aesthetics that complement any commercial sound installation. It features a coaxial 3.25-inch woofer and 0.75-inch tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 75 Hz 20 kHz. The DM3P is a pendant loudspeaker featuring a recessed single-point suspension system for a sleek, attractive appearance and is available in black or white

Features:

• Complete any commercial sound installation with 16 DesignMax loudspeakers to mix and match, including in-ceiling, surface-mount, and pendant form factors, subwoofers, high-SPL compression-driver models, compact low-profile models, and outdoor-rated options

• Choose from three DM3 models the in-ceiling DM3C, the surface-mounted, outdoor-rated DM3SE, and the sleek DM3P pendant loudspeaker

• Deliver clear highs and surprising low end for their size with a coaxial two-way design no DSP or EQ required. For even better sound, combine with select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level

• Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter

• Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos

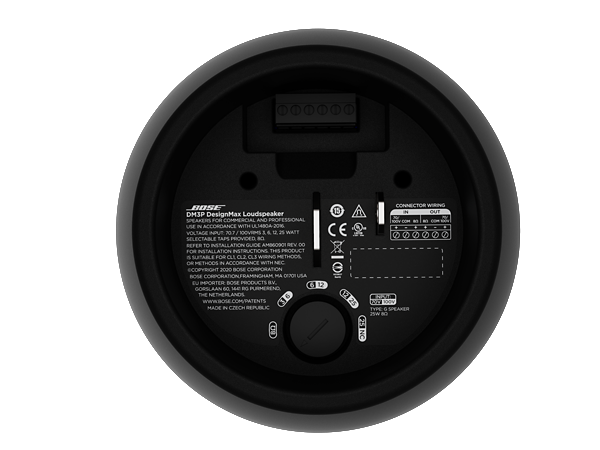

• Install easily with industry-standard accessories all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

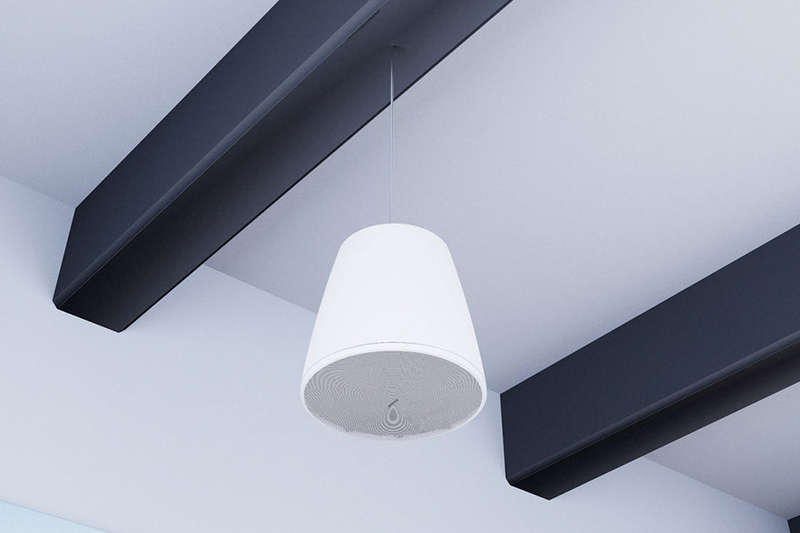

• Provide an open, attractive aesthetic with pendant loudspeakers featuring a recessed single-point suspension system that keeps hardware out of sight and can be used to hold and hide a service loop for easy access

Specifications:

Technical Summary
Frequency Response (+/-3 dB)
80 - 20,000 Hz

Nominal coverage (H x V)
130° conical

Power Handling, peak
100 W

Maximum SPL @ 1m
99 dB

Frequency Range (-10 dB)
75 - 20,000 Hz

Power Handling, long-term continuous
25 W

Sensitivity (SPL/1W @ 1 m)
84 dB

Nominal Impedance
8 (transformer bypass)
