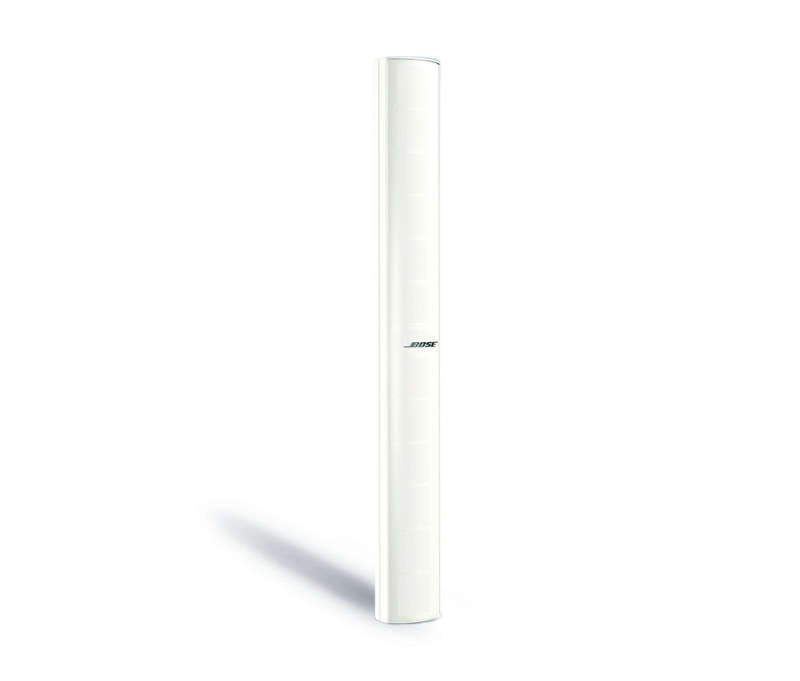

BOSE Professional Panaray MA12 modular column array loudspeaker - Each - White

BOSE Professional Panaray MA12 modular column array loudspeaker - Each - White

The Bose Professional Panaray MA12 mid/high frequency column array is designed to provide outstanding vocal intelligibility in acoustically demanding spaces with wide 145 degree horizontal coverage. The slim column enclosure blends with almost any décor.

For indoor applications only.

Features:

• Twelve 2.25" (64 mm) drivers mounted in a vertical line array deliver wide horizontal coverage with narrow vertical pattern control

• Modular design allows stacking of multiple enclosures in a line array configuration to provide increased vertical pattern control which improves "throw" distance and reduces unwanted floor/ceiling reflections

• 145° horizontal x 20° nominal coverage for a single module. Vertical coverage varies with number of modules stacked in line array configuration

• Mid/high configuration allows bass management and design flexibility. Use with Bose Professional MB4, MB12, or MB24 modular bass loudspeakers for full-range reinforcement

• Optional brackets allow easy installation of single-, double- or triple-stack line array modules

Specifications:

Frequency Response (+/-3 dB)
155 Hz - 12 kHz

Frequency Range (-10 dB)
100 Hz - 16 kHz

Nominal Dispersion
145° H x 20° V

Long-Term Power Handling
300 W (1200 W peak)

Sensitivity (SPL / 1 W @ 1 m)
88 dB SPL

Maximum SPL @ 1 m
113 dB SPL (119 dB SPL peak)

Nominal Impedance
8
