CC2500 NRF24L01 A7105 CYRF6936 4 In 1 RF Module For Walkera Devo Transmitter

CC2500 NRF24L01 A7105 CYRF6936 4 In 1 RF Module For Walkera D7E D10 Transmitter





















Description:
Item Name: RF module
4 In 1 Chip: CC2500, NRF24L01, A7105, CYRF6936
Compatibility: Supports dozens of protocols,such as?Frsky,Spektrum DSM2/DSMX,Walkera Devo,FUTABAS SFHSS,Flysky,MJX,Esky,Wltoys,and etc.

Features:

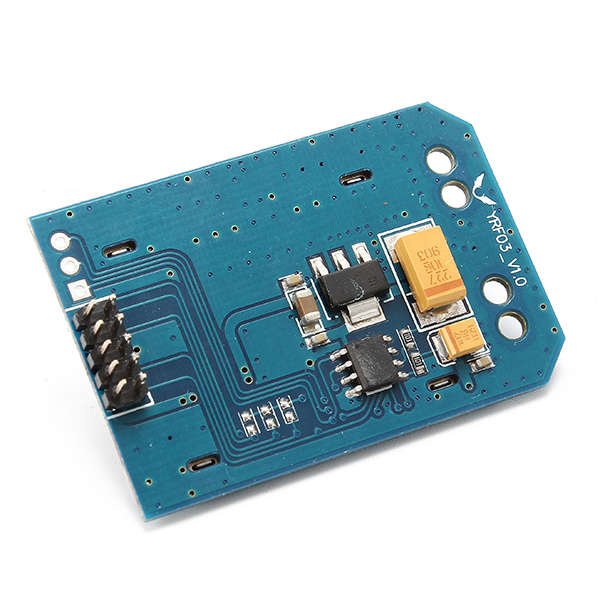

4 IN 1 RF module integrates four RF chips( CC2500, NRF24L01, A7105, CYRF6936 ) in one single PCB board.
4 IN 1 RF module came with 160mW ouput PA, LNA and?high frequency signal switching circuit.
Plug and use,can directly compatible with Walkera transmitter,?no need to solder or update the transmitter firmware, and make the transmitter has longer control range and?Improve power supply of transmitter.
If additional welding 3 chip select signal and with DEVIATION open source firmware,this module can work with almost all the transmitter open source protocol.

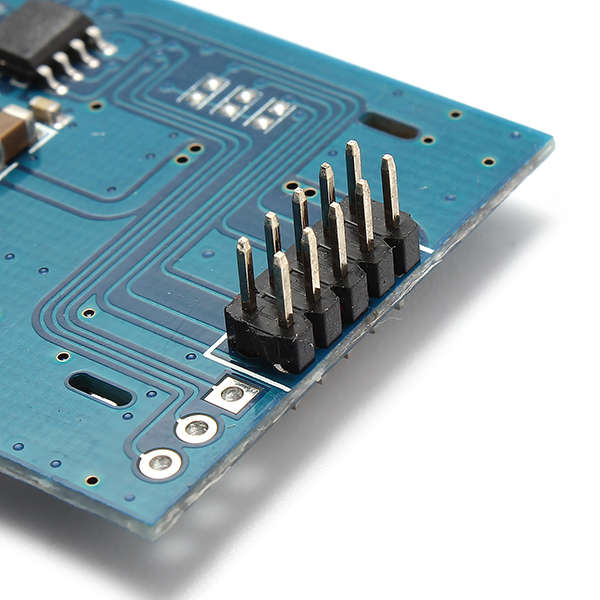

Pin Definition:



Pin Function:

Name	Attributes	Function
CSN2500	Input	CC2500? chip select signal
CSN2401	Input	NRF24L01?chip select signal
CSN7105	Input	A7105?chip select signal
CSN6936	Input	CYRF6936?chip select signal
SCK	Input	SPI Interface clock signal
MOSI	Input	SPI Interface input from the device
MISO	Output	SPI Interface output from the device
VIN	Power Source	4.5V-8V Input
GND	Power Source	Ground
RST6936	Input	CYRF6936?chip select signal

RF Module Table,?

Supported Protocols and Models,

Related Firmware,Configuration file and Tools,

Note:
Open source protocol is mostly cracked,protocol version is constantly updated,inevitably there are omissions. Including but not limited to the following issues:
- Part program version DSM2 have protocol compatibility problems.
- Some receiver (original AR600) need to rebind per use,some receiver (Spektrum integrated receiver) frame rate is a bit slow. This issue basically determine the problem is on the program itself.

Package Included:
1x?4 In 1 RF Module


, , , , , , , , , ,
