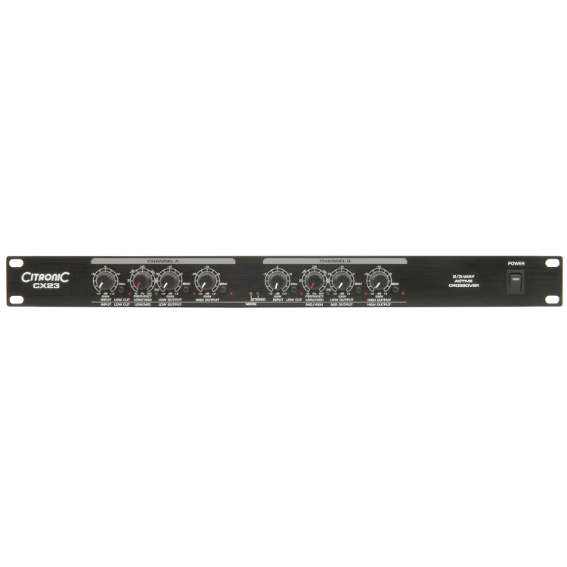

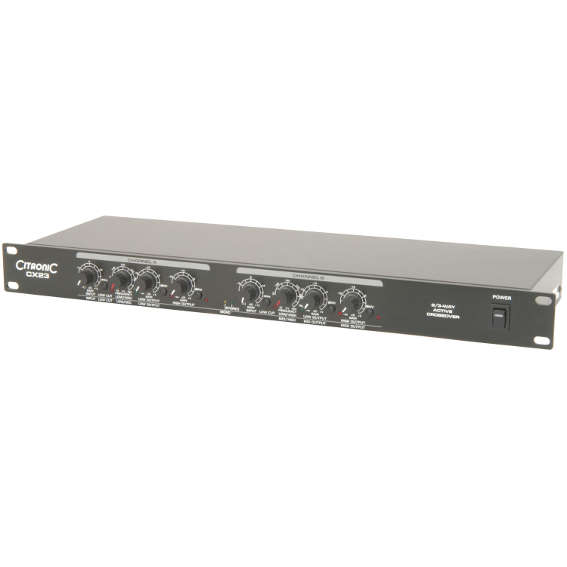

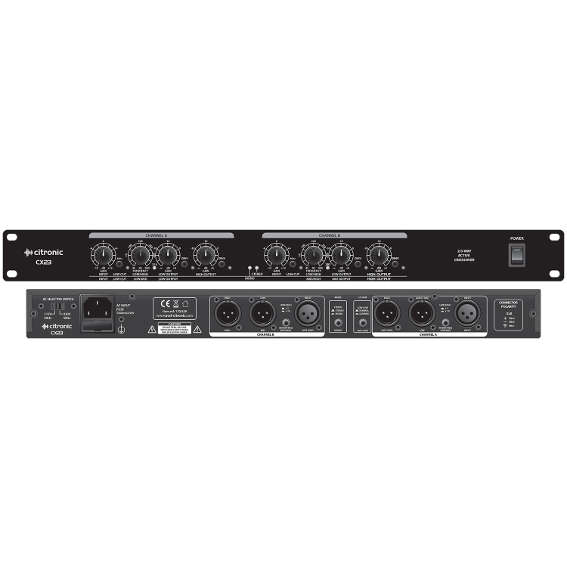

The CX23 is a 2-way stereo or 3-way mono active crossover designed to split frequencies so that low frequencies are delivered to the amp driving the sub cabinets and mid/top frequencies are delivered to the amp driving the mid/top frequency cabs. This type of system is more efficient and delivers more accurate sound quality, especially in larger PA systems.
Power supply: 115/230Vac, 50/60Hz (IEC)
Input impedance : balanced: 40k ohms
Input impedance : unbalanced: 20k ohms
Output impedance: 220 ohms
Crossover ranges : stereo: 50Hz-5kHz;750Hz-7.5kHz
Crossover ranges : mono: 50Hz-5kHz;750Hz-7.5kHz; 2kHz-20kHz
Filter slope: 18dB/octave
Frequency response: 20Hz-25kHz +0/-1dB
Signal to noise ratio: >90dB
THD: 0.006%
Dimensions: 482 x 44 x 170mm
Weight: 2.5Kg
