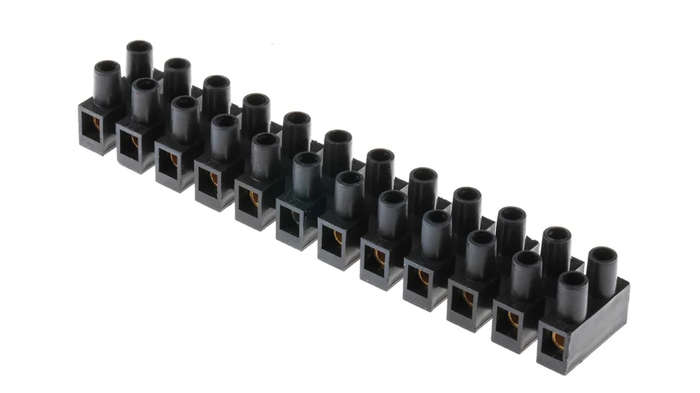

CL0397 - Connecting Strip 10 Amp

Key Specifications:

• Contacts: 12 contacts in 2 parallel rows
• Fixing Centres: 10mm
• Current Rating: 10A
• Voltage Rating: 380V
• Length: 116.5mm
• Color: Black

Features and Benefits:

• Polypropylene Housing:
  • The terminal strip features a polypropylene housing material, providing durability and resistance to heat, chemicals, and fatigue.
• Screw-Type Connector:
  • Utilizing a screw-type electrical connector, this strip ensures a secure and reliable connection. The screws are made of galvanized steel for added strength.
• Wire Size Compatibility:
  • Accommodates wire sizes ranging from 0.5mm² to 4mm², offering versatility in various electrical applications.
• Flame Retardant:
  • The terminal strip is flame retardant, enhancing safety in electrical setups.
• Straight Body Orientation:
  • With a straight body orientation, the strip facilitates straightforward wire connections.
• Operating Temperature:
  • Capable of operating in temperatures up to +85°C, ensuring performance under varying environmental conditions.
