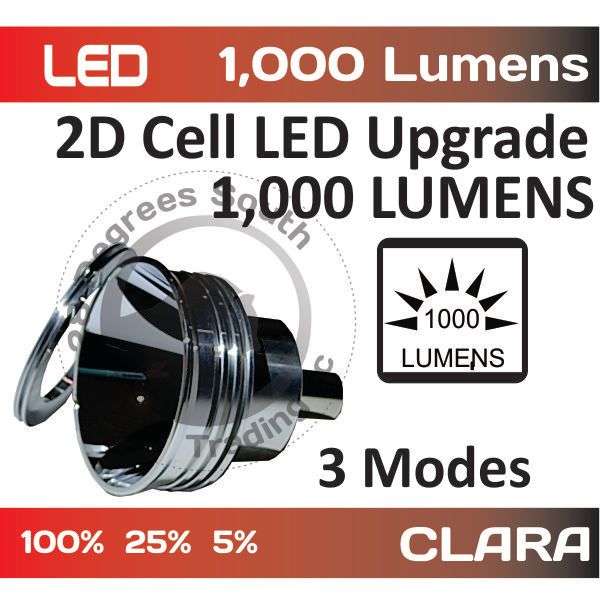

Clara 1000 Lumen LED for 2D Maglite

CLARA 1000 LUMEN LED for 2D Maglite

10 Watt Cree LED

Cool White light

1,000 Lumen Lamp Luminous Flux

Work lifetime: 50,000 hours

Warranty: 6 Months

Installation:

1. Unscrew and completely removing the head of your Maglite flashlight.

2. Next remove the bezel and lens from the head and take out the factory reflector.

3. Insert the 1,000 lumen LED Module into the head (Older versions of the Maglite you may require that you remove the

extra ring on the base of the LED Module so it will sit deeper in the head. The ring will just slip off the bottom of the bulb).

4. Place the lens over the top of the LED Modules reflector and screw the bezel back on to the head.

5. Remove the bulb retaining ring and bulb from the switch (if you have the bi-pin bulb you can press down on the tower

to eject the plastic bi-pin bulb holder).

6. Screw the head of the Maglite back on to the body until it is "snug", do not overtighten.

Changing Modes:

From the ON position you can click the switch quickly (ON-OFF-ON) to ramp through the light modes.

The light will cycle through High, Medium, and Low modes.

When you get to the brightness mode you want stop clicking.

Allow the light to remain on for 5 to 10 seconds, the mode that it has been running in will be memorized.

When you next power on your Maglite it will be in the mode you last used for 5 to 10 seconds.

Features:

1,000 Lumens

3 Mode Switch

100%, 25% & 5%

FOR 2D Cell Maglite only

This unit is voltage specific

MAX VOLTAGE - 3V (2 x 1.5V LR20 Batteries)

Fits Incandescent Maglite 2D Cell torches with Serial numbers beginning with Either 2.. or D2...

Approximate Run-Time:

100%: 3 hours

25%: 18 hours

5%: 80 hours plus

TAKE NOTE: Spot to Flood function is Lost, however you will have a wide angle beam that will shine 260 meters in the right conditions.
