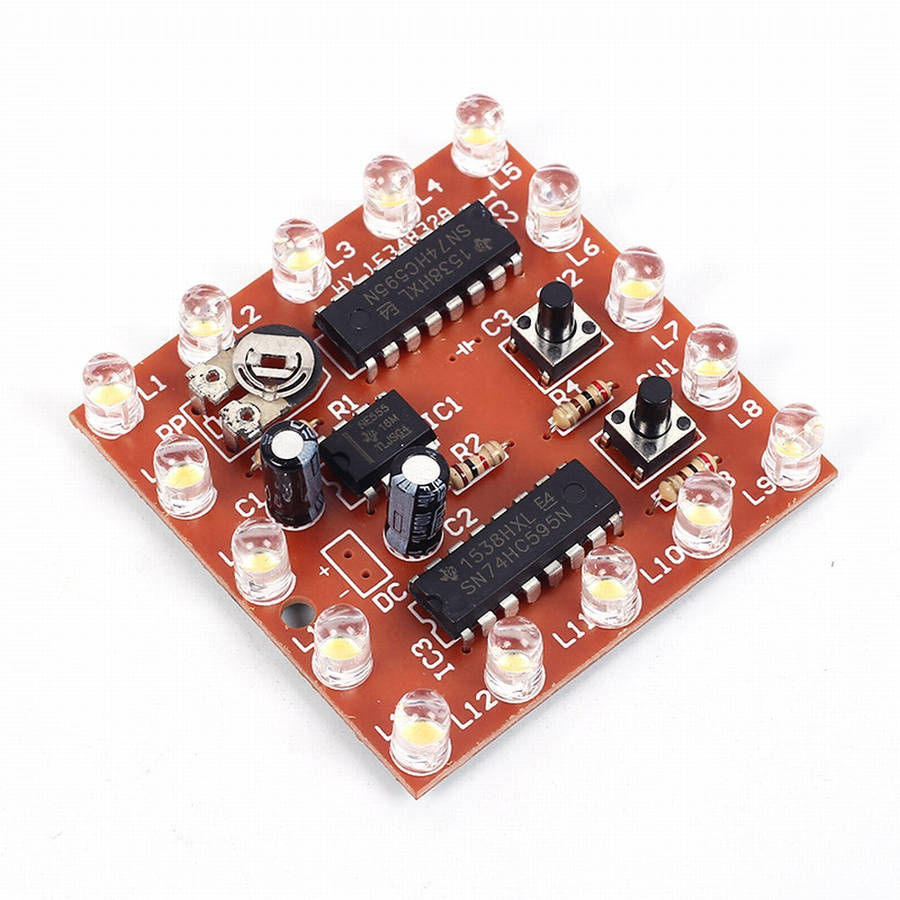

DIY Electronic kit NE555+74HC595 16Bit 16 Channel Water Flowing Marquee Lamp LED Module (10006440)

The DIY Electronic Kit NE555+74HC595 16Bit 16 Channel Water Flowing Marquee Lamp LED Module is a versatile and customizable module that allows you to create your own water flowing marquee lamp. With its NE555 timer and 74HC595 16-bit shift register, you can control up to 16 individual LED channels. The module comes with a pre-programmed LED pattern, but you can also create your own by modifying the code. The kit includes all the necessary components and a detailed instruction manual, making it suitable for both beginners and experienced electronics enthusiasts. Whether you want to add an eye-catching decoration to your home or showcase your DIY skills, this LED module is the perfect choice.

NE555+74HC595 16Bit 16 Channel Water Flowing Lights Marquee Lamp LED Module DIY Kits Electronic Soldering Training Suite

Description:

You can achieve any combination of your favorite 16-way water lamp effect, very interesting, simple circuit, the assembly success rate is high.

Feature:

Adopt 1.5mm thickness board, enlarged pad, relatively wire.

Work Status:

Core circuit is NE555 and 74HC595, the two keys can change the lighting cycle start point LED status so as to achieve random flowing combination. LED is ultra bright warm white LED, and it can be used as small night lamp

Principle:

Bi-stable circuit formed by NE555 and 74HC595, it can generate oscillating pulse, and adjust RP can change the oscillating frequency so that the flowing speed can be changed. 74HC595 has 8-bit shift register and a storage device, Tri-state output function. Shift register and storage device has mutual-independent clock.

Parameter:

Component List:
