Ecco 3.5KVA / 3500W MPPT Hybrid Inverter + 2x 100Ah 12V Gel Batteries | Solar & Backup Power Solu...

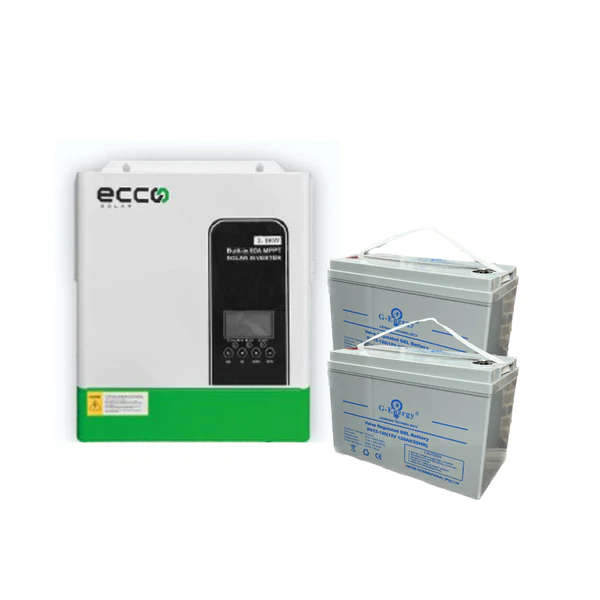

Ecco 3.5KVA / 3500W MPPT Hybrid Inverter + 2x 100Ah 12V Gel Batteries | Solar & Backup Power Solution

Description:

The Ecco 3.5KVA Hybrid Inverter, paired with two 120Ah 12V Gel Batteries, delivers a reliable backup power and solar energy storage solution for homes and small businesses. With MPPT charge controller technology, it ensures 30% higher charge efficiency compared to PWM controllers. This system offers pure sine wave output, making it ideal for sensitive electronics while providing seamless power backup during outages.

• Multiple Output Priority Modes:
  • UTL (Utility First) Prioritizes grid power.
  • SOL (Solar First) Maximizes solar energy usage.
  • SBU (Solar & Battery First) Best for backup systems.

• Key Features:

  • Hybrid Functionality: Supports grid, solar, and battery power for versatile energy management.
  • Pure Sine Wave Output: Ensures stable, high-quality power for sensitive electronics.
  • MPPT Solar Charger (100A): Maximizes solar panel efficiency for improved performance.
  • Wi-Fi Monitoring (Optional): Connect a Wi-Fi dongle (sold separately) for remote monitoring.
  • High Power Output: 3.5kVA / 3500W capacity supports demanding appliances and devices.
  • Wide Solar Voltage Range: Compatible with solar arrays up to 500VDC.

  Technical Specifications:

  Inverter Mode:

  • Rated Power: 3500VA / 3500W
  • DC Input: 24VDC (158A)
  • AC Output: 230VAC, 50/60Hz (15.2A)

  AC Charger Mode:

  • AC Input: 230VAC, 50/60Hz (23.5A)
  • DC Output: 27VDC
  • Max Charge Current: 80A
  • Max Combined Charge Current (AC + PV): 100A
  • AC Output: 230VAC, 50/60Hz (15.2A)

  Solar Charger Mode:

  • Max PV Array Power: 4000W
  • Min Solar Voltage: 60VDC
  • Max Solar Voltage (VOC): 500VDC
  • Max Charge Current: 100A

  Physical Specifications:

  • Dimensions: 359mm x 295mm x 100mm
  • Weight: 7kg

Battery Specifications (2x 120Ah 12V Gel Batteries):

• Type: Sealed Lead Acid Gel Battery
• Voltage: 12V
• Capacity: 100Ah per battery (Total: 200Ah)
• Weight: 22.7kg per battery
• Dimensions: 420 x 185 x 265mm
• Battery Warranty: 90 day replacement

What's Included in the Package:

• 1x Ecco 3.5KVA / 3500W 24V MPPT Hybrid Inverter
• 2x 100Ah 12V Gel Batteries
• User Manual

Optional Add-On:

• Ecco Hybrid Inverter Wi-Fi Dongle (For remote system monitoring)

Important Notes:

• Battery cables are NOT included.
• Installation must be performed by a qualified wireman or master electrician.
• A valid Certificate of Compliance (COC) is required for warranty claims.
• Warranty claims without proof of professional installation, installation photos, or a valid COC may be rejected.

Ideal For:

• Load shedding and backup power
• Small business and home solar power solutions
• Off-grid solar systems (with additional solar panels)
• Hybrid solar and battery backup systems

Installation & Warranty Information:

• Inverter Warranty: 5-Year Repair Warranty
• Battery Warranty: 90 day replacement

• WOULD YOU LIKE TO ADD A WIFI DONGLE FOR YOUR ECCO INVERTER:

https://gridsolutionssa.co.za/shop/new-arrivals/ecco-hybrid-inverter-wifi-dongle/
