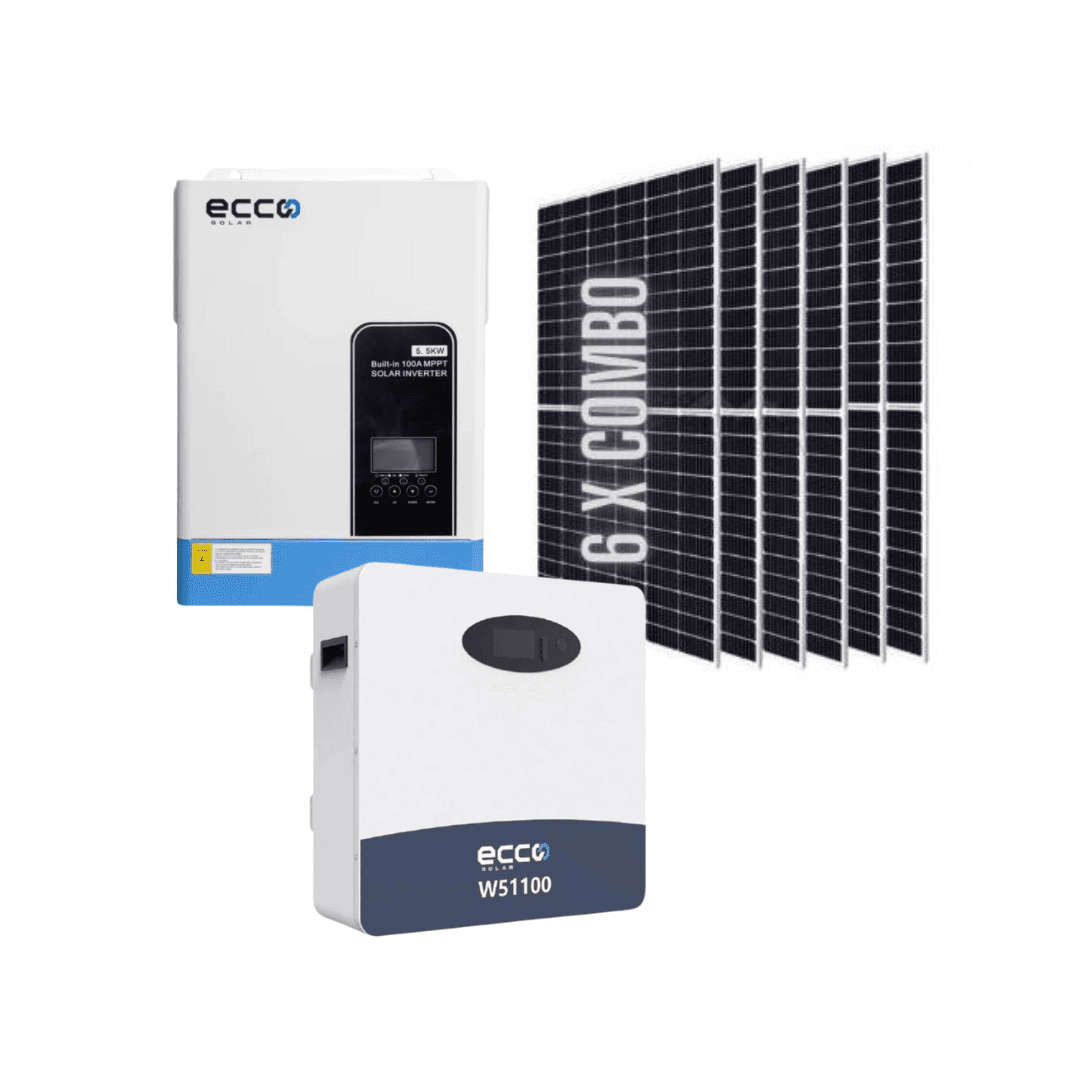

Ecco 6.2kVA Hybrid Inverter + 5.12kWh Ecco 100Ah Lithium Battery + 6x 545W Tier 1 Mono Crystallin...

Ecco 6.2kVA Hybrid Inverter + 5.12kWh Ecco 100Ah Lithium Battery + 6x 545W Tier 1 Mono Crystalline Solar Panels / MPPT 120A / Pure Sine Wave

Product Description:

Optimize your renewable energy system with the Ecco 6.2kVA Hybrid Inverter, paired with a 5.12kWh 100Ah Lithium Battery and six 545W Tier 1 Mono Crystalline Solar Panels. This all-in-one solar power solution delivers efficient MPPT charging, pure sine wave output, and high-performance lithium storage, making it ideal for residential and small commercial applications.

Key Features:

• 6.2kVA Hybrid Inverter Delivers up to 6200W output power.
• MPPT 120A Solar Charger Maximizes energy efficiency with 6500W PV input.
• 5.12kWh Lithium Battery (51.2V, 100Ah) Wall-mounted design for easy installation.
• 6x 545W Mono Crystalline Solar Panels High-efficiency panels for optimal energy production.
• Pure Sine Wave Output Ensures stable power for sensitive electronics.
• Dual AC Outputs Supports varied energy needs.
• Lithium Battery Activation Can be activated via PV or utility power.
• High Efficiency Peak efficiency of 94%.
• Overload Protection Smart load management for safety.
• Wide AC Input Range Operates within 170-280VAC (PCs) and 90-280VAC (home appliances).
• Communication Interfaces Supports RS485 (RJ45) & RS232 (DB9) for advanced system monitoring.

Technical Specifications:

Inverter Performance:

• Model: HIN6200S
• Phase: Single-phase input & output
• Maximum PV Input Power: 6500W
• Maximum Output Power: 6200VA/6200W
• Surge Power: 12400VA
• Waveform: Pure sine wave
• Efficiency: 94%
• Transfer Time: 10ms (PC); 20ms (Home Appliances)

Battery System:

• Voltage: 51.2V DC
• Capacity: 100Ah / 5.12kWh
• Cycle Life: Up to 20 times longer than lead-acid batteries
• Lighter Weight: 40% less than equivalent lead-acid batteries
• High Discharge Rate: Delivers twice the power compared to lead-acid batteries
• Temperature Range: -20°C to 60°C
• Safety Features: Protection against overcharging, short circuits, and high impact
• Battery Type Setting: USE
• Bulk Charge Voltage: 56.4-56.6V
• Float Charge Voltage: 54V
• Cut Off Voltage: 47V

Battery Parameters:

Battery Type is set to "USE."
Bulk Charge Voltage is set to 56.4-56.6V.
Float Charge Voltage is set to 54V.
Cut Off Voltage is set to 47V.

Solar & AC Charging:

• Solar Charger Type: MPPT
• Maximum PV Array Power: 6500W
• MPPT Voltage Range: 60V-500V DC
• Maximum Solar Input Current: 27A
• Maximum Solar Charge Current: 120A
• Maximum AC Charge Current: 80A
• Total Maximum Charge Current: 120A

Physical & Environmental Details:

• Inverter Dimensions: 438mm x 312mm x 122mm
• Battery Dimensions: 480mm x 170mm x 500mm
• Package Size: 590mm x 290mm x 615mm
• Net Weight: 49kg
• Operating Temperature Range: -10°C to 50°C
• Storage Temperature: -15°C to 60°C
• Humidity Tolerance: 5% to 95% RH (Non-condensing)
• IP Rating: IP54

Included in the Package:

• 1x Ecco 6.2kVA Hybrid Inverter
• 1x 5.12kWh ECCO Lithium Ion Phosphate Battery (51.2V, 100Ah)
• 6x 545W Mono Crystalline Solar Panels
• Battery Cables & Mounts

Warranty Information:

• Inverter: 5-year warranty
• Lithium Battery: 5-year warranty

Important Notes:

• Solar panels are couriered at your own risk.
• All inverters and batteries must be installed by a qualified electrical wireman or master electrician.
• A valid electrical Certificate of Compliance (COC) is required for warranty claims.
• Installations must comply with SANS 10142 regulations.

Why Choose the Ecco Hybrid Inverter & Solar Panel Kit?

This comprehensive solar energy solution is ideal for backup power, off-grid applications, and solar integration. With high efficiency, durable lithium storage, and optimized solar input, this system ensures consistent and reliable performance for years to come.

Order today and take control of your energy future!
