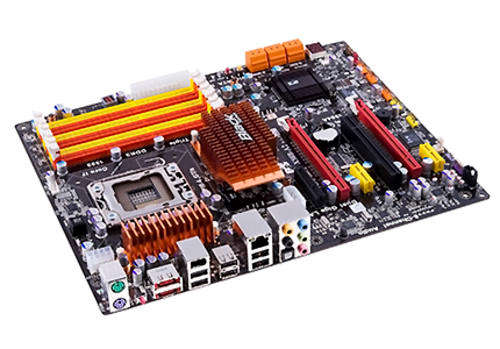

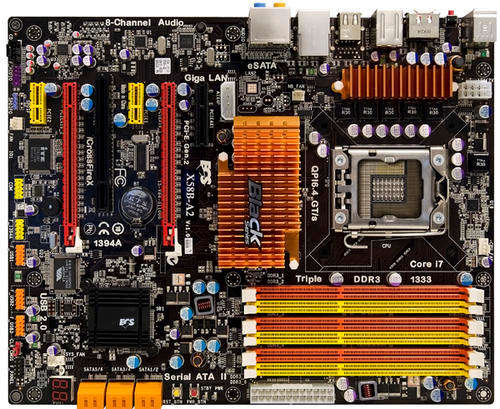

ECS X58 Extreme Black Edition
Socket LGA 1366
FAULTY ONBOARD USB
(This was the only issue I had, However I cannot confirm if other issues exist)
I CAN SUPPLY A PCI USB CARD WITH 2 USB PORTS FOR AN EXTRA R200
The Top-of-the-range Black Series X58B-A “Nehalem” Motherboard with LGA1366 socket has a QPI bus speed of 6.4GT/sec; as well as 6x Tri-channel DDR3 DIMM slots which support up to 24GB of DDR3 memory. The dual x16 PCI Express 2.0 slots features the support for ATI’s CrossFireX technology that brings incredible gaming experience to gamers. Its onboard 6x SATA II ports equipped with Intel Matrix Technology and RAID 0, 0+1, & 5 compatibility plus the 2x E-SATA connectors offer plenty of storage capabilities. The rear port has a unique clear-CMOS button for convenience as well as a single IEEE 1394 port and 6x USB ports. The MOSFETS and chipsets are cooled by the highly specialised ECS QoolTech II cooling system and Solid State Capacitors are found throughout the board which add both durability and longevity. In addition the X58B-A features Dual GigaLAN and Realtek 8CH HD Audio and OC tweaking is available through the M.I.B Overclocking utility essential for enthusiasts. This brings your choices of ultimate high-end motherboards down to one.
Detailed Specs:
CPU
LGA1366 socket for Intel Core i7 high-end desktop processors
QPI 4.80GT/s to 6.40GT/s
6 Phase Power Design with VRD 11.1 Compliant
CHIPSET
Intel® X58 & ICH10R
North Bridge: Intel® X58
South Bridge: Intel® ICH10R
MEMORY
Triple-channel DDR3 memory architecture
6 x 240-pin DDR3 DIMM socket support up to 24GB
Support DDR3 OC1600/1333/1066/800 DDR3 SDRAM
Supports Intel® Extreme Memory Profile (XMP)
EXPANSION SLOT
2 x PCI Express Gen 2.0 x16 slots
1 x PCI Express x4 slot
2 x PCI Express x1 slots
1 x PCI slot
STORAGE
Support by Intel® ICH10R
6 x Serial ATAII devices
supports RAID0, 1, 5, 0+1
Support by JMicron® JMB362
2 x eSATAII 3.0Gb/s devices
AUDIO
Realtek ALC 888S-VC supports 8-channel HD audio
IEEE 1394a
Support by VIA VT6308P
up to 2 IEEE 1394a ports
(1 on the back panel, 1 via the IEEE 1394a brackets connected to the internal IEEE 1394a headers)
Heat Pipe
ECS QoolTechII Heat Pipe
Dual Giga LAN
Dual Realtek 8111C PCIe GigaLAN Controllers
REAR PANEL I/O
1 x PS/2 keyboard & PS/2 mouse connectors
6 x USB 2.0 ports
1 x Clear_CMOS button
2 x eSATA 6.0Gb/s ports
1 x IEEE 1394 port
2 x RJ45 LAN connectors
1 x Audio port (1x Line in, 4x Line out, 1x Optical SPDIF Out)
INTERNAL I/O CONNECTORS & HEADERS
1 x 24-pin ATX Power Supply Connector & 8-pin 12V Connector
6 x Serial ATA 3Gb/s connectors
3 x USB 2.0 headers support additional 6 USB ports
1 x Clear CMOS header
1 x Front panel header
1 x Front panel audio header
1 x 1394a header
1 x CD in header
1 x 7S-LED Display
1 x Buzzer
4 x FAN Connectors
1 x SPDIF out header
1 x 4-pin power connector for VGA card
1X Power on LED (Green light)
1 x PWR button/ 1 x RST button
1X Stand by LED (Red Light)
1 x COM header
SYSTEM BIOS
AMI BIOS with 16Mb SPI Flash ROM
Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI
Supports ACPI revision 1.0 specification
ECS M.I.B Support Over-Clocking:
CPU Voltage : Adjustable CPU voltage from 0.5V to1.6V
NB (IOH )Voltage: Adjustable NB (IOH) voltage from 0.011V to 0.693V
CPU VTT Voltage: Adjustable CPU VTT voltage from 0.013V to 0.481V
SB(ICH10R) Voltage: Adjustable SB (ICH10R) voltage from 0.05V to 0.15V
VDIMM : DRAM voltage control from 0.015V to 0.945V
Support PCI-E over-clocking function
Support CPU over-clocking function: Adjustable CPU Clock Multiplier
FORM FACTOR
ATX Size, 305mm*244mm
PAYMENT TO BE MADE WITHIN 24HRS OF AUCTION BEING WON
COLLECTIONS ARE WELCOME
IF YOU HAVE ANY QUERIES PLEASE FEEL FREE TO ASK
CHECK OUT OUR OTHER LISTINGS
ZDTech
