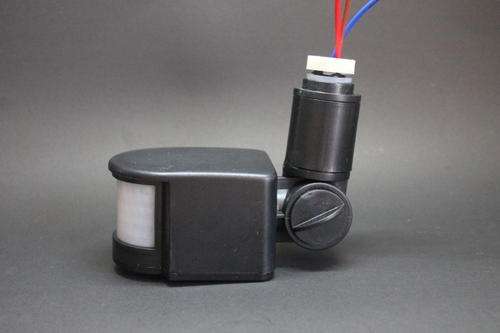

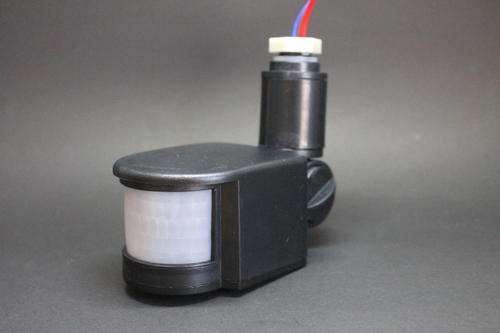

PIR Switch Infrared Motion Sensor
Detection Range: 12Mtr

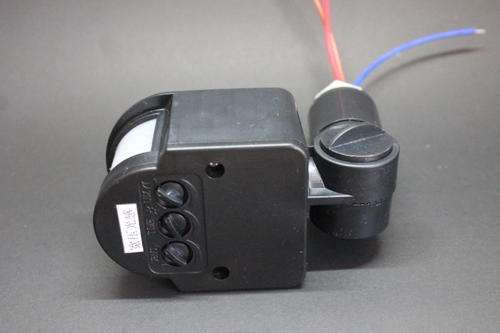

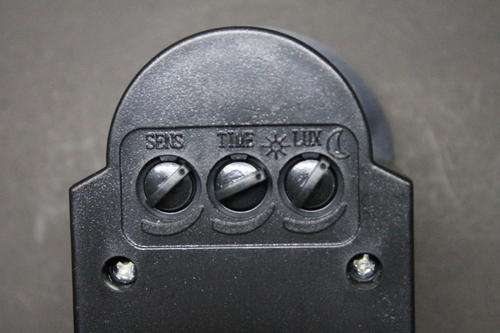

Delay time: 5 seconds ~ 6 points (adjustable)
Environment illumination: 2 ~ 2000 lux (adjustable)
Detection Range: 12Mtr
Working Current: 220 - 240V
Installation height: 1.8 m to 2.5 m
Material: ABS
External dimensions: 60 * 47 * 156 mm
Installation: (open hole diameter 16 mm)
Connection explanation:
N - blue (join to neutral of 220V power input)
L - brown (join to live of 220V power input)
Sensor output - red (join to live input of Led Driver for Led Floodlight) or (join directly to lamp for 220V light)
Blue and brown is input power
Blue and red is joint load
