The AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) developed and patented by FLYSKY is specially developed for all radio control models. Offering superior protection against interference while maintaining lower power consumption and high reliable receiver sensitivity, FLYSKY's AFHDS technology is considered to be one of the leaders in the RC market today.
Bidirectional Communication
Capable of sending and receiving data, each transmitter is capable of receiving data from temperature, altitude and many other types of sensors, servo calibration and i-BUS Support.
Multi-channel Hopping Frequency
This system bandwidth ranges from 2.408GHz to 2.475GHz. This is divided in 135 channels. Each transmitter hops between 16 channels (32 for Japanese and Korean version) in order to reduce interference from other transmitters.
Omni-directional Gain Antenna
The high efficiency Omni-directional high gain antenna cuts down on interference, while using less power and maintaining a strong reliable connection.
Unique ID Recognition System
Each transmitter and receiver has it's own unique ID. Once the transmitter and receiver have been paired, they will only communicate with each other, preventing other systems accidentally connecting to or interfering with the systems operation.
Low Power Consumption
The system is built using highly sensitive low power consumption components, maintaining high receiver sensitivity, while consuming as little as one tenth the power of a standard FM system, dramatically extending battery life.
Specifications:

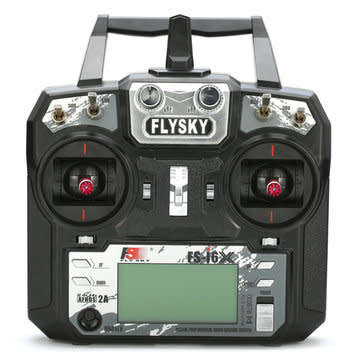

FS-i6X Specifications:
- Item: FS-i6X RC Transmitter
- Models: 20
- Channel: 6-10 (Default 6)
- Model Type: Fixed-Wing/Glider/Helicopter
- RF Range: 2.408-2.475GHz
- RF Power: < 20dBm
- RF Channel: 135
- Bandwidth: 500KHz
- 2.4GHz System: AFHDS 2A / AFDHS
- Modulation Type: GFSK
- Stick Resolution 4096
- Low Voltage Warning: < 4.2V
- DSC port: PS/2 Port PPM
- Chargeable: No
- Antenna Length: 26mm (Dual Antenna)
- Weight: 392g
- Power: 6V DC 1.5AA*4
- Display: STNTransflective Display, LCD 128x64 Lattice, VA 73x39mm, LCD with white backlight
- Size: 174x89x190mm
- Color: Black
iA6B RX Specs:
This FlySky FS-iA6B 6ch Receiver works great with the FlySky FS-i6 Controller. This compact 6 channel receiver is great for any model using up to 6 channels and, with a range exceeding 500 meters, it can be considered to be full range for all but the most demanding of applications. The receiver has end-on connectors to enable a neat installation in tight spaces. Built in connectors allow you to use any of the optional FlySky telemetry sensors. Dual antennas give the FS-iA6B excellent reception and interference rejection capability. With easy binding, compact dimensions, optional telemetry and dual antennas!
Specifications
- Channels: 6 Channels
- Model type: Airplane / Glider / Helicopter
- Frequency range: 2.4--2.48GHZ
- Band width number: 140
- Transmitting power: not moer than 20dBm
- RF receiver sensitivity: -105dbm
- 2.4G mode: the second generation of an enhanced version of the automatic FM digital system
- Encoding: GFSK
- Antenna length: 26mm * 2 (dual antenna)
- Input power: 4.0-6.5V DC
- Dimension: 47 * 26.2 * 15mm
- Weight: 14.9g
- Color: Black
- i-Bus interface: Yes
- Data acquisition interface: Yes
