If you need only the CT, please check this : >>> Many buyers are response: Why test data is wrong Voltage * Current = Power,Butpower is less than the actual test voltage * Current,Why is that
Answer:There are three types of power:
Active Power (P represents / unit W)
Reactive power (Q represents / unit Var)
Apparent power(S represents / unit VA)
Here that We only talk about Active Power, others please google it:
P = U * I * cos,cos it represents the power factor,purely resistive load (Such as incandescent, heater, etc.) the power factor is generally close to 1,Between the inductive and capacitive load load power factor 0-1. So purely resistive load test time,
P is substantially equal to or close to U * I.When Inductive or capacitive load test(Such as refrigerators, washing machines, televisions, computers, etc.)
P As for how much to keep the power factor related to the specific,Different for each appliance power factor.
Note:

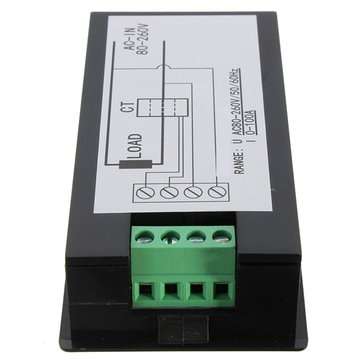

1. This module is suitable for indoor, not outdoor use. 2. applied load can not exceed the rated power. 3. The wiring order can not be wrong. Specification:
Apply to power grid voltage range: 110V-220V Working voltage: 80 ~ 260VAC Test voltage: 80 ~ 260VAC Rated power: 100A / 22000W Working Frequency: 45-65Hz Measurement accuracy: 1.0 ( Error 1%)
Dimensions ofLED display screen: 51 x 30mm Feature:
Network voltage direct power supply, no external power supply, measurement precision, large-screen LCD liquid crystal screen display clearly. A. Function
1. electrical parameter measurement function (voltage, current, active power, power). 2. overload alarm function (over power alarm threshold, the backlight and power flicker tips). 3. The power alarm threshold preset function (can set up their own power alarm threshold). The power button clear function. 5. Power-down data storage function. 6. Large-screen LCD screen full display function (display voltage, current, active power, power). 7. Backlight. B. Display and key
Display Interface Display voltage, current, power, energy parameters from the large-screen LCD screen simultaneously. Display Format 1. Power: measurement range 0 ~ 22kW 1kW display format within 0.0 ~ 999.9W; From 1kW display format 1000 ~ 9999W; 10kW above the display format 10.0 ~ 22.0kW. 2. Power: measurement range 0 ~ 9999kWh 10kWh within the display format 0 ~ 9999Wh; Above 10kWh display format 10 ~ 9999kWh; 3. Voltage: Test Range 80 ~ 260V Display Format 80 ~ 220V 4. Current: Test Range 0 ~ 100A Display Format 0.00 ~ 99.99A. Package included:
1 x 100A Power Monitor Module AC Meter Panel
1 x CT
,
,
,
,
