Gigabyte GA-630

Must go! Make me an offer.

Tech Specs

Core Clock: 110 MHz
Memory Clock: 130 MHz
Memory Type: SG-RAM
Memory Size: 16MB
PCB Date: 9911
BIOS Version: 1.00.10-SG
BIOS Date: 02/09/99
Notes: Fastest Banshee ever produced, still has some OC headroom

Description
The GA-630 can be considered a masterpiece.

Most Banshees can't even be overclocked as far as the Gigabyte card is clocked in factory default.

This awesome 3dfx Banshee has been part of my collection since 2002 and is well looked after.

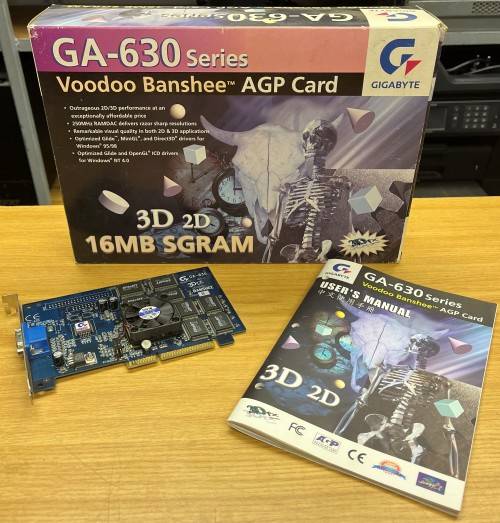

It is one of two but the only one with the original box, which is in very good condition.

The Voodoo Banshee AGP 16 MB was a graphics card by 3dfx, launched on June 22nd, 1998. Built on the 350 nm process, and based on the Banshee graphics processor, in its 500-0013-04 variant, the card supports DirectX 6.0. Since Voodoo Banshee AGP 16 MB does not support DirectX 11 or DirectX 12, it might not be able to run all the latest games. The Banshee graphics processor is an average-sized chip with a die area of 137 mm² and 4 million transistors. It features 1-pixel shader and 0 vertex shaders, 1 texture mapping unit and 1 ROP. Due to the lack of unified shaders, you will not be able to run recent games at all (which require unified shader/DX10+ support). 3dfx has paired 16 MB SDR memory with the Voodoo Banshee AGP 16 MB, which are connected using a 128-bit memory interface.

The GPU is operating at a frequency of 110 MHz, and memory is running at 130 MHz.

Being a single-slot card, the 3dfx Voodoo Banshee AGP 16 MB does not require any additional power connector, its power draw is rated at 15 W maximum.

Display outputs include 1x VGA. Voodoo Banshee AGP 16 MB is connected to the rest of the system using an AGP 2x interface.

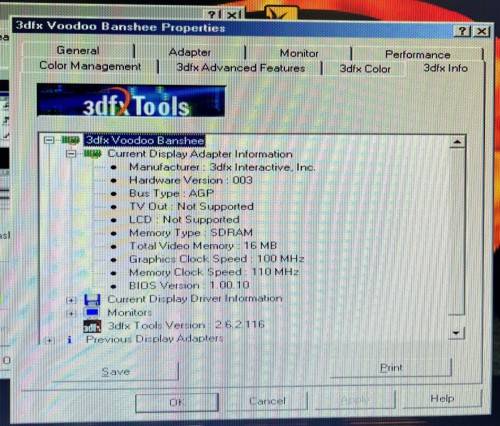

This card was tested and is working.
This is a collector's item and will not run the latest games.

Note: The Gigabyte GA-630 was known for its noisy fans.
No Warranty!
