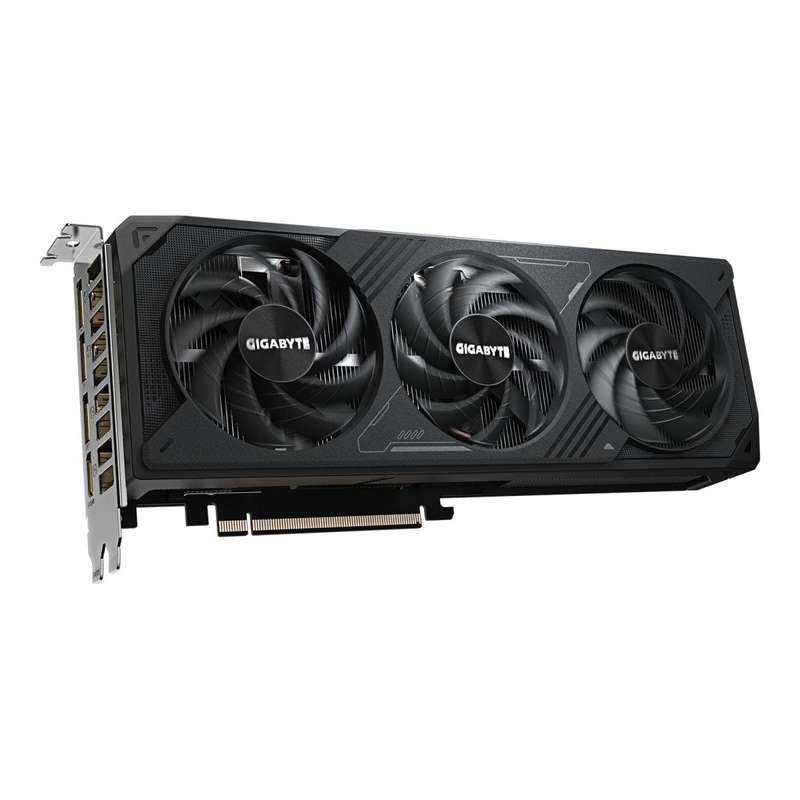

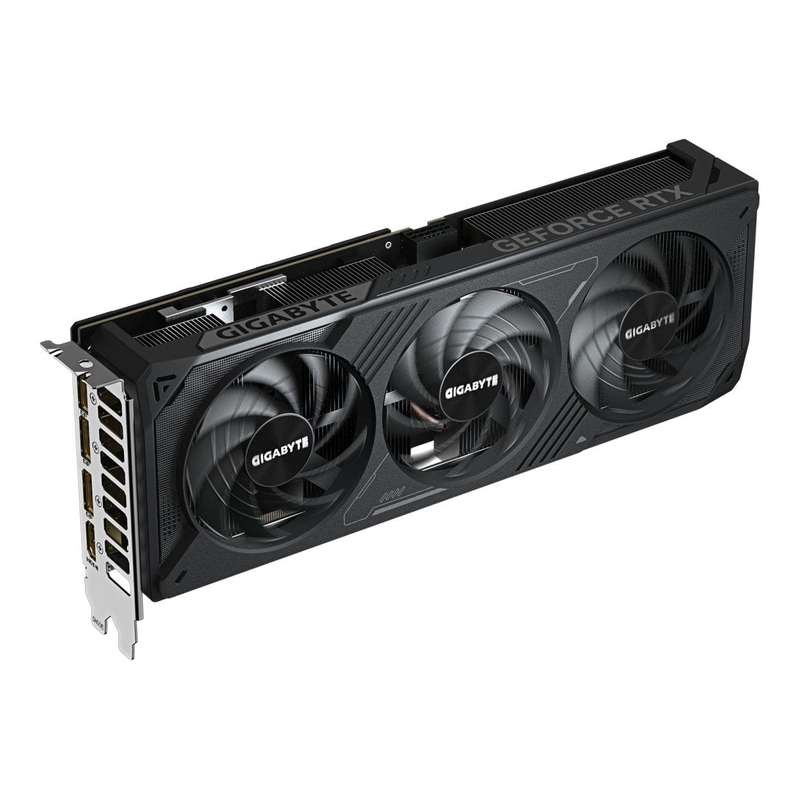

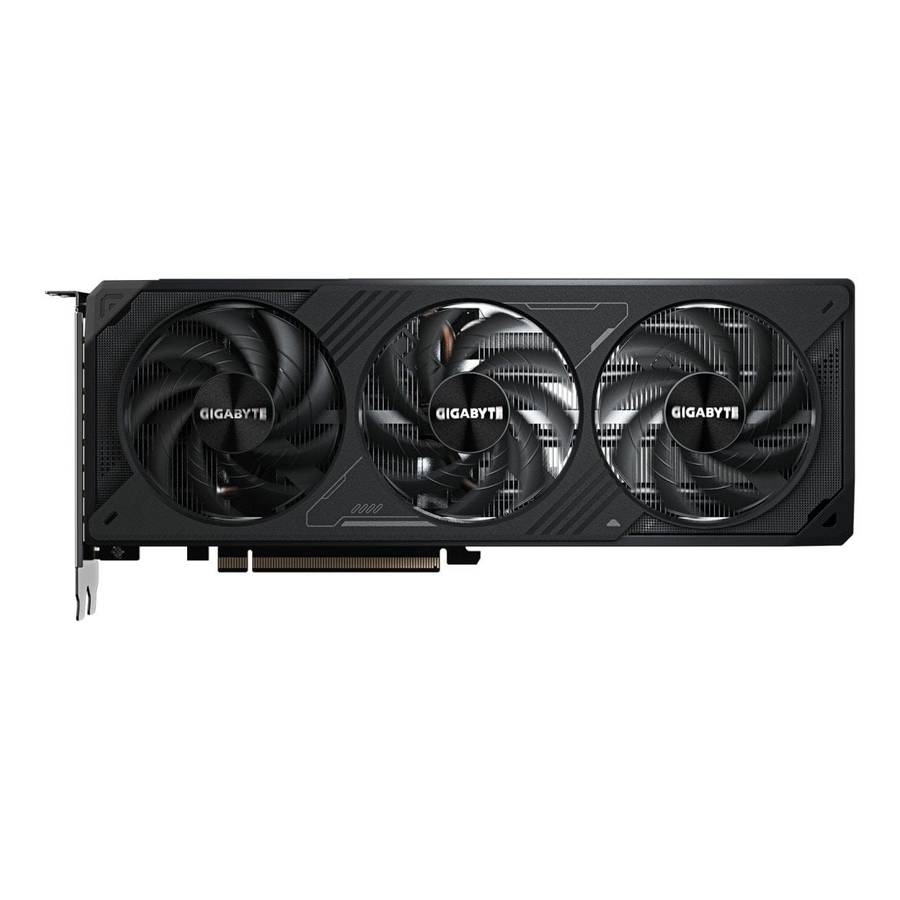

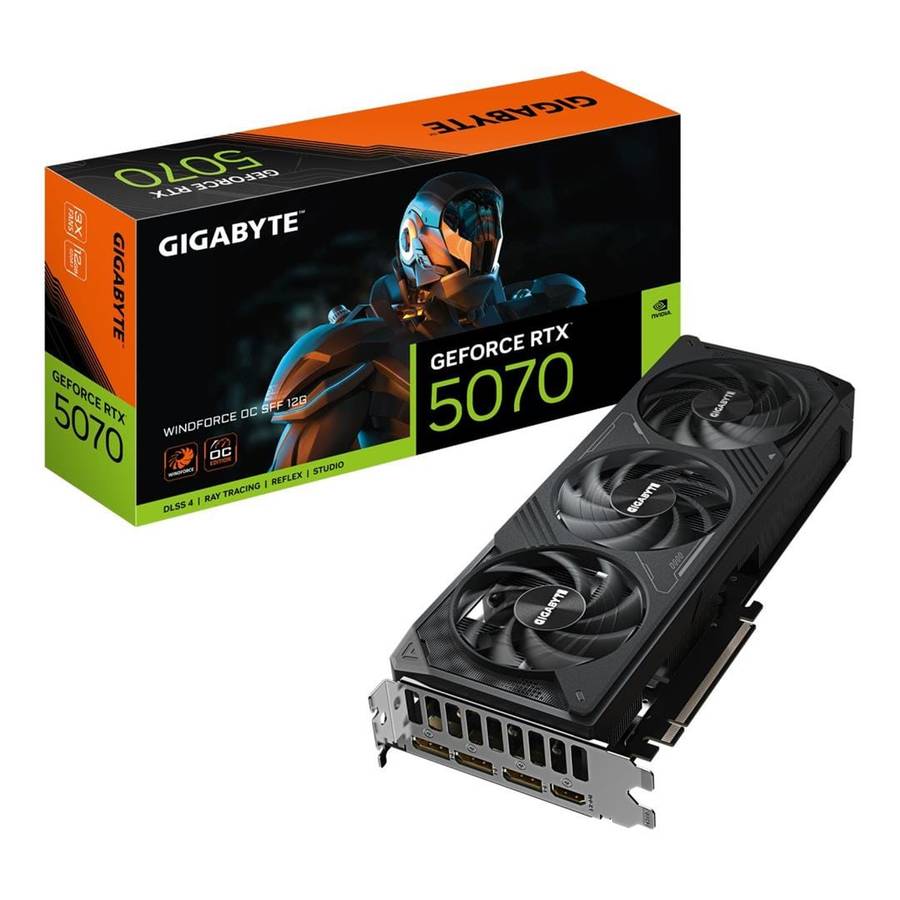

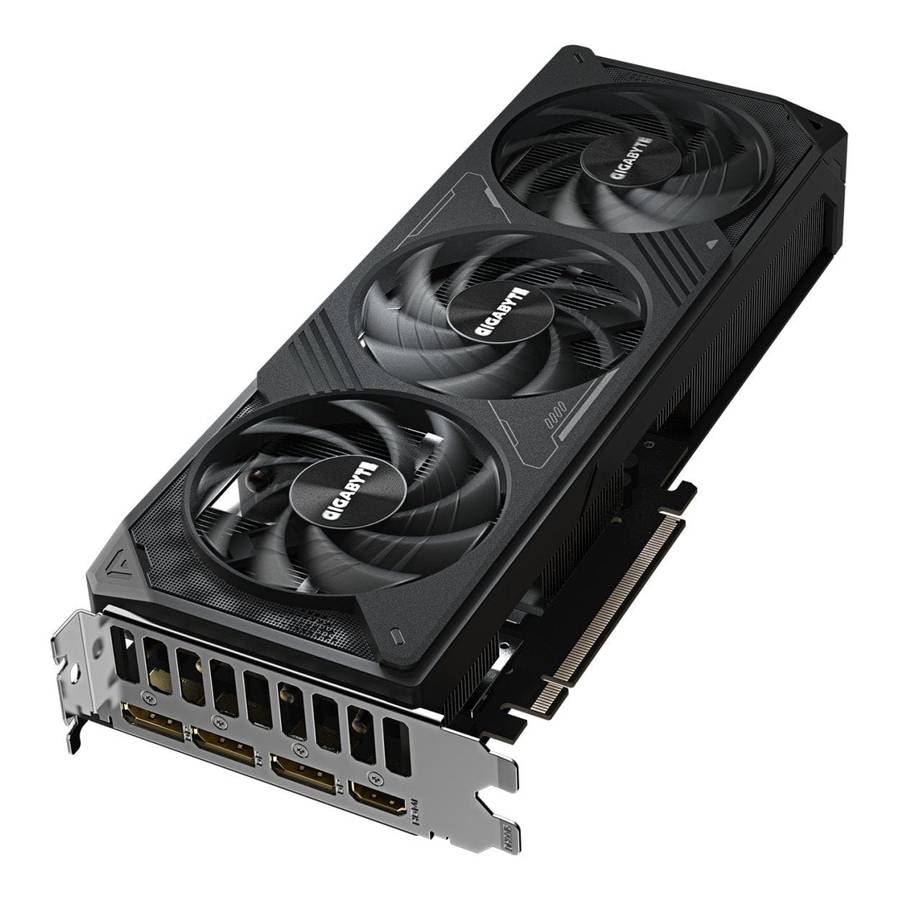

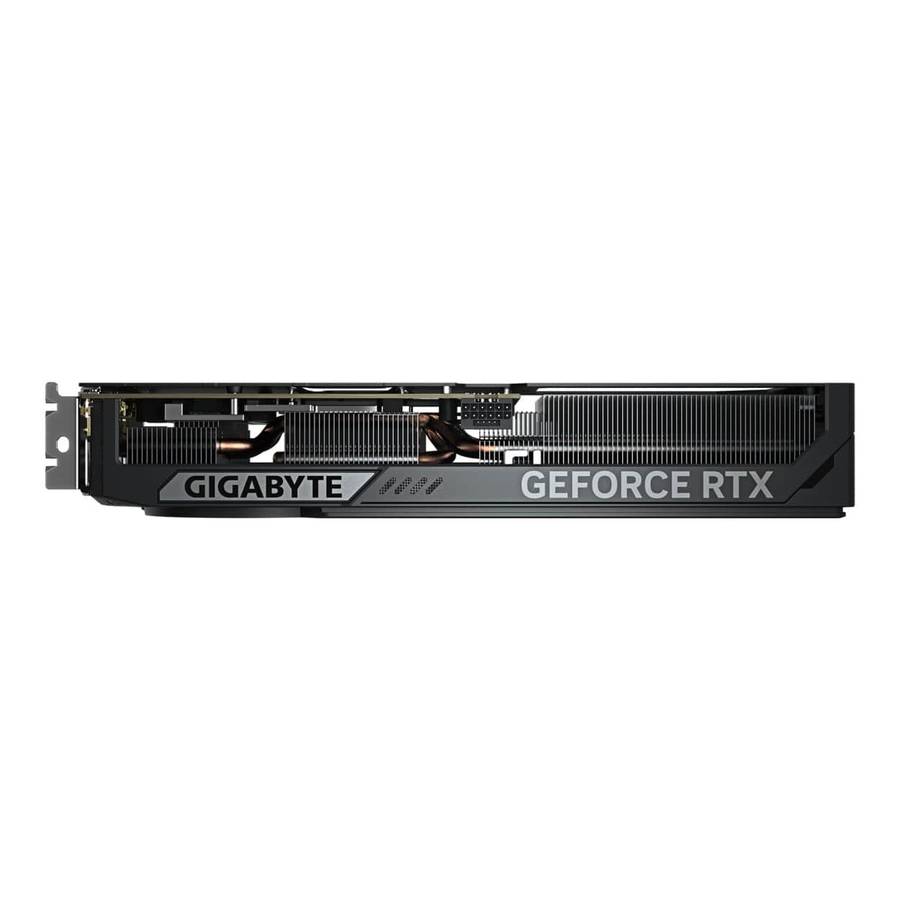

Gigabyte GeForce RTX 5070 Windforce OC SFF 12G 12GB GDDR7 Graphics Card GV-N5070WF3OC-12GD
Features
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Powered by GeForce RTX 5070
- Integrated with 12GB GDDR7 192bit memory interface
- WINDFORCE cooling system with Hawk fan, Server-grade thermal conductive gel
- NVIDIA SFF-ready
- Reinforced structure
The Ultimate Platform for Gamers and Creators
- Fifth-Gen Tensor Cores - Max AI performance with FP4 and DLSS 4
- New Streaming Multiprocessors - Optimized for neural shaders
- Fourth-Gen Ray Tracing Cores - Built for Mega Geometry
- AI-Enhanced Graphics and Performance - NVIDIA DLSS 4 with Multi Frame Generation
- Game-Winning Responsiveness - NVIDIA Reflex 2 with Frame Warp
- True-to-Life Graphics - Full ray tracing with neural rendering
- Digital Humans and AI Assistants - NVIDIA ACE
- Accelerate Your Creativity - NVIDIA Studio creator tools and technology
- Enhance Any Video with AI - NVIDIA Broadcast and ninth-gen NVIDIA Encoder
- Performance and Reliability - NVIDIA app with Game Ready and Studio Drivers
- The Ultimate Gaming Display Technologies - NVIDIA G-SYNC
WINDFORCE Cooling System
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a large copper plate, 3D active fans, and screen cooling.
Hawk Fan
The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.
Graphene Nano Lubricant
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
Alternate Spinning
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D Active Fan
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
Server-Grade Thermal Conductive Gel
To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.
Large Copper Plate & Composite Copper Heat Pipe
The large copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
Screen Cooling
Extended heatsink allows air to pass through, providing better heat dissipation.
Excellence in Essential
NVIDIA SFF-Ready
Complying with NVIDIA's small form factor specification, our graphics cards pack powerful performance into a small form factor, achieving the perfect balance of size and power.

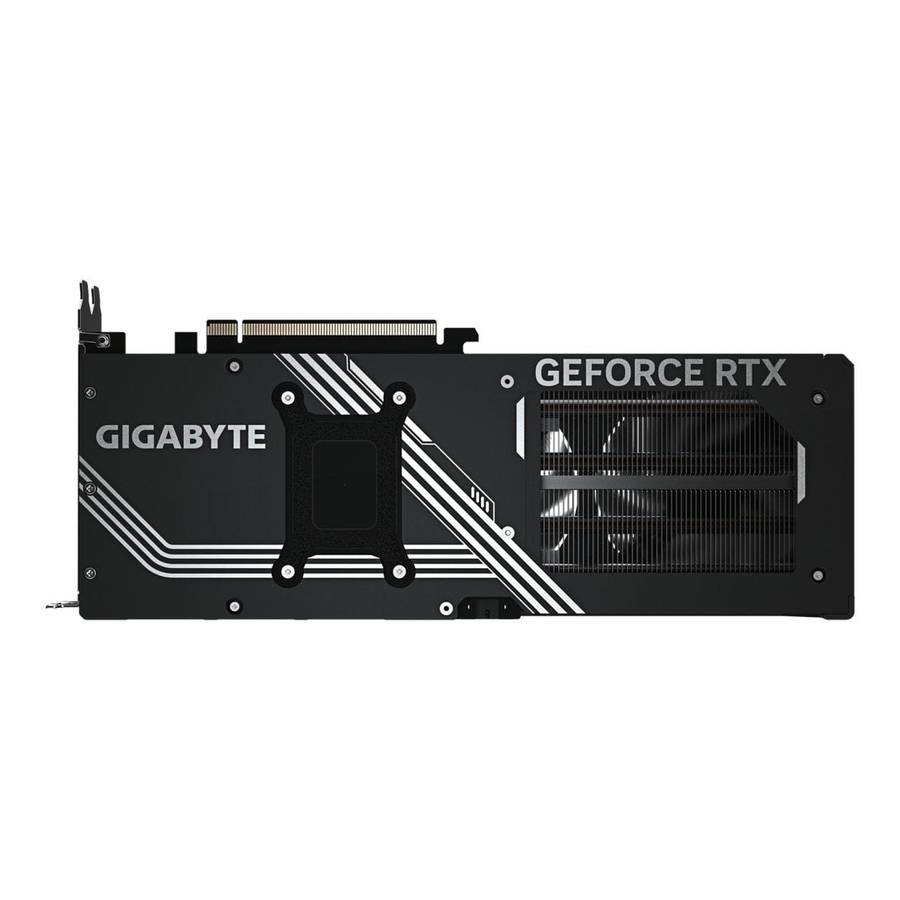

Reinforced Structure
The reinforced metal backplate with a bent edge, securely fastened to the I/O bracket, provides exceptional structural integrity.
Superior Craftsmanship
Ultra Durable
Ultra Cooling - Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
Low Power Loss - Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
Longer Life - Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
Friendly PCB Design
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Technical Specification
Product: Gigabyte GeForce RTX 5070 WINDFORCE OC SFF 12G
Core Clock: 2542 MHz (Reference card: 2512 MHz)
CUDA Cores: 6144
Memory Clock: 28 Gbps
Memory Size: 12 GB
Memory Type: GDDR7
Memory Bus: 192 bit
Card Bus: PCI-E 5.0
Digital max resolution: 7680 x 4320
Multi-view: 4
Card size: L=282 W=110 H=50 mm
PCB Form: ATX
DirectX: DirectX 12 API
OpenGL: 4.6
Recommended PSU: 750W
Power Connectors: 1x 16 Pin

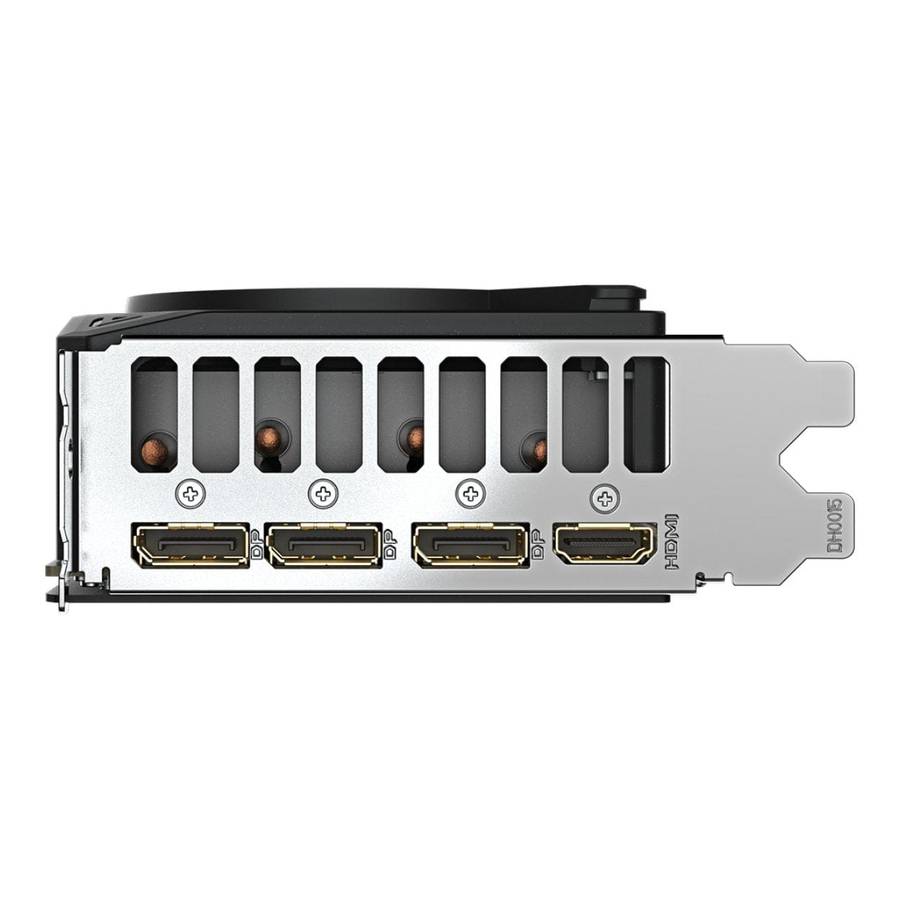

Output
- 3x DisplayPort 2.1b
- 1x HDMI 2.1b
Accessories
- Quick g...
