8-Channel USB Oscilloscope for Automotive Vehicle Testing

Product features:

•  8 channels

•  Real-time sample rate 2.4MSa/s

•  Memory depth 4K points

•  Pass/Fail

•  FFT

•  20 Automatic measurements

•  Automatic cursor tracking measurements

•  Waveform storage, record & replay dynamic waveforms

•  User selectable fast offset calibration

•  Add, subtract and multiply, mathematic functions

•  Selectable 20 MHz bandwidth

Vehicle Diagnostic:

•  Primary Ignition (Voltage & Current, Crankshaft Sensor)

•  Secondary Ignition Distributor Type (Plug Lead, King Lead)

• Secondary DIS or CPC (Positive/Negative-fired)

• Secondary Coil Output Diagnosis

•  Air Flow Meter (Hot Wire, Air Vane)

• Air Flow Sensor (BOSCH Diesel)

• Air Intake Pressure Sensor (BOSCH Diesel)

• Camshaft (Inductive, AC Excited, Hall Effect)

• Camshaft (BOSCH Common Rail Diesel)

• Crankshaft Inductive Running, Cranking

•  Crankshaft Hall Effect, Sensor & Primary Ignition

•  Distributor Pick-up (Hall Effect)

• Distributor Inductive Pick-up Cranking, Running

• Lambda Sensor Titania, Zirconia, -Pre & Post cat

• Throttle Position Potentiometer, Switch

• Throttle Pedal Switch (Bosch Diesel)

• ABS Analog/Digital Speed Sensor

• Coolant Temperature (5V, GM/Vauxhall Simtec)

• Crash Sensor

• MAP Analog, Digital

• Hall Effect Road Speed Sensor

• Accelerator Pedal (Bosch Diesel)

• CAN Bus Data View, Signal Integrity, LH Long Capture

• LIN Bus

• Single & Multi-point Injector (Voltage, Current)

•  Injector Voltage, Current & Primary Ignition

• Common Rail Diesel (Current)

• Injector Bosch CDi 3 (Current)

• Injector Bosch Diesel (Idling, Accelerating)

• Diesel Glow Plugs

• Electronic Fuel Pump

• Carbon Canister & ERG Recirculation Solenoid Valve

• Stepper Motor Example 1,2

• Idle Speed Control Valve (Rotary, Electromagnetic)

• Throttle Servomotor (Idling, Accelerating)

• Bosch CDi3 Quantity Control Valve, Pressure Regulator Valve

• Variable-Speed Cooling Fan On/Off

• Variable Camshaft Valve Timing

• Charging Circuits Current&Voltage Starting/Idling 24V

• Charging Circuits Alternator AC Ripple/Diode Diagnosis

• Relative Compression Petrol, Diesel

• Starting Voltage Drop

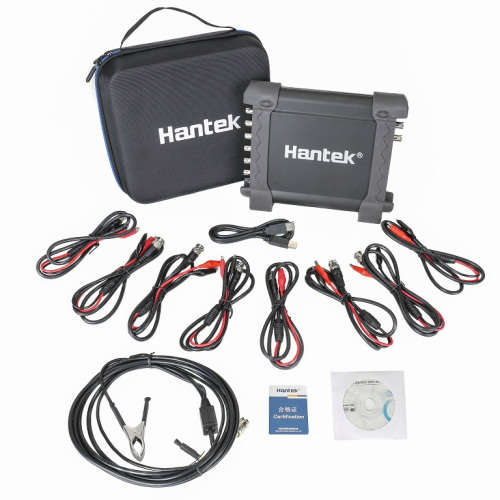

Package Includes:
8 BNC-crocodile Test Probes, Auto-probe for ignition system, USB cable for PC, User Manual, PC-Software CD.
