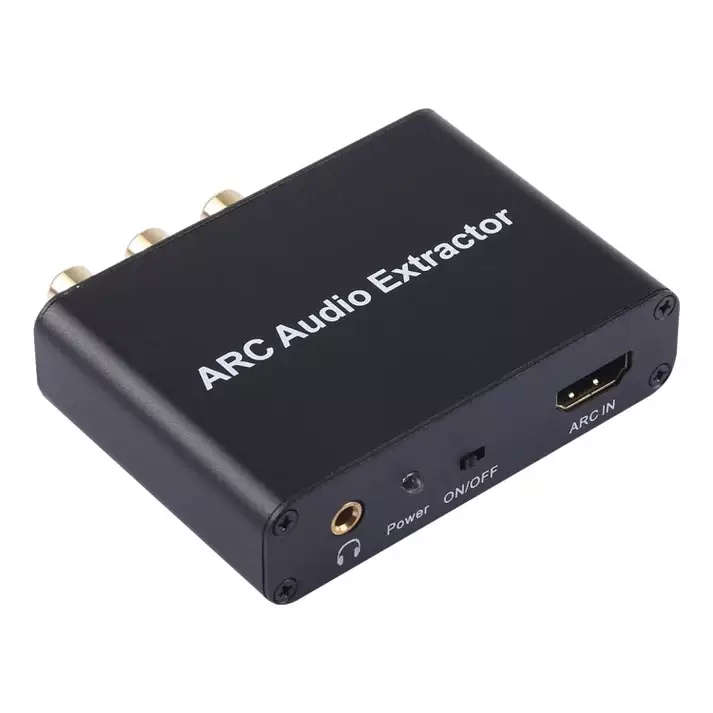

HDMI ARC to Optical Toslink | SPDIF Coaxial or Analogue RCA Audio extractor | Supports 192Khz input

HDMI ARC to Optical Toslink | SPDIF Coaxial or Analogue RCA Audio extractor | Supports 192Khz input

This HDMI audio return & DAC audio converter can return the sound of a TV that supports ARC function to the adapter's ARC loop output interface, optical fiber, Coaxial, and 3.5mm headphone jack output through the HDMI/ARC interface. The audio signal is converted into a stereo analog signal, and it can support optical fiber and ARC output at the same time, which perfectly solves the interface compatibility problem between the TV and the audio system. This product is very suitable for home theaters, teaching, training structures, conference rooms, home appliance stores and other places.

Specifications:

• Shell Material:Aluminum Alloy
• Color:Black
• Power SupplyInterface:DC5.5
• Maximum operating current:200mA
• Working environment temperature:-10~+55
• Storage temperature:-20~+60
• Operating Humidity:10~90%RH(non-condensing)
• Storage humidity:5~95%RH(non-condensing)
• Case Size:90*73*21(mm)

Features:

• Support SPDIF output.
• Support COAXIAL output.
• Support RCA stereo output.
• Support 3.5mm stereo headphone output.
• 3.5mm stereo headphone port equipped with high performance audio amplifier
• Support switch noise reduction
• Support automatic signal mute function
• Support transmission of 192KHz audio sampling rate.
• Optical fiber coaxial interface supports 5.1 channel transmission.

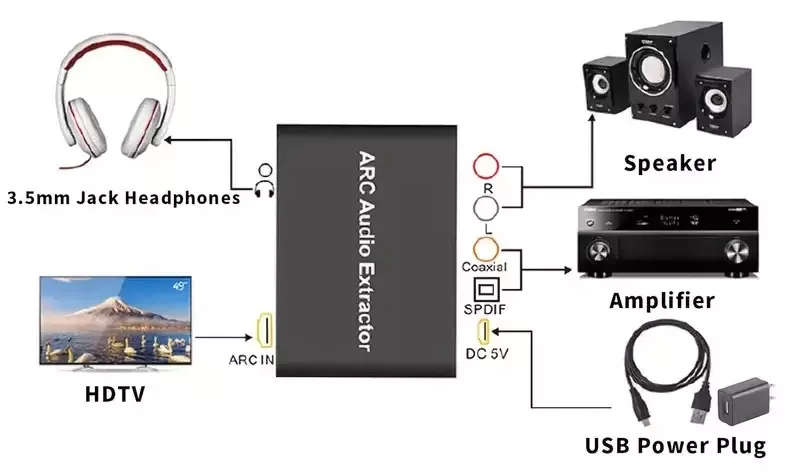

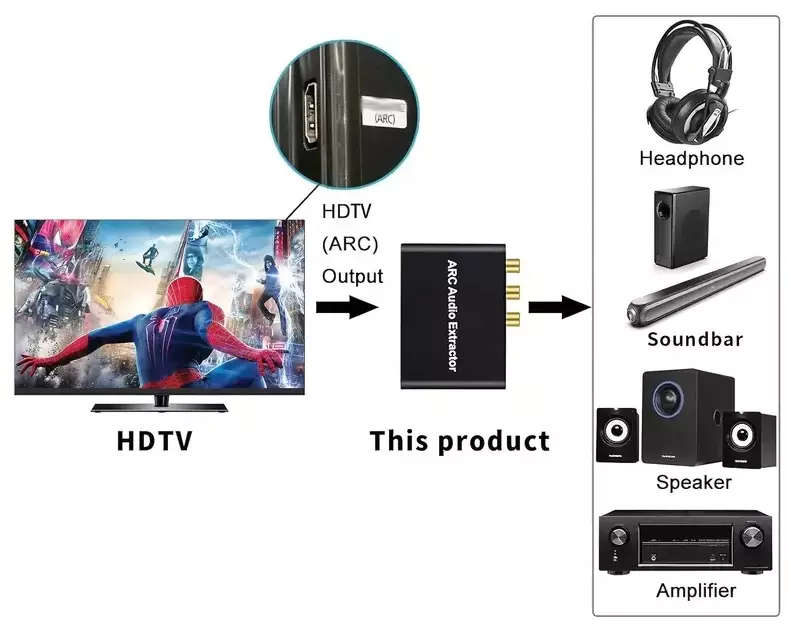

Example of Connection Diagrams below:
