NB: Solid Copper Cable is recommended.
The H.264 HDMI extender adopts standard Ethernet TCP/IP protocol, transmit HD video and audio over single cat6 cable, and support One-to-many applications with POE switches.
The equipment has excellent image processing and transmission capacity, makes signal transmission more smooth and steady, is a kind of economic and efficient way of HDMI signal extension.
Features
- Transmits HDMI video and audio signals up to 150m using a single CAT6 cable.
- Supports video resolution up to 1920*1080P@60Hz.
- Supports TCP/IP protocol for one-to-many and many-to-many applications with POE switches.

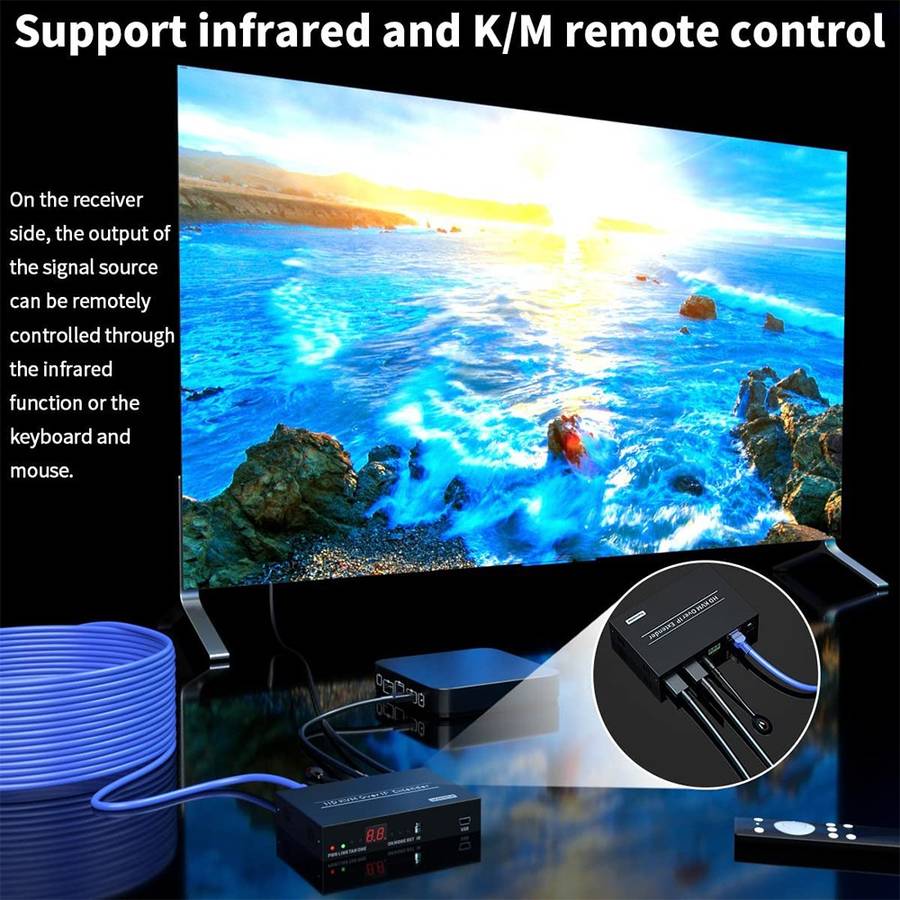

- Allows USB (Keyboard, Mouse) extension over IP.
- Compliance with HDMI 1.3 and HDCP 1.2 standards.
- High compatibility, automatically matches the source and display device.
- Built-in automatic adjustment system ensures smooth, clear, and stable images.
- Simple installation, plug and play.
Specifications
- HDMI Version: HDMI 1.3
- HDCP Version: HDCP 1.2
- Resolution: 1920x1080P@60Hz
Video
- Standards: HDMI 1.3; HDCP 1.2
- Compressed format: H.264
- Maximum pixel clock: 165MHz
- Maximum data rate: 6.75Gbps
- Resolution:1920X1080P@60Hz
- Connector: HDMI-A
- Impedance: 100
IR
- Interface: 3.5mm earphone seat
- Signal direction: Unidirectional
- Signal type: Digital
- IR frequency: 20-60kHz
UTP
- Interface: RJ45
- Transmission distance: CAT6 - 150m, CAT5E - 150m
Other
- Power supply: The power adapter: DC 12V, POE input voltage range:36~57V
- Power dissipation: MAX 3.3W
- Temperature Operating:: -5 ~ +70
- Humidity Operating:: 5% ~ 90%
- Dimension: 119*81.7*23mm

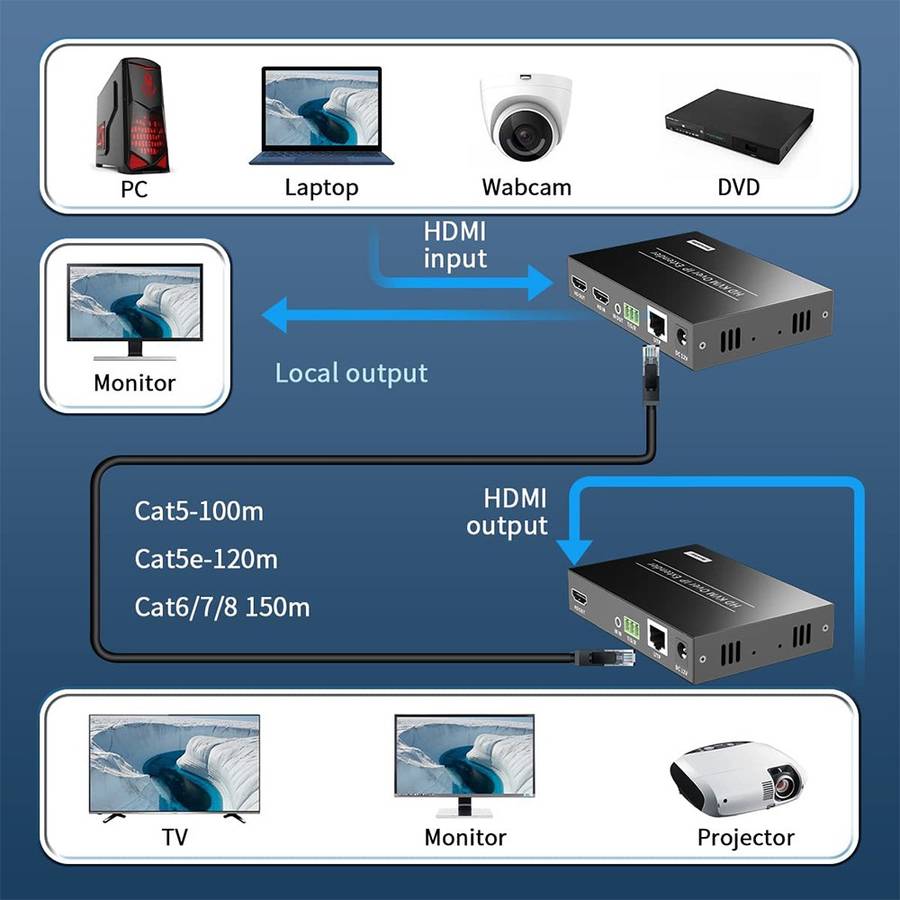

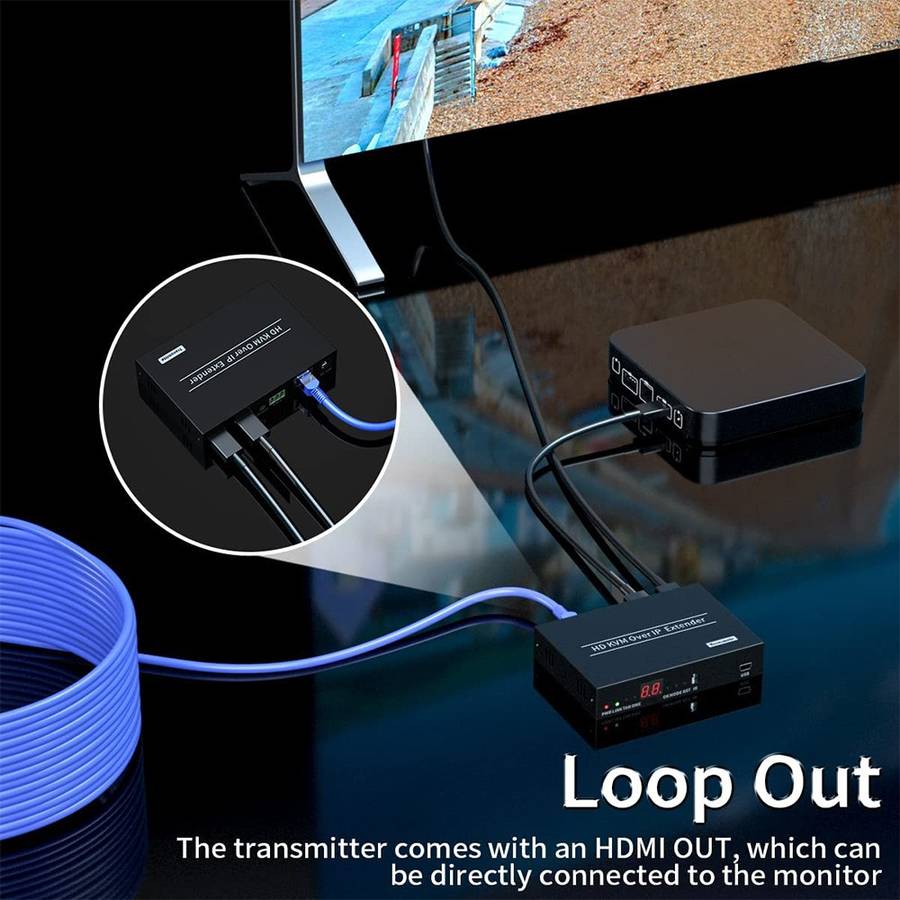

Connection instructions
- HDMI cable: Use an HDMI 1.3 cable within 3m. (at 1080P@60Hz)
- Ethernet cable: Use a Cat5e/6/7 cable within 150m
- Ethernet cable RJ45 wiring sequence: Follow the T568B wiring sequence (white orange, orange, white green, blue, white blue, green, white brown, brown)
Dimensions
- Package Dimensions: 22.6 x 16.8 x 7.6 cm
- Item Weight: 0.81 kg
How to set
- Red light: Indicates power
- Green light: Indicates signal

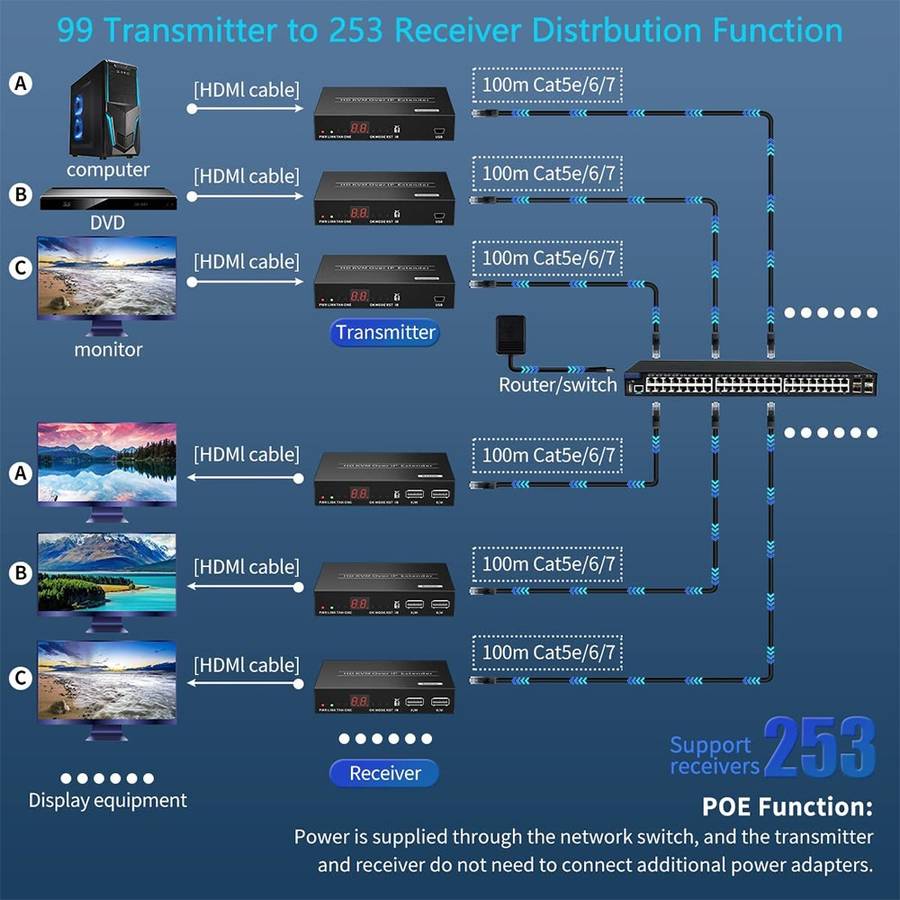

- Many-to-many setup: CANNOT set the same ID number on the TX. RXs will automatically search for the TX signal. For example, if TX is set to 02, RX should search for 02. - Set the ID number using the "TAN" and "ONE" buttons, then press "OK".
- One-to-many setup: Multiple RXs match one TX. For example, four "03" RXs match one "03" TX.
Reminders
- Before connecting the HDMI Extender Matrix, directly connect your signal source and monitor and check the signal status.
- If the Ethernet cable within 10 feet has no signal during testing, try using a longer cable.
- When connecting to a POE Switch, no adapter is required.
- If NOT using a POE Switch, two adapters need to be connected to the TX and RX for the devices to work properly.

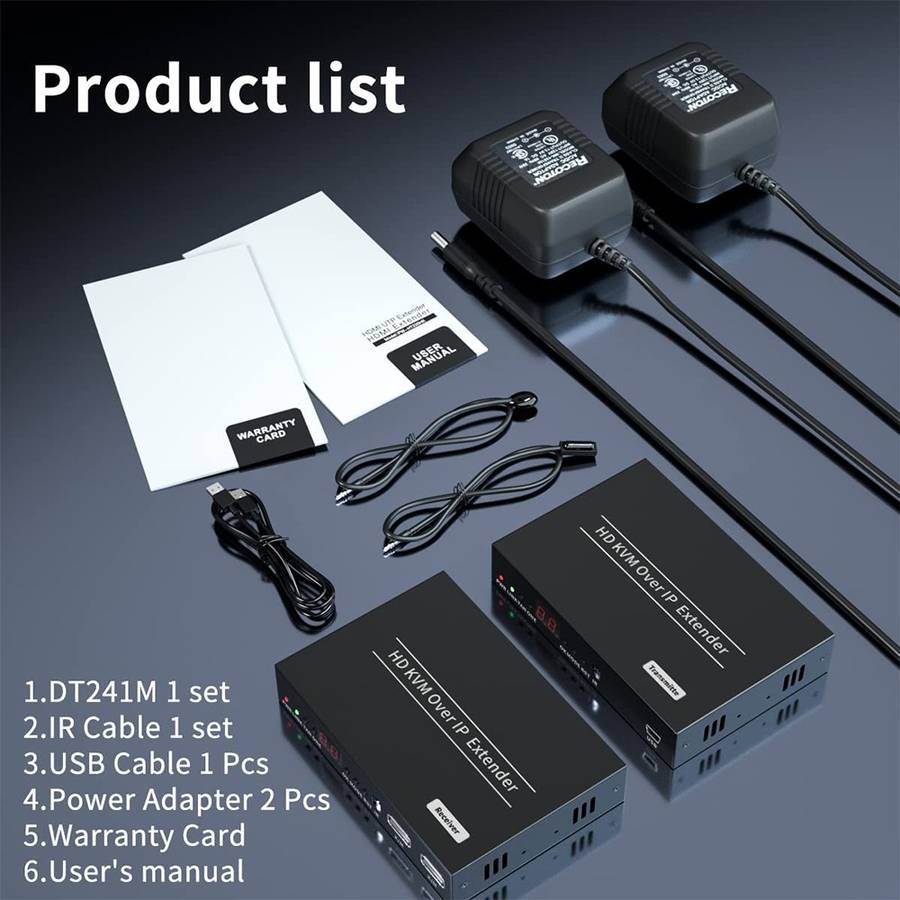

What's in the Box
1 x HDMI Transmitter
1 x Receiver
1 x USB-A to USB-MINI Cable
2 x Power Adapter
1 x Manual
1 x IR Cable (set)
