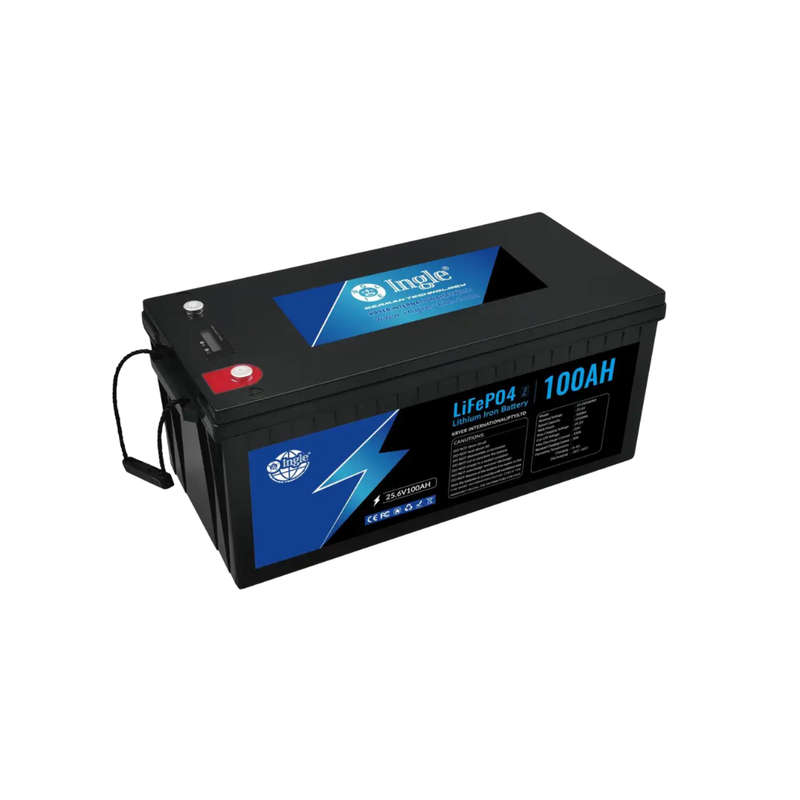

INGLE 25.6V 100AH Lithium Ion Battery (LiFeP04)

Description:
This 24V 100Ah Lithium Iron Phosphate (LiFePO) battery module is engineered for robust energy storage with exceptional durability and discharge performance. With more than 2000 cycles at 80% Depth of Discharge, it's designed to outlast traditional lead-acid batteriesoffering a lighter, safer, and more efficient energy source for demanding applications.

Whether you're powering an electric scooter, a solar storage bank, or a small UPS backup system, this battery delivers consistent performance even under high loads or extreme temperature conditions. It features a nominal capacity of 100Ah and provides 2560Wh of total energy, all housed in a durable IP65-rated ABS casing.

Key Features:

• Long-Lasting Performance: Over 2000 charge cycles at 0.5C and 80% DOD

• Lightweight Design: 40% lighter than equivalent lead-acid models

• High Power Output: Maintains strong discharge rates up to 100A max

• Safe Chemistry: LiFePO cells offer thermal stability and high safety standards

• Versatile Applications: Ideal for mobility devices, solar banks, backup UPS, and more

• Temperature Resilient: Functions from -20°C to 60°C without compromising output

• Drop-in Compatibility: Replaces traditional lead-acid batteries in many systems

• Sealed ABS Enclosure: IP65-rated for moisture and dust resistance

Technical Specifications:

• Nominal Voltage: 25.6V

• Capacity: 100Ah

• Energy Output: 2560Wh

• Charge Voltage: 29.2 ± 0.2V

• Discharge Cut-Off Voltage: 20V

• Standard Charge Current: 50A

• Max Charge Current: 100A

• Standard Discharge Current: 50A

• Max Discharge Current: 100A

• Charge Temp: 0°C to 55°C

• Discharge Temp: -20°C to 60°C

• Cycle Life: >2000 cycles @ 0.5C / 80% DOD

• Efficiency: 100% (charge), 9699% (discharge @ 1C)

• Self-Discharge: <3% per month

• Case Material: ABS, IP65 Rated

• Terminal Type: M8

• Dimensions (mm): 522 x 240 x 218

• Weight: ~20.3kg

What's in the Box:

• 1 x 25.6V 100Ah LiFePO Battery Module

Installation Requirements & Warranty Terms:

• Professional Installation Required: Must be installed by a qualified electrical wireman or master electrician.

• COC Compliance: Installation must conform to SANS 10142 regulations and include a valid Certificate of Compliance (COC).

• Warranty Claims: Must include installation photos, proof of qualified installer, and valid COC for processing.

• Warranty Duration: Manufacturer-backed 12-month limited warranty.
