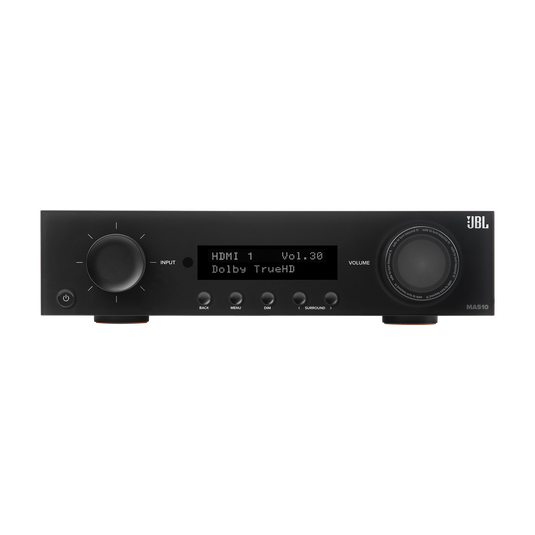

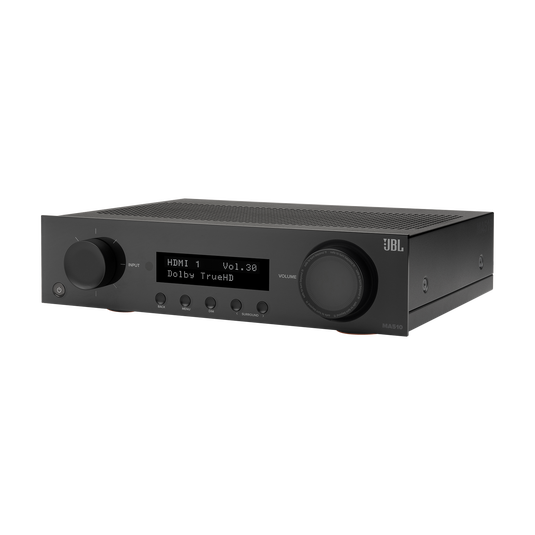

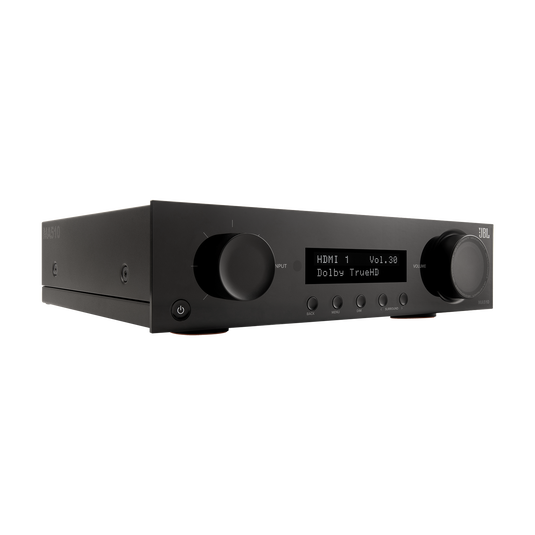

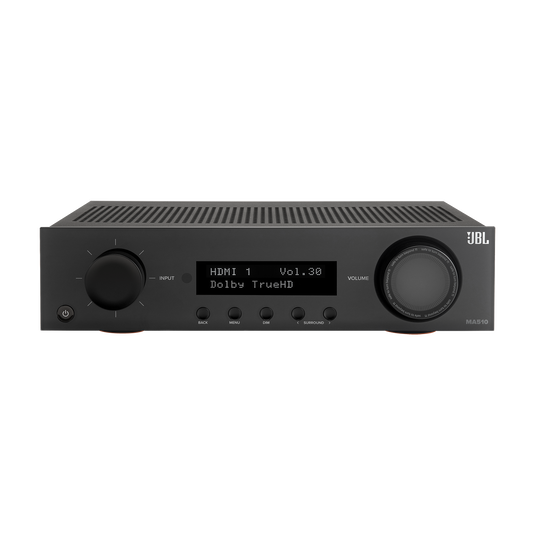

JBL MA510 5.2 Channel 8K AV Receiver - Black
Description
Bring both music and movies to life with true high fidelity.
The JBL MA510 is an AV Receiver that delivers spectacular realism with 8K HDMI specifications for a supreme home cinema experience. Seamlessly integrate your smart TV or projector with 4 HDMI inputs and 1 output, plus eARC. With native 5-channel decoding of Dolby and DTS formats, the MA510 can deliver incredible cinema experiences. It is designed with a passion for music and movies, bringing both to life with true high fidelity. Additional music content can be accessed via Bluetooth and network streaming. The MA510 features five channels of low noise Class D amplification for real world power to all channels.
Spectacular audio and video performance
5.2-channel AV receiver that delivers spectacular audio performance with 8K video for the ultimate home cinema experience.
Intuitive setup with a minimalist modern design
Seamless integration with smart TVs, gaming consoles, streaming, cable boxes and more with 4 HDMI inputs and 1 output, plus eARC.
High-performance immersive surround sound
Native 5-channel decoding of Dolby and DTS formats.
Features:
- Bring both music and movies to life with true high fidelity: Designed with a passion for music and movie, bring both to life with true high fidelity.
- Bluetooth and network Streaming: Stream music wirelessly via Bluetooth and network streaming (Apple Airplay 2, Google Chromecast).
- On-screen setup and operation: On-screen display for easy system setup and operation (via HDMI).
- Powerful amplification: Five channel of low noise Class D amplification for real world power to all channels.
- EZ Set EQ: EZ Set EQ provides easy-to-use room equalization for optimized sound quality.
General Specifications
HDMI eARC
Yes
HDMI Audio Return Channel
Yes
8K HDMI input connectors (HDMI 2.1, HDCP 2.3 up to 8K/60Hz, 4K/120Hz)
4
HDMI 2.1 enhanced gaming features
Gaming-VRR, ALLM, QFT, HFR (4K@120Hz)
HDR 10+, Dolby Vision
Yes , Yes
File format
MP3 / MPEG-4 AAC
Pure Direct
Yes
EZ Set EQ
Yes
Digital signal processing
up to 24-bit/192kHz
Mains voltage
110 240V, 5060Hz
Max. power consumption
300W
Standby power consumption
<0.5W
Audio Specifications
Channels
5.2
FTC Rated Output Power (20Hz 20kHz, 2 channels driven, 1% THD max, 8)
75W
Rated Power @ 8 (20Hz 20kHz, 2 channels driven, 0.5% THD max)
75 W RMS
Rated Power @ 4 (20Hz 20kHz, 2 channels driven, 0.5% THD max)
100 W RMS
Dimensions
Dimensions incl. feet and speaker terminals (H x W x D)
4.3" x 17.0" x 13.7" (109.2mm x 432.0mm x 347.6mm)
Weight
12lb (5.4kg)

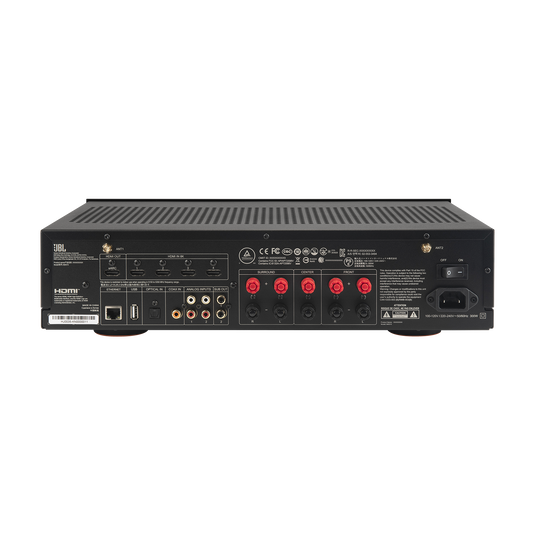

Control and Connection Specifications
HDMI Input/Output
4 / 1
Wi-Fi
Yes (2.4/5GHz)
Bluetooth receiver
Yes (v4.1, Low Energy)
Digital Audio Input
1 Coax, 1 Optical, 1 USB
Stereo analog input
2 single-ended RCA
Pre-Out (single ended RCA)
Subwoofer 1, Subwoofer 2
Ethernet
RJ45 Gigabit, WiFi Onboard
What's in The Box?
1x IR Remote
2x AAA batteries
1x Bluetooth antenna
1x Wi-Fi antenna
1x Power Cord
1x Quick-Start Guide
1x Safety Sheet
