JBL Stage 200P 10" 300W Powered Subwoofer - Black
Description:
10-inch (250mm) 300W Powered Subwoofer
Designed and engineered at our world-famous Acoustic Engineering Center of Excellence in Northridge, California, the Stage 200P is a 300W powered subwoofer perfectly matched with the entire Stage series and deliver the low frequency excitement that customers crave. This subwoofer features a front-firing high excursion 10-inch (250mm) Polycellulose low-frequency woofer with dual rear firing tuned ports that provides deep, powerful, signature JBL bass. A full complement of controls provides for easy system integration.

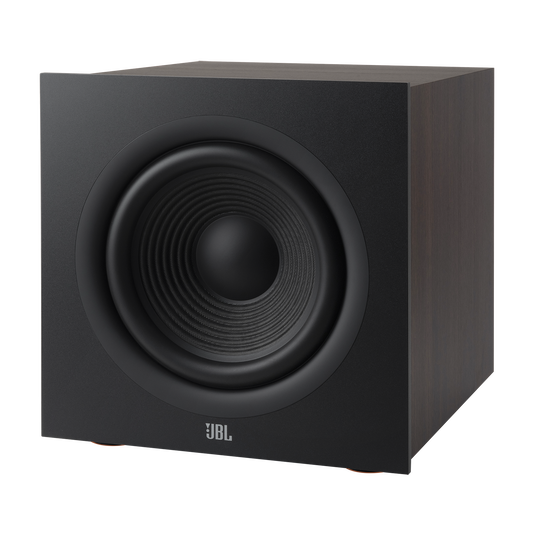

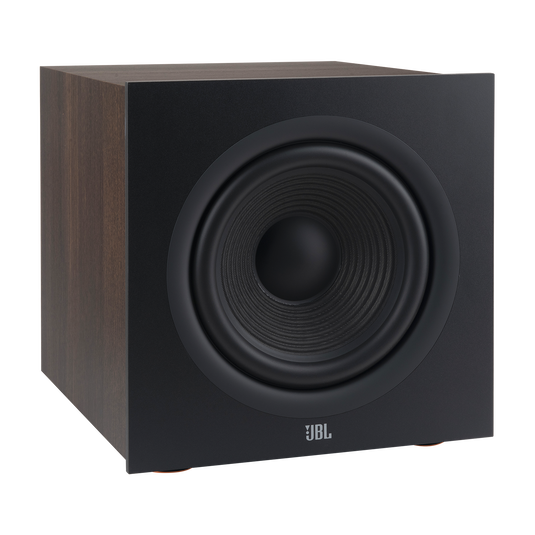

10-inch (250mm) Polycellulose Ribbed Cone Low-Frequency Woofer
Each speaker in the Stage 2 series features Polycellulose ribbed cone woofers. This pure pulp cone has a proprietary mix of other materials added to improve its rigidity and the ribs echo legendary JBL designs. These woofers produce deep, accurate, room filling bass.
150-Watts RMS Amplifier (300 Watts Peak Power)
The built-in high-performance 300-watt amplifier provides impactful and memorable sound quality deserving of the JBL name. The 200P can be placed anywhere in the room and connects to your AVR to create a stereo or multi-channel home theater system with impactful bass and unprecedented performance.
Features:

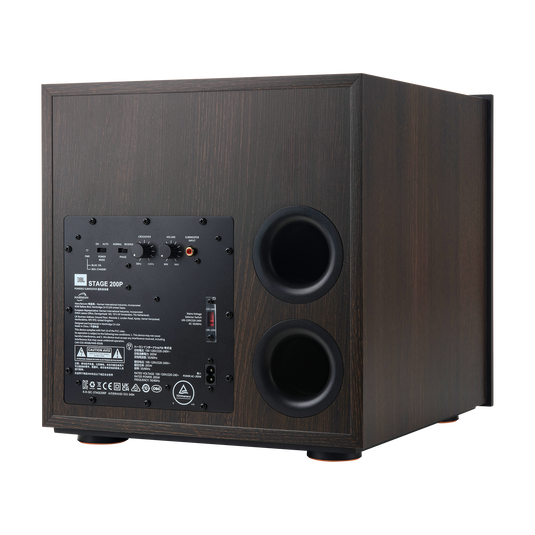

Rear-Mounted Volume, Crossover, Phase, and Power Controls
The rear mounted controls include a variable low-pass 50-150Hz crossover, so it can be dialed in precisely under the main channels and the power can remain on or be set to Auto to sae energy.
Line-Level LFE Input
The 200P profiles complete integration with the audio system via Line Level or LFE inputs. The LFE input bypasses the subwoofers internal low-pass crossover. It is used when youre connectin the subwoofer to the dedicated subwoofer output of a receiver/processor that has its own low-pass crossover network.

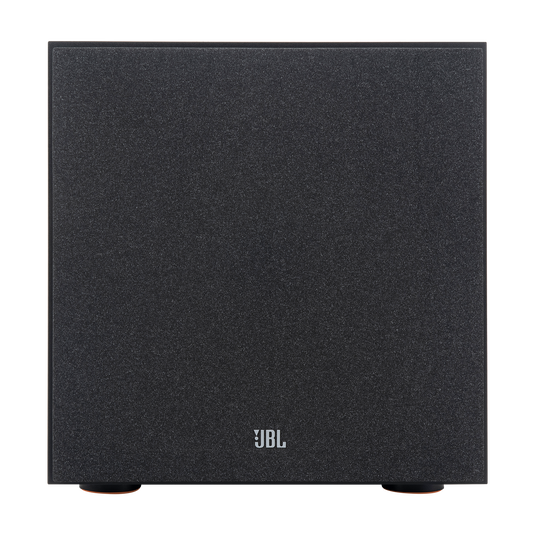

Magneticaaly Attached Grilles
Stage 2 has premium details throughout the line including magnetically attached grilles, unique trim rings and the floating front baffle design - upscale features not typically found on loudspeakers in this price range.
Adjustable Floor Spikes
The floor spikes on the 200P provide stability whn placing your speakers on a thick rug or plush carpeting. The carpet spikes can be manually screwed into each foot on the plinth of the speaker and are easliy adjustable from the top.
Specifications:
General Specifications
- Type
- Powered Subwoofer
- Low Frequency Driver
- 10-inch (250mm) Polycellulose Ribbed High Excursion
- Amplifier Power
- 150W RMS (300W Dynamic)
- Frequency Response ± 6dB
- 28Hz-150Hz
- Crossover Frequencies
- 50Hz-150Hz (variable) 24dB/octave
- Controls
- 35Hz-150Hz
- Controls
- Auto Power, Crossover, Level, Phase
- Inputs
- One (1) Line-Level LFE Input
- Enclosure Tuning
- Bass-Reflex via Dual Rear-Firing Tuned Ports
- Power Requirements
- 120V, 60Hz (US) 220-230V, 50/60Hz (EU)
- Power Consumption
- <0.5W (standby) / 205W/1.6A (max - 230V) / 205W/3.15A (max - 120V)
Dimensions
- Dimensions (HxWxD)
- 14.2in x 13.8in x 15.2in (361mm x 350mm x 385mm)
- Product Weight
- 31.8lbs. (14.4kg)
- Shipping Weight
- 40.3lbs. (18.3kg)
- Shipping Units of Measure
- Each
Whats in the box:
- 1 x 200P
- 1 x Power Cord
- 4 x Floor Spikes
- 1 x Speaker Grille
- 1 x Safety Sheet
- 1 x Quick-Start Guide
