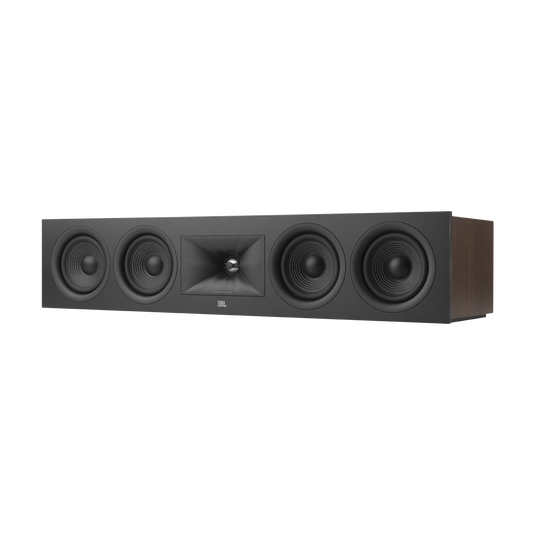

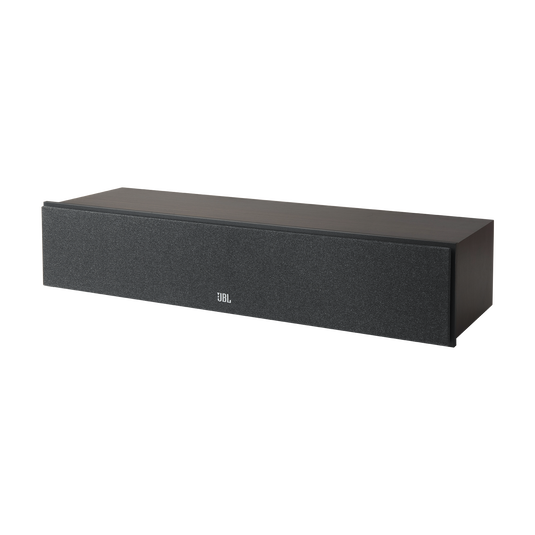

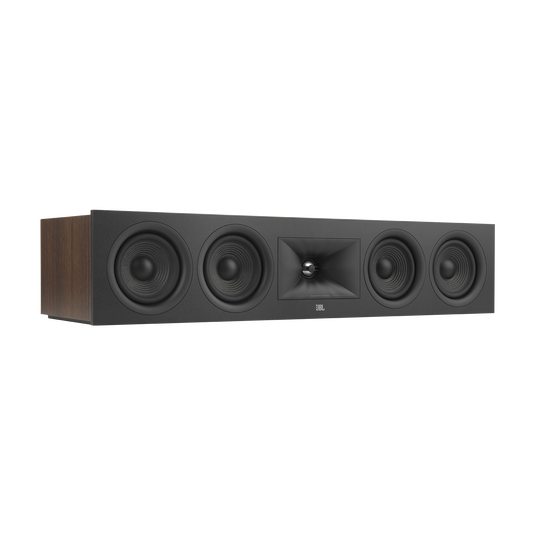

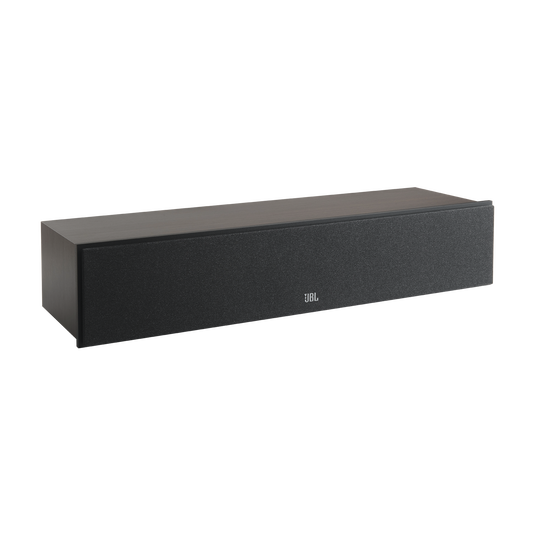

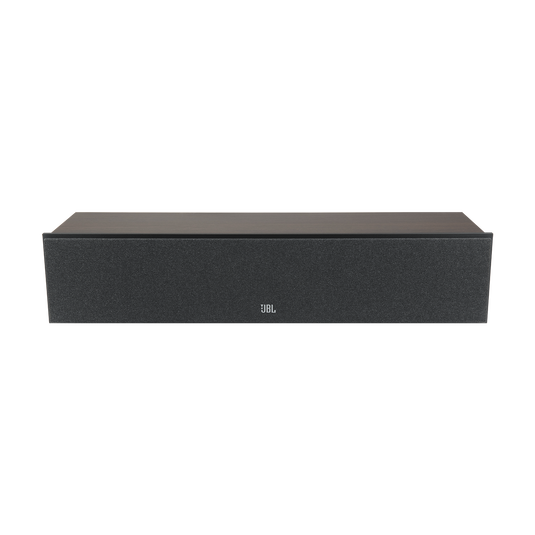

JBL Stage 245C 2.5-Way Quad 4.5-Inch Center Channel Loudspeaker - Each - Espresso
Description:
2.5-Way Quad 4.5-inch (114mm) Center Channel Loudspeaker
Designed and engineered at our world-famous Acoustic Engineering Center of Excellence in Northridge, California, the Stage 245C is a center channel loudspeaker and is voiced to blend seamlessly with Stage 2 floorstanding mains, bookshelf mains, or even In-wall mains. This loudspeaker features a 2.5-way way design with Next Generation patented High-Definition Imaging (HDI) waveguide geometry, 1-inch (25mm) Anodized Aluminum dome tweeter, and quad 4.5-inch (114mm) Polycellulose ribbed cone woofers that provides deep, signature JBL bass.
Quad 4.5-inch (114mm) Polycellulose Ribbed Cone Woofers
Each speaker in the Stage 2 series features Polycellulose ribbed cone woofers. This pure pulp cone has a proprietary mix of other materials added to improve its rigidity and the ribs echo legendary JBL designs. These woofers produce deep, accurate, room filling bass.
1-inch (25mm) Anodized Aluminum Tweeter in a Next Generation HDI Waveguide
Through intense research of previous waveguide designs, JBL has developed a new complex geometry that improves directivity, reduced diffraction, and an overall neutral frequency response both on and off axis. The Stage 2 HDI Horn is coupled to an anodized aluminum dome tweeter to enhance efficiency and dynamics.
Precision 2.5-Way Crossover
The 245C center channel model features a unique two and a half-way crossover design. This unique design crosses over the top woofer right below the tweeter's output, while the other woofer is crossed over at a lower frequency. This creates a dynamic mid-range but both woofers still extend as deep as they can go for powerful bass. This produces cohesive balanced output with a robust low end that can be both heard and felt.
Features:
- 5-Way Binding Posts: Sturdy 5-way binding posts providing the listener with their choice of high-quality connection. They also match the binding posts on the JBL MA ARVs, carrying the cohesive look throughout.
- Magnetically Attached Griles: Stage 2 has premium details throughout the line including magnetically attached grilles, unique trim rings and the floating front baffle design - upscale features not typically found on loudspeakers in this price range.
- Dual Rear Firing Tuned Port: Dual flared ports are featured on the 245C. This new flared design reduces the velocity of the air when exiting the speaker cabinet, eliminating any chuffing or coloration of output.
- Anti-Slip Pads: The 245C includes anti-slip pads to hold the speaker securely in place to minimize vibrations.
Specifications:
General Specifications
Type: Center Channel Loudspeaker System
Low Frequency Driver: Quad 4.5-inch (114mm) Polycellulose Ribbed Cone
High Frequency Driver: 1-inch (25mm) Anodized Aluminum
Waveguide: Next Generation HDI
Recommended Amplifier Power: 20-150W
Frequency Response ± 6dB: 55Hz-25kHz
Sensitivity @ 1M, 2.83V: 91dB
Nominal Impedance: 6 Ohms
Crossover Frequencies: 1.3kHz/2.0Khz
Enclosure Tuning: Bass Reflex via Dual Rear-Firing Tuned Ports
Finish: Espresso or Latte
Dimensions
Dimensions (HxWxD): 10.7in x 6.9in x 8.5in (272mm x 175mm x 217mm)
Product Weight: 26.4lbs. (12.0kg)
Shipping Weight: 32.4lbs. (14.7kg)
Shipping Units of Measure: Each
What's in the box:
- 1 x 245C
- 6 x Anti-Slip Pads
- 1 x Speaker Grille
- 1 x Safety Sheet
- 1 x Quick-Start Guide
