KCD1-102N Rocker Switch 250V 6A SPST ON OFF Illuminated Red ***LOCAL STOCK***
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details

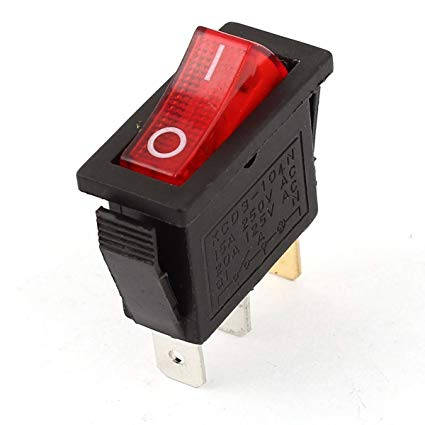

KCD1-102N Rocker Switch 250V 6A SPST ON OFF Illuminated Red
The KCD1-3-102N on-off illuminated miniature rocker switch with neon light offers a high switching current in a compact design. It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing. They have high quality for long life at heavy loads and industry-standard mounting dimensions. This rocker switch can be used in a variety of applications, like water dispenser and extension socket and so on.
Product description
Product Name:Rocker Switch
Connection Type:SPST
Position:On-Off

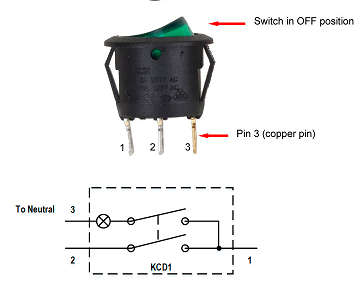

Terminals Number: 3
Rating Voltage/Current
AC 250V 6A
AC 125V 10A

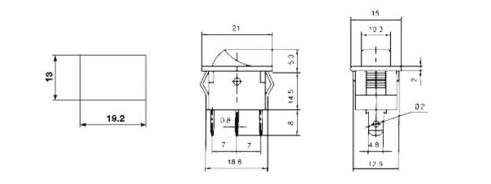

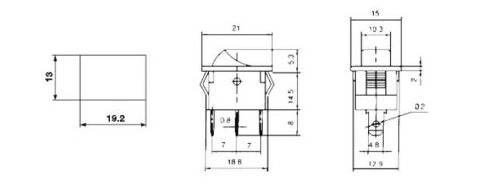

Total Size(Each):23mm
Mounted Size: 20mm
Contact Resistance: 50mΩ max
Insulation Resistance: 100mΩ min (500VDC)
This item is available in stock and is not drop shipped. This avoids delays, customs charges and extra VAT.
