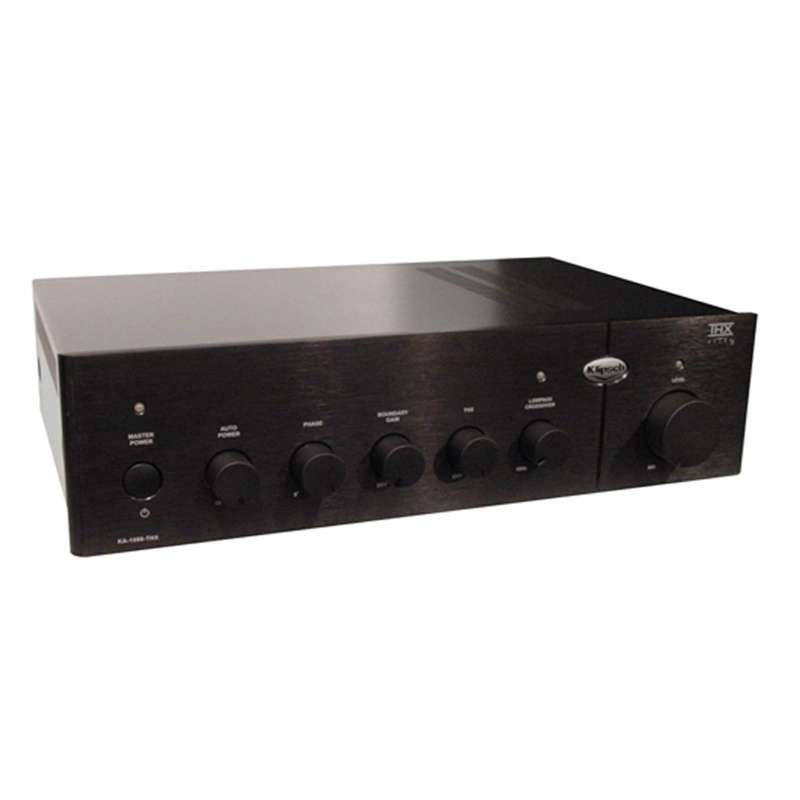

Klipsch KA-1000-THX Subwoofer Amplifier - Black
The KA-1000-THX subwoofer amplifier is the powerful driving force behind the Klipsch THX® Ultra2 system. This model offers rock-solid dependability under the most demanding conditions and allows listeners to experience all the power, detail and emotion of their favorite music and movies.
Designed exclusively for use with Klipsch KW-120-THX subwoofers, the KA-1000-THX is a THX Ultra2 certified monoblock power amplifier capable of 500 watts continuous output into 8 ohms (a single KW-120-THX subwoofer, for example) or 1,000 watts continuous into 4 ohms (two parallelconnected KW-120-THXs). It incorporates front-panel controls for level, crossover frequency, phase, and room-gain compensation. The crossover can be bypassed to feed the amplifier directly from the subwoofer output of an A/V preamplifier, processor, or receiver. Line-level input and output connections are via gold-plated left/right RCA jacks. The amplifier has two parallel-wired speaker outputs with NL2 SpeakOn jacks for correct, secure cable connections. Convenience features include a selectable signal-sensing auto-on/off circuit, a front-panel main power switch and LED status indicators for crossover and level control operation. Matching the look of Aragon home-theater components, the KA-1000-THX has a blackanodized, grained-aluminum front panel with aluminum control knobs. Premium electronic components are used throughout for sonic purity and reliability.
Features:
- 500 watts continuous into 8 ohms or 1,000 watts continuous into 4 ohms
- Black aluminum front panel and control knobs
- Crossover bypass switch
- Selectable signal-sensing auto-on/off circuit
- NL2 SpeakOn amplifier output jacks
SPECIFICATIONS
FREQUENCY RESPONSE: 20Hz-1kHz +0/-3dB
ENCLOSURE TYPE: Use only with KW-120-THX subwoofer enclosures (either one or two)
AMPLIFIER: High-Efficiency Class D
AMPLIFIER POWER: FTC Rated Power: 500W into 8 ohms, 1000W into 4 ohms, 20Hz-1kHz @ <1.5% THD
: Dynamic Power: 2050W into 8 ohms, 3025W into 4 ohms @ 5% THD
AUTO POWER ON: 2 second ON delay, 15 minute OFF delay
LOW PASS CROSSOVER: Continuously variable from 40-120Hz, 24dB/octave slope above 120Hz (non-THX mode)
INPUTS 2 Gold-plated RCA phono jacks
OUTPUTS: 2 Gold-plated RCA phono jacks (unfiltered) / 2 Speakon® NL2 jacks
PHASE: Continuously variable from 0 to 180 degrees
DIMENSIONS: 4.75" (12.1cm) H x 17.5" (44.5cm) W x 12.25" (31.1cm) D
WEIGHT: 27 lbs. (12.3kg)
FINISH: Black anodized aluminum
VOLTAGE: 110/120 VAC 60Hz
EXPORT VOLTAGE: 230 VAC 50/60Hz
FEATURES: THX On/Off, Boundary Gain Compensation On/Off
