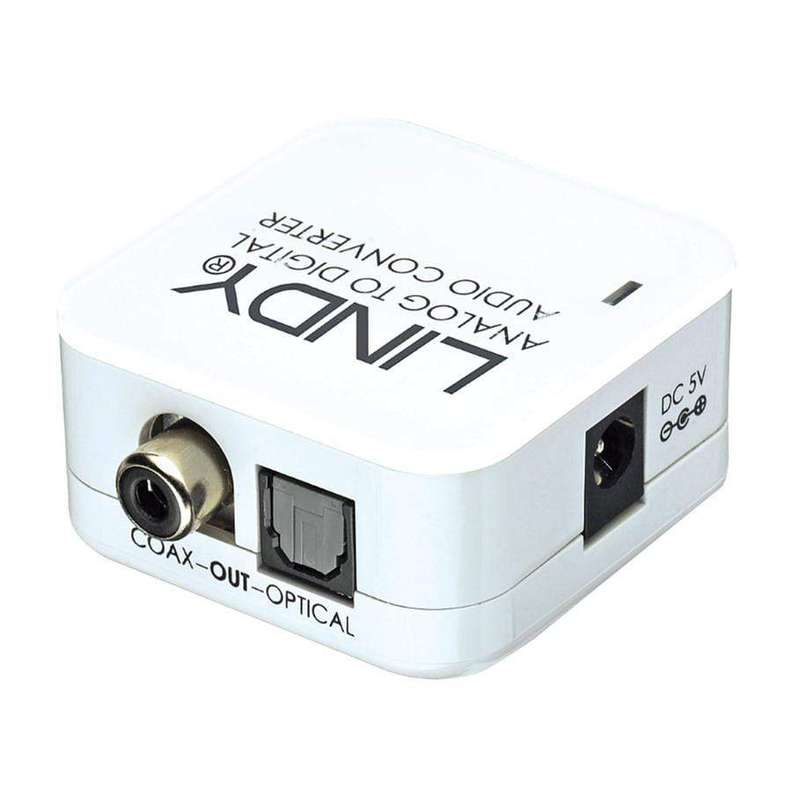

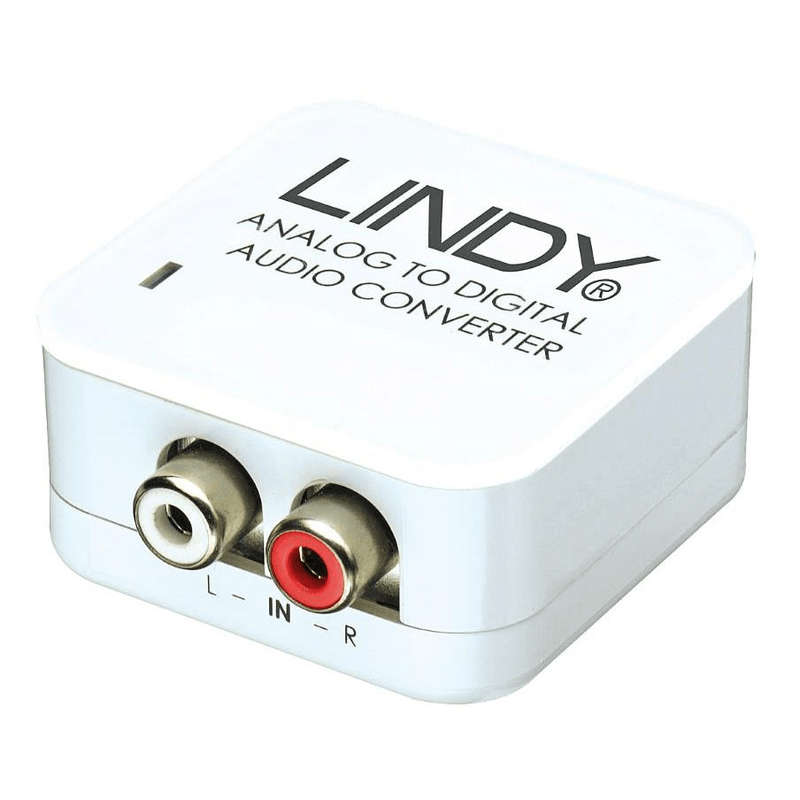

Lindy Analogue Stereo-SPDIF AUDIO CONVERTER White 70409

Discover 22,000+ In-Stock Products!

https://www.bobshop-/store/FirstShop

Brand New & Sealed with Manufacturer Warranty!

Available: Mon—Fri, 08:00—17:00 - Closed on weekends & public holidays

Description

• Convert analogue stereo audio signals to digital coaxial or optical
• Supports uncompressed digital LPCM signals
• Digital Coaxial and Toslink (Optical) outputs for a dual connectivity and splitting solution
• Minimalistic, compact design and seamless functionality
• 2 year warranty

The Lindy Stereo to SPDIF ADC Converter allows the user to easily convert analogue stereo audio signals to digital coaxial and Toslink (optical) output signals, for a high quality audio experience with movies, games and music.

With L/R Input connections, and both Optical and Digital Coaxial output ports, that can be connected individually or consecutively to ensure seamless compatibility, this audio converter is a perfect solution for connecting DVD Players, VCRs and older generation games consoles to home theatre receivers or soundbars, with no loss in quality for a superior surround-sound audio experience that enhances the impact of  video or audio content. The separate dual output connectors can also work as a splitter to two separate audio receivers.

The converters compact design ensures the device can be integrated into current installations or hidden away, while the digital connection switch to determine which input is active and plug and play functionality ensures fuss-free connectivity and use.

Technical details

Specifications

• Video Interface: -
• Interface Standard: -
• Supported Bandwidth: -
• Maximum Resolution: -
• HDCP Support: -
• Audio Interface: RCA (Phono)
• Chipset:
  • MIC-SN75179B+
  • MIC-74HC04
• Supported Audio: LPCM
• Maximum Supported Audio Sample Rate: 48kHz
• Input Impedance: -
• Output Impedance: -
• Output Voltage: -
• Frequency Response: ±0.5dB
• Signal to Noise Ratio: 90 dB
• Special Features: Output Signal Switch

Connectors

• Input: L/R Analogue (Phono)
• Output:
  • Toslink (Optical)
  • SPDIF (Coaxial)
• Power: 5.5/2.1mm DC Socket

Physical Properties

• Dimensions (approx.) WxDxH: 46x46x23.5mm (1.81x1.81x0.93in)
• Housing Material: Plastic
• Net Weight: 0.1kg (0.22lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 20~90% RH (non-condensing)
• Power Requirements: 5VDC 1.2A
• Colour: White

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 155x60x120mm (6.1x2.36x4.72in)
• Gross Weight: 0.24kg (0.53lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS and REACH

Package Content

• Analogue to Digital Audio Converter
• Multi-Country Power Supply (EU, UK, US & AUS)
• Instruction Leaflet for Multi Country Power Adaptor
• LINDY Manual

Purchasing Information

• No.: 70409
• EAN: 4002888704090
