LuxPower 10KVA / 10 000W Hybrid Inverter 48V (Parallel)

LuxPower 10KVA Hybrid Inverter | 48V Solar & Battery Inverter | 10kW EPS Output | Parallel-Ready

Product Description:

Reliable and Versatile Hybrid Inverter for Solar & Backup Power

The LuxPower 10KVA Hybrid Inverter (LXP 10K) is a powerful and efficient single-phase inverter designed for on-grid, off-grid, and backup power solutions. With advanced battery management, seamless switching, and intelligent energy optimization, it ensures a stable and efficient power supply for residential and commercial applications.

Key Features:

High Performance Battery Inverter

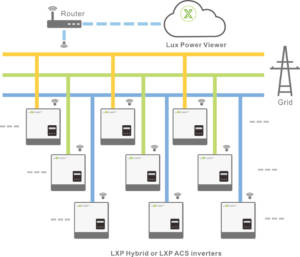

• Supports up to 120kW Parallel Connection Expandable for large-scale energy needs (up to 9 inverters).
• Advanced Battery Management Works with low-voltage (48V) and high-voltage batteries.
• Strong UPS Function Max 250A discharge current for instant power supply.
• Rapid Switching (<10ms) Ensures uninterrupted power in case of outages.

Optimized Energy Efficiency

• 97.2% European Efficiency High conversion efficiency for optimal energy savings.
• 99.9% MPPT Efficiency Maximized solar energy utilization.
• Multiple Working Modes:

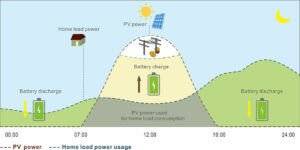

  • Self-Consumption Mode Prioritizes solar power for household use, charges batteries, and exports excess energy to the grid.
  • Force Charge/Discharge Mode Allows users to schedule battery charging/discharging times.
  • Charge-First Mode Prioritizes battery charging before supplying household loads and feeding into the grid.

Flexible Solar & Generator Integration

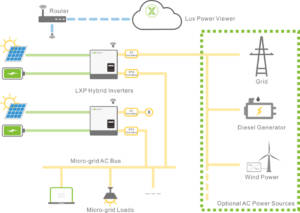

• Compatible with AC-Coupled Systems Easily integrates with existing solar installations.
• Independent Generator Input Ensures reliable backup power when needed.
• Expandable Battery Bank Support Connect to a single large battery bank or multiple battery groups.

Smart Monitoring & Control

• Color LCD with Touchscreen Interface User-friendly display for real-time monitoring.
• Programmable & Scheduled Operations Optimize power usage based on energy demand.
• IP65 Rating Durable design for indoor & outdoor installations.

Technical Specifications:

• Nominal Battery Voltage: 48V
• Battery Voltage Range: 40-60V
• Max Charge/Discharge Current: 210A
• Maximum Charge/Discharge Power: 10,000W
• MPPT Charge Controller:
  • Number of MPPTs: 3 (2/1/1)
  • Max DC Input per MPPT: 12,000W / 7,000W / 7,000W
  • MPPT Voltage Range: 210V 500V
  • Max DC Input Voltage: 600V
• AC Passthrough Current: 41.6A
• UPS Max Output Power: 10,000W
• Peak Power:
  • 14kW for 10 minutes
  • 16kW for 5 minutes
  • 20kW for 500ms
• Dimensions: 65cm × 44cm × 22cm
• Weight: 40kg

What's in the Box?

• 1 × LuxPower 10KVA Hybrid Inverter
• 1 × User Manual

Warranty & Installation Requirements:

• Optional 10-Year Warranty Available
• Installation must be performed by a qualified electrician with a valid registration.
• Certificate of Compliance (COC) required for warranty validation.
• Installation must follow SANS 10142 standards.
• Warranty claims require installation photos, a valid COC, and proof of a qualified installer.
