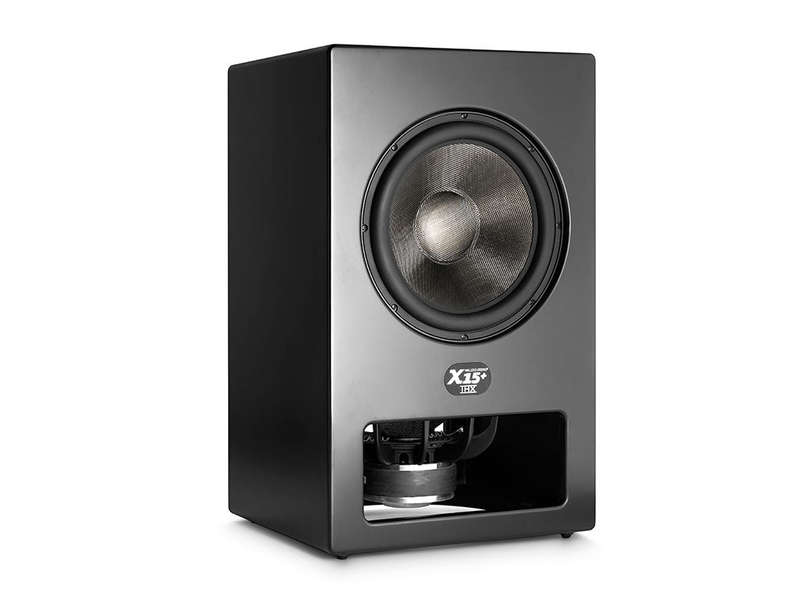

M&K Sound X15+ THX & Push-Pull Subwoofer - Black

M&K Sound X15+ THX & Push-Pull Subwoofer - Black

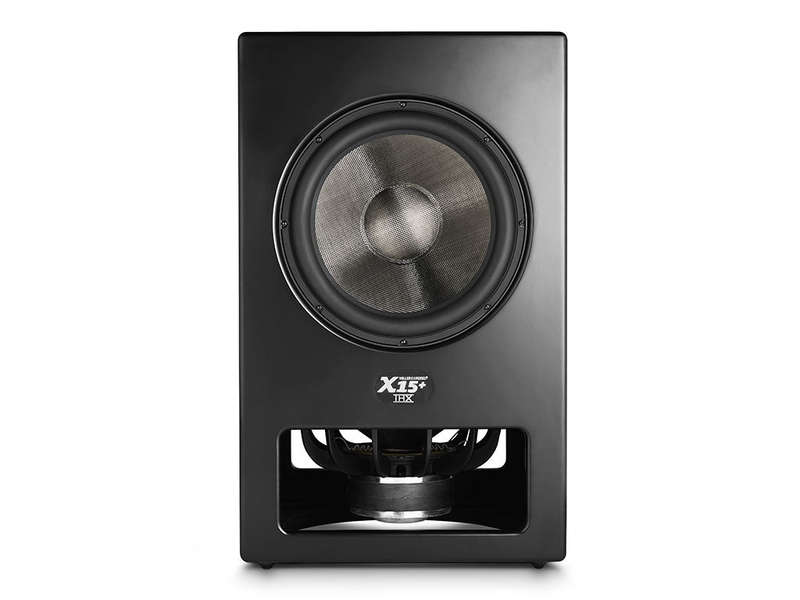

New Carbon Fibre Woofer Cones have been developed for all models with ultra-high strength and rigidity to accommodate the added power and excursion of the new X+ Series. M&K Sound's proprietary CNC-machined, extruded aluminium Distortion Killer Shorting Rings also guarantee absolute control and distortion-free, exemplary performance in all settings.

M&K Sound's iconic Push-Pull subwoofer architecture and "reversed double driver" non-isobaric configuration mean that both drivers in the cabinet are 'exposed' to room air. Consequently, and like the X-Series before, the X+ Series models are effectively two subwoofers in one cabinet enabling a further associated reduction in distortion. This is made possible by having one inverted driver in relation to the other cancelling non-linearities to produce totally symmetric waveforms.

The X15+, X12+ and X10+ all feature full 25mm MDF construction and bracing for negligible panel vibrations or cabinet resonances, and increased venting at the base of the woofers mitigates distortion due to air turbulence. These milled cavities also act as convenient carrying handles for installation efficiency

M&K's function and form co-exsist in harmony

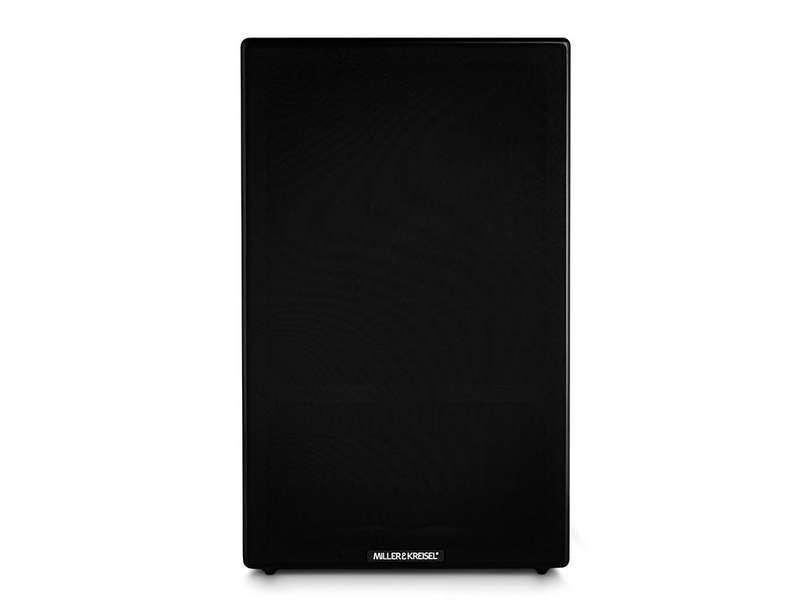

Cosmetic makeovers for the X+ Series arrive in the form of recessed front baffles and convenient invisible magnetic grille attachment mechanisms. Harmonizing with the bold but Scandi-cool looks of the M&K S150 and S300 speakers, the new subwoofers offer cleaner lines and more discreet curved edges to complement living spaces or dedicated home cinema rooms

Sound
Frequency Response: 16-200 Hz (Average Response in Room +/- 3 dB)
Frequency Roll Off THX EQ: 16 Hz (-6 dB 20 Hz Nearfield)
Frequency Roll Off Anechoic EQ: 16 Hz (-6 dB 20 Hz Nearfield)
Variable Low Pass Filter: 40-125 Hz Continuesly Variable / 4th Order
Loss Pass Filter Bypass: 40-125 Hz No Low Pass
Fixed 80 Hz Filter Yes (Equivalent to THX 80Hz Ref Low Pass)
Phase Control: 0 180 deg Continuesly Variable

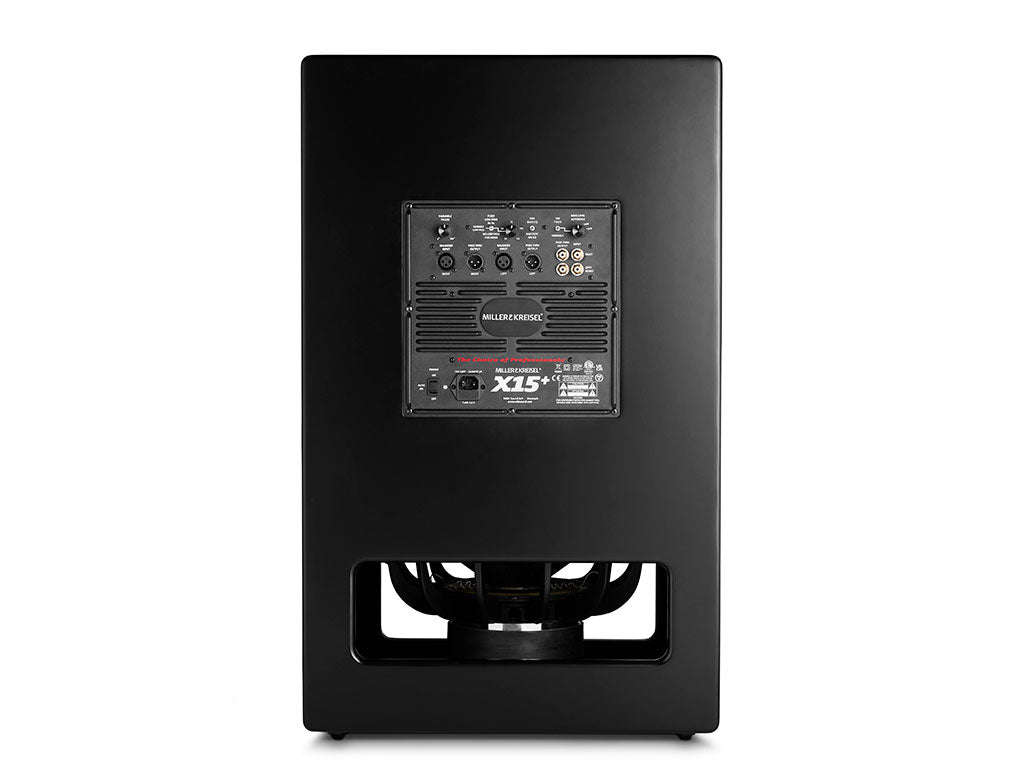

Line level input/output: 2 x RCA phono Left / Right input / output
Line level input/output: 2 x XLR Left / Right Input / output
Amplifier type: Analog input / switch mode power output
Drive unit: 2 x 15 Extra Long Throw
System Principle: Push Pull Sealed enclosure
Amplifier Power output RMS: 700 watt 0.5% THD at 300W into 4 ohms
Amplifier Power output Peak: 1400 watt
Standby Power Consumption: 0.5 watt 120W Average, 800W Max
Headroom Limiter Maximizer: Yes (Dynamic driver excursion control)
Auto Power detect on/off: Yes

Colors
Finish: Satin Black

Dimensions
Dimensions H x W x D 32.8 x 20.3 x 18.1 in / 83.3 x 51.5 x 46.0 cm
Weight: Netto 134.7 lbs / 61.1 kg
Manual No
Manual Yes Gloves, US/EU Power cords, Rubber Feet
